Trailing Arm

Part 1 Of 2:




Part 2 Of 2:

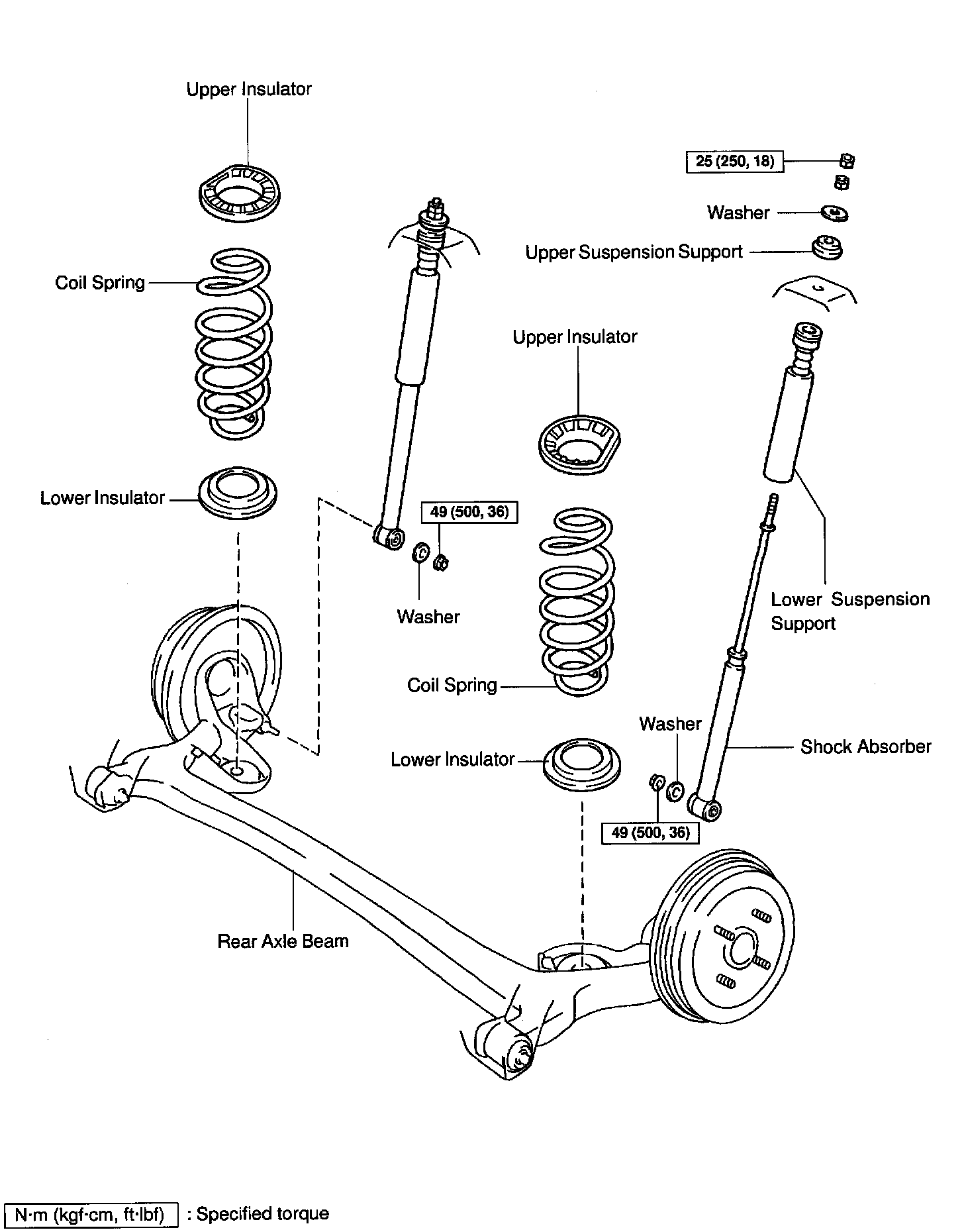

COIL SPRING AND REAR SHOCK ABSORBER REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
