System Diagram

ENGINE UNIT REPLACEMENT W/ RELATED COMPONENTS

Part 1 Of 5:

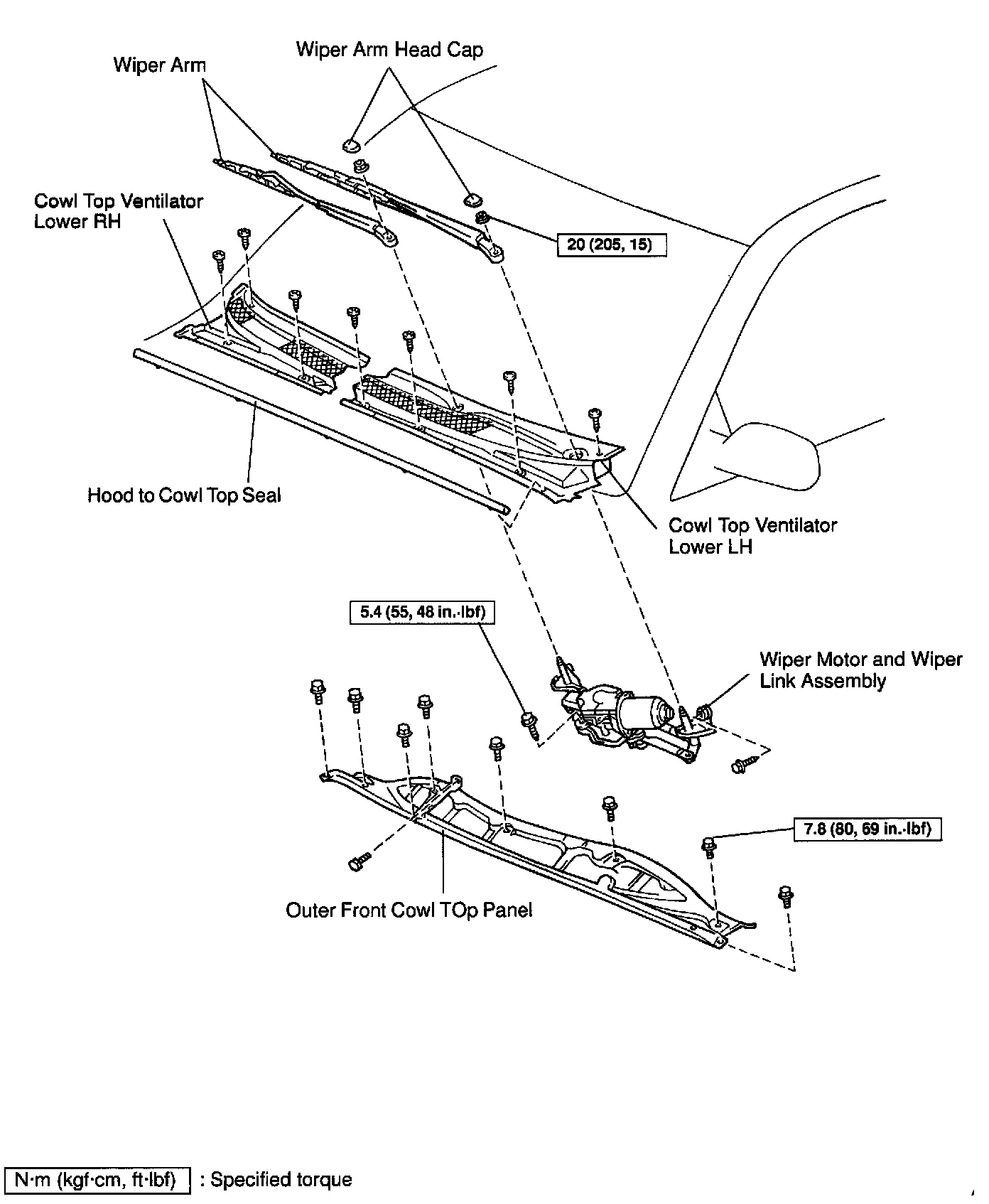

Part 1 of 5

Part 2 Of 5:

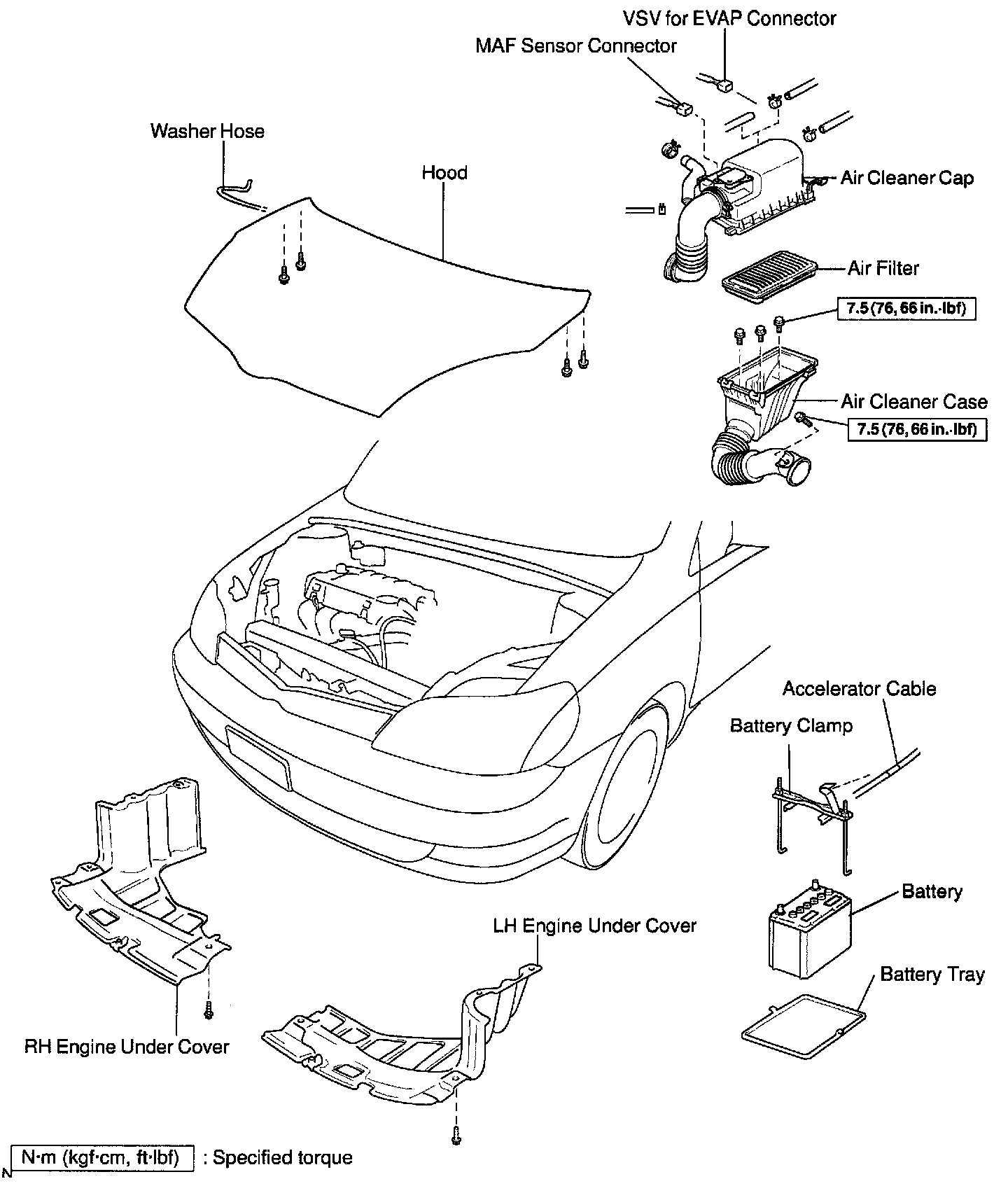

Part 2 of 5

Part 3 Of 5:

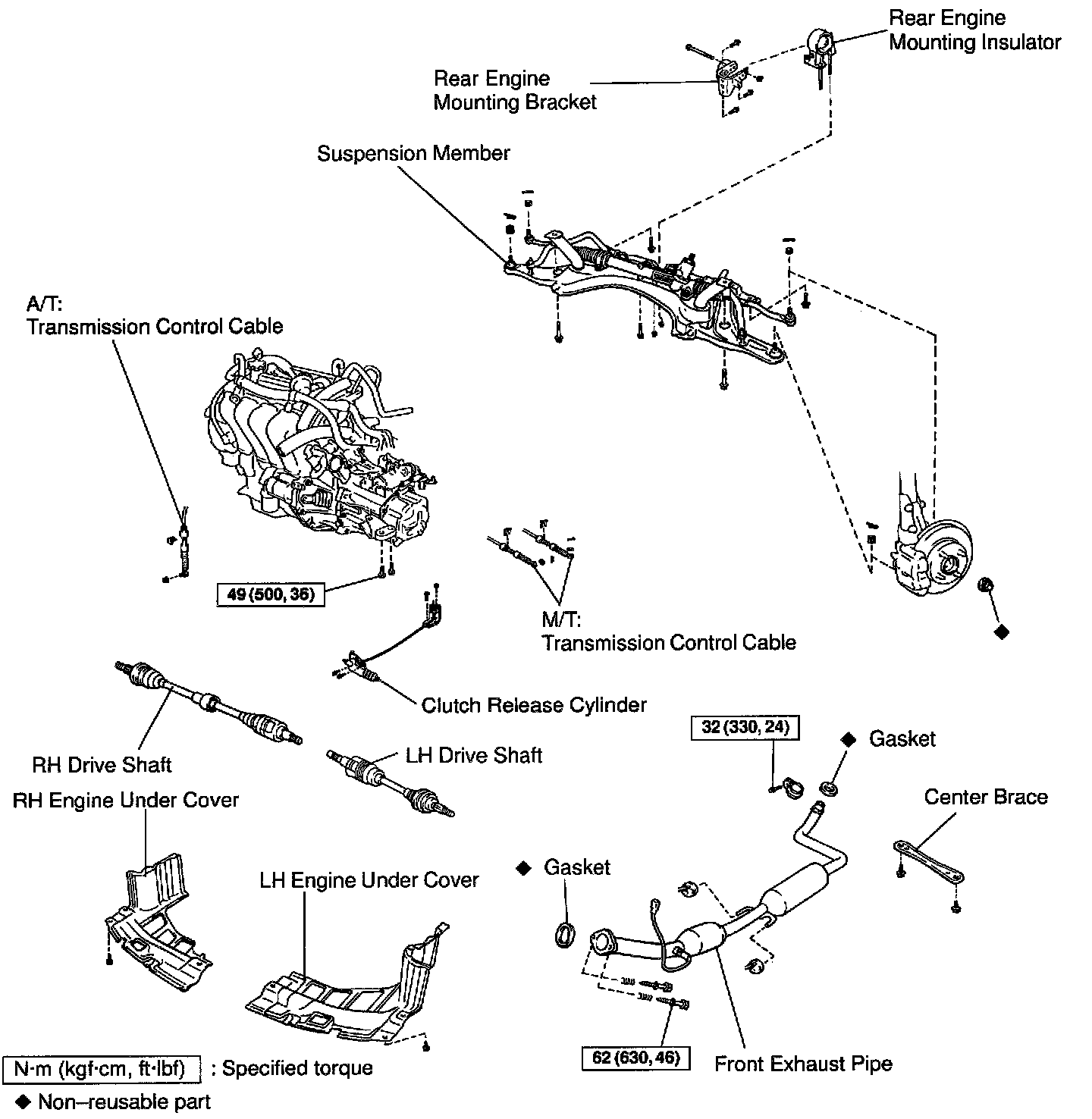

Part 3 of 5

Part 4 Of 5:

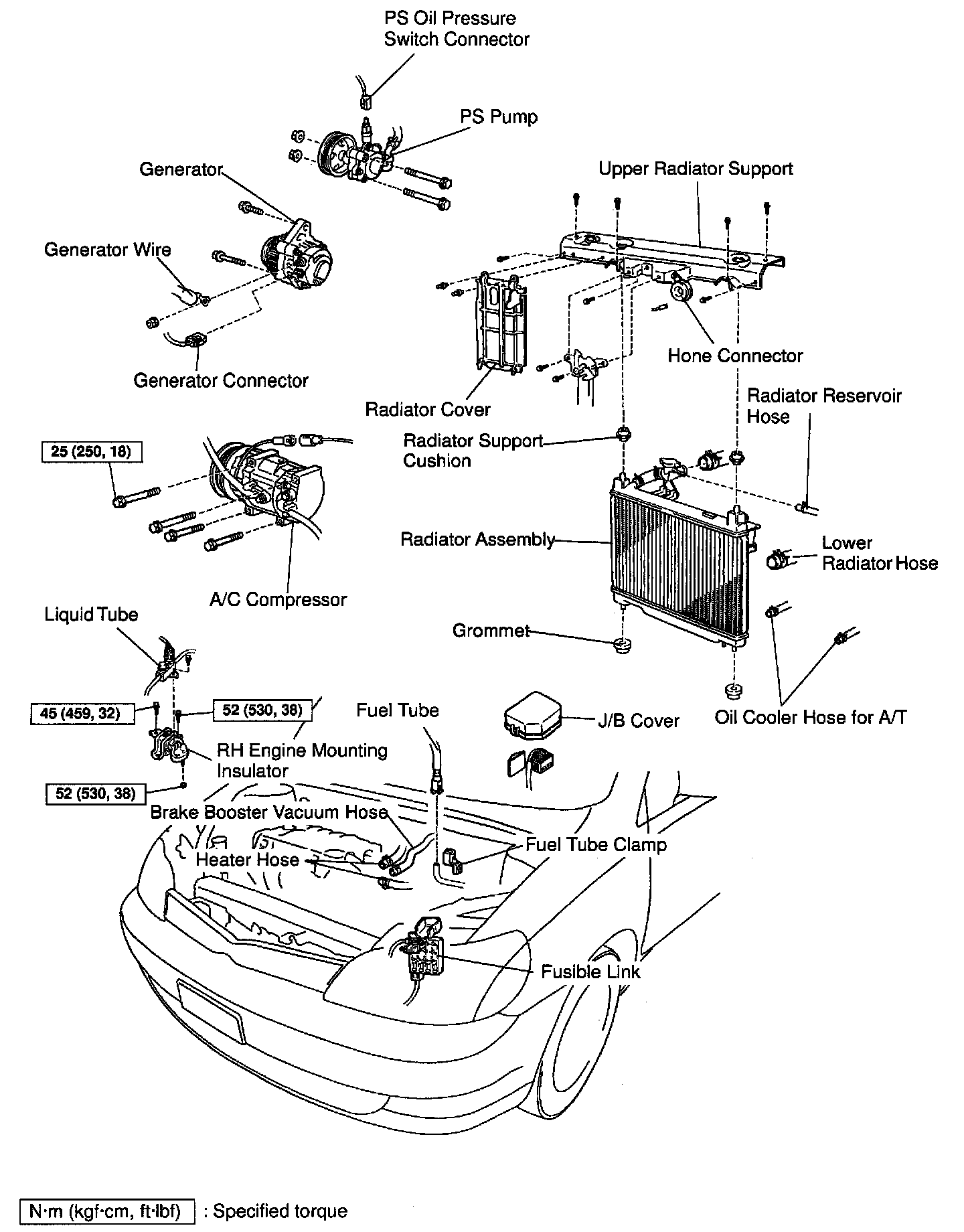

Part 4 of 5

Part 5 Of 5:

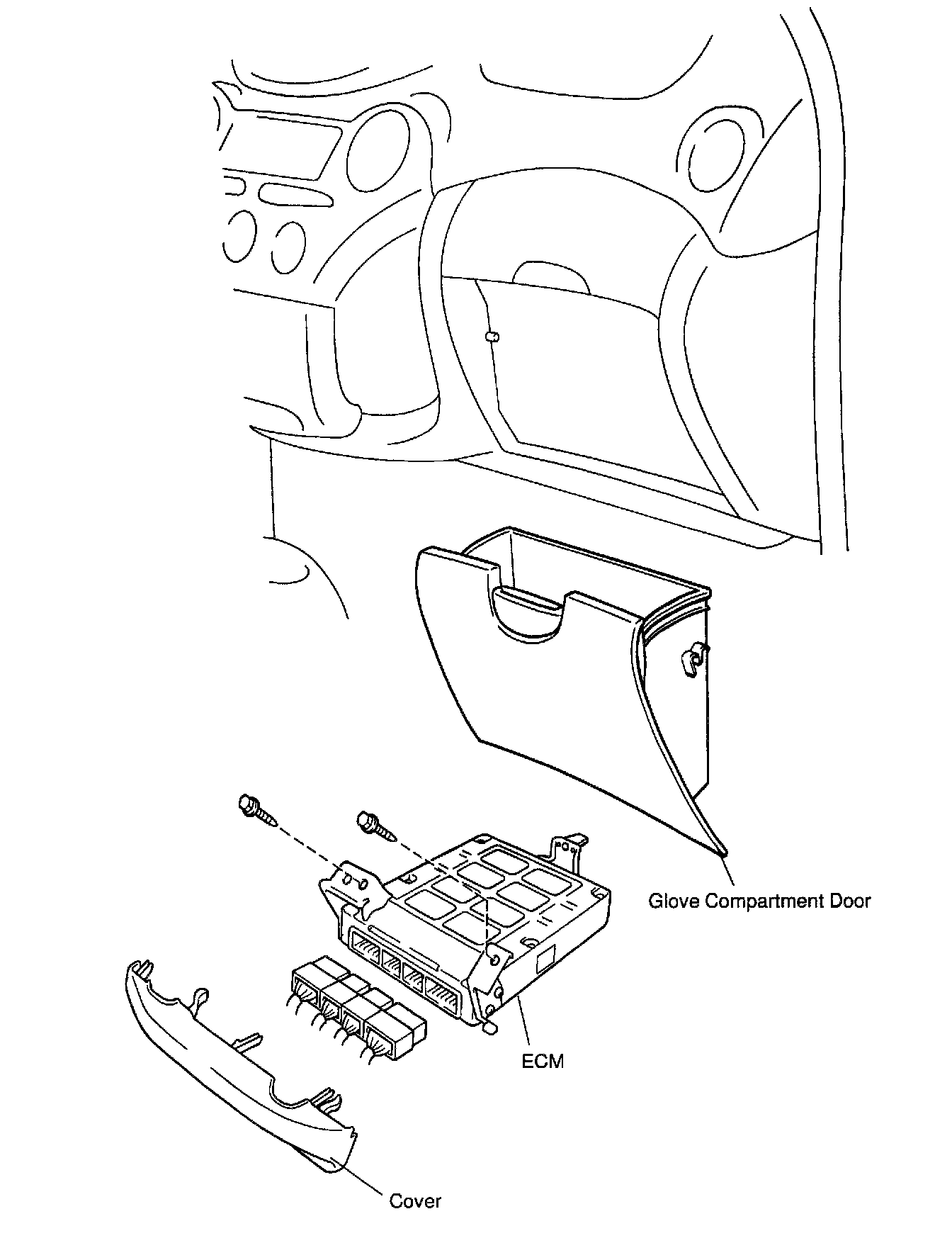

Part 5 of 5
