Cylinder Head Assembly

CYLINDER HEAD REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

Part 1 Of 4:

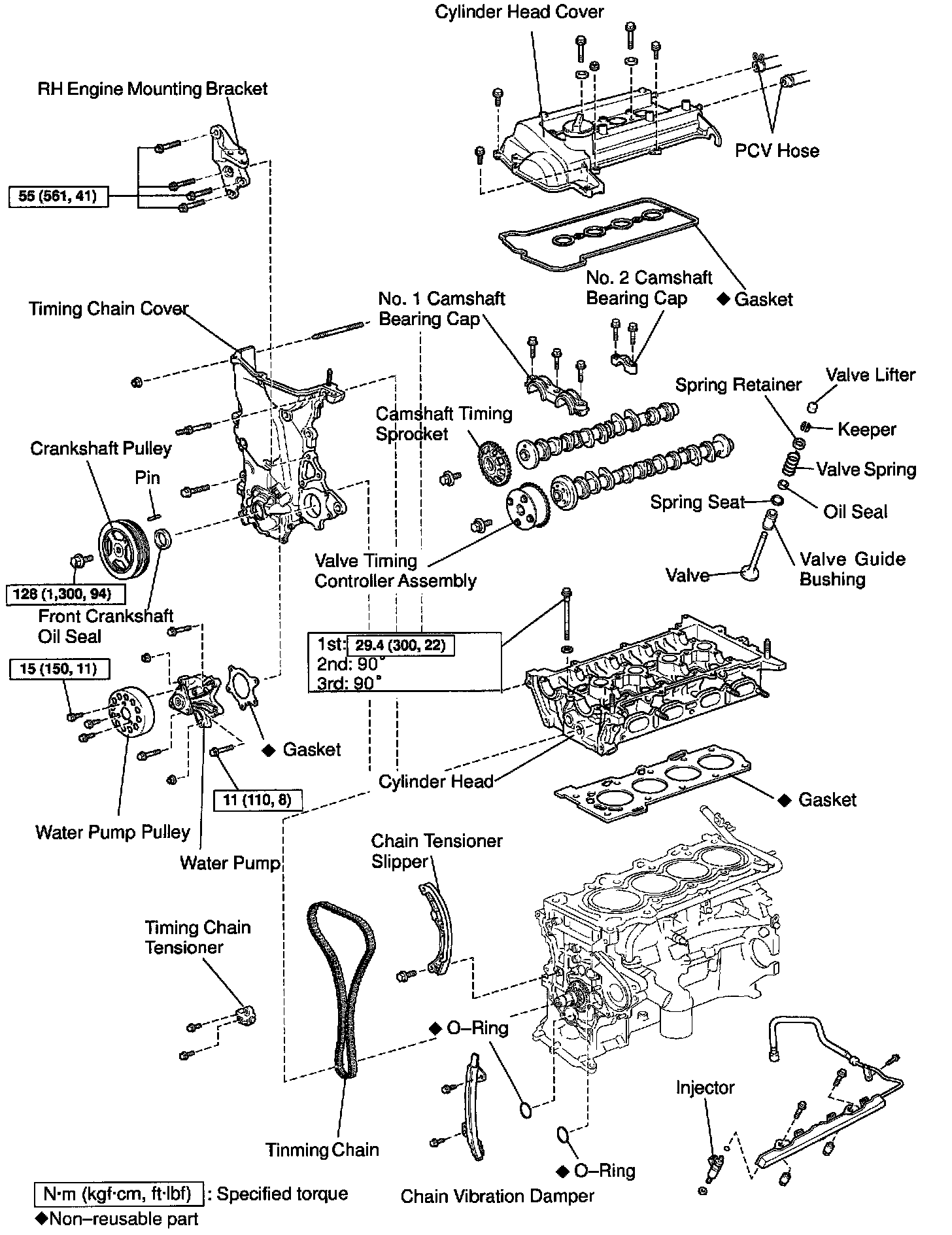

Part 1 of 4

Part 2 Of 4:

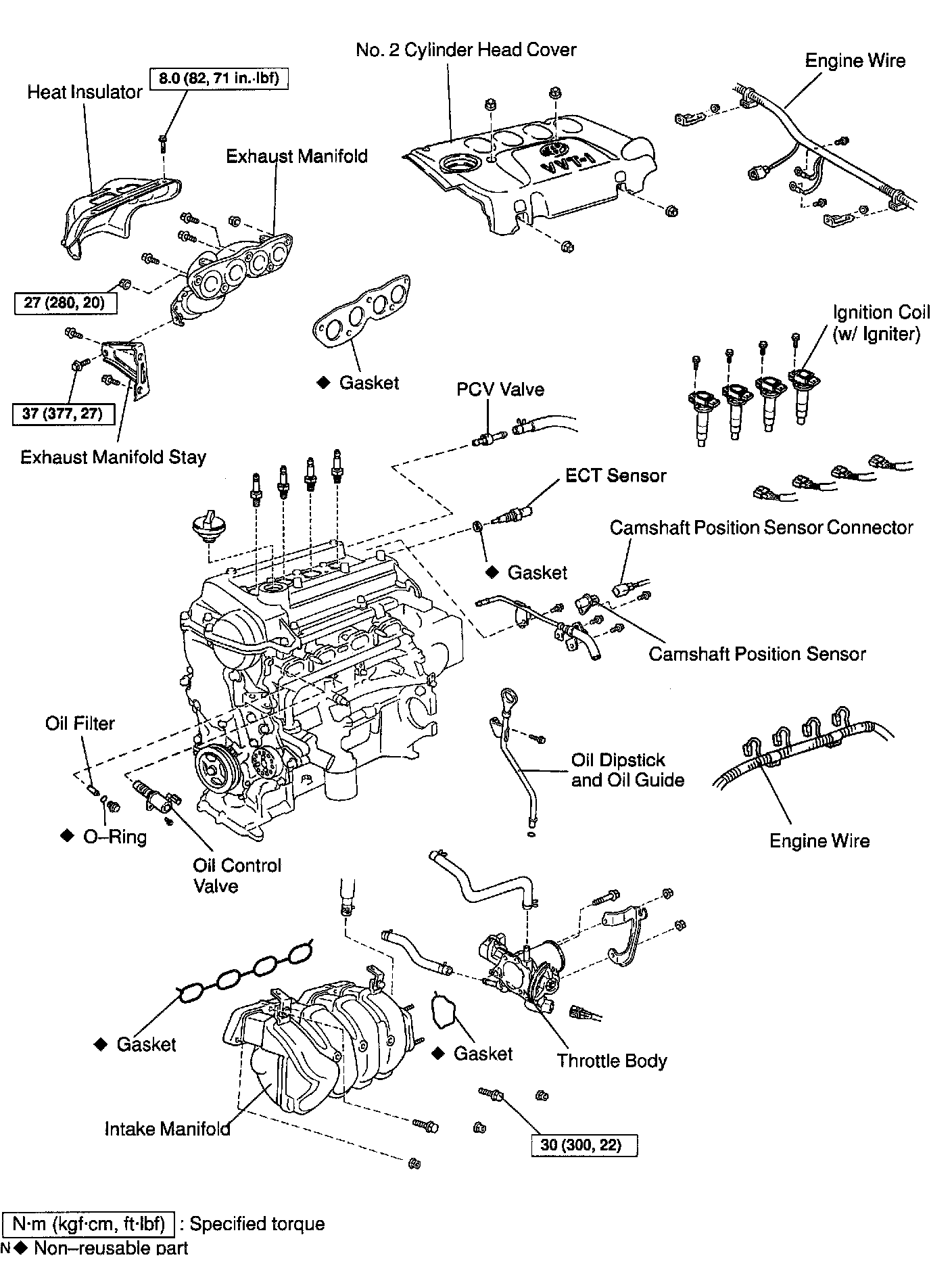

Part 2 of 4

Part 3 Of 4:

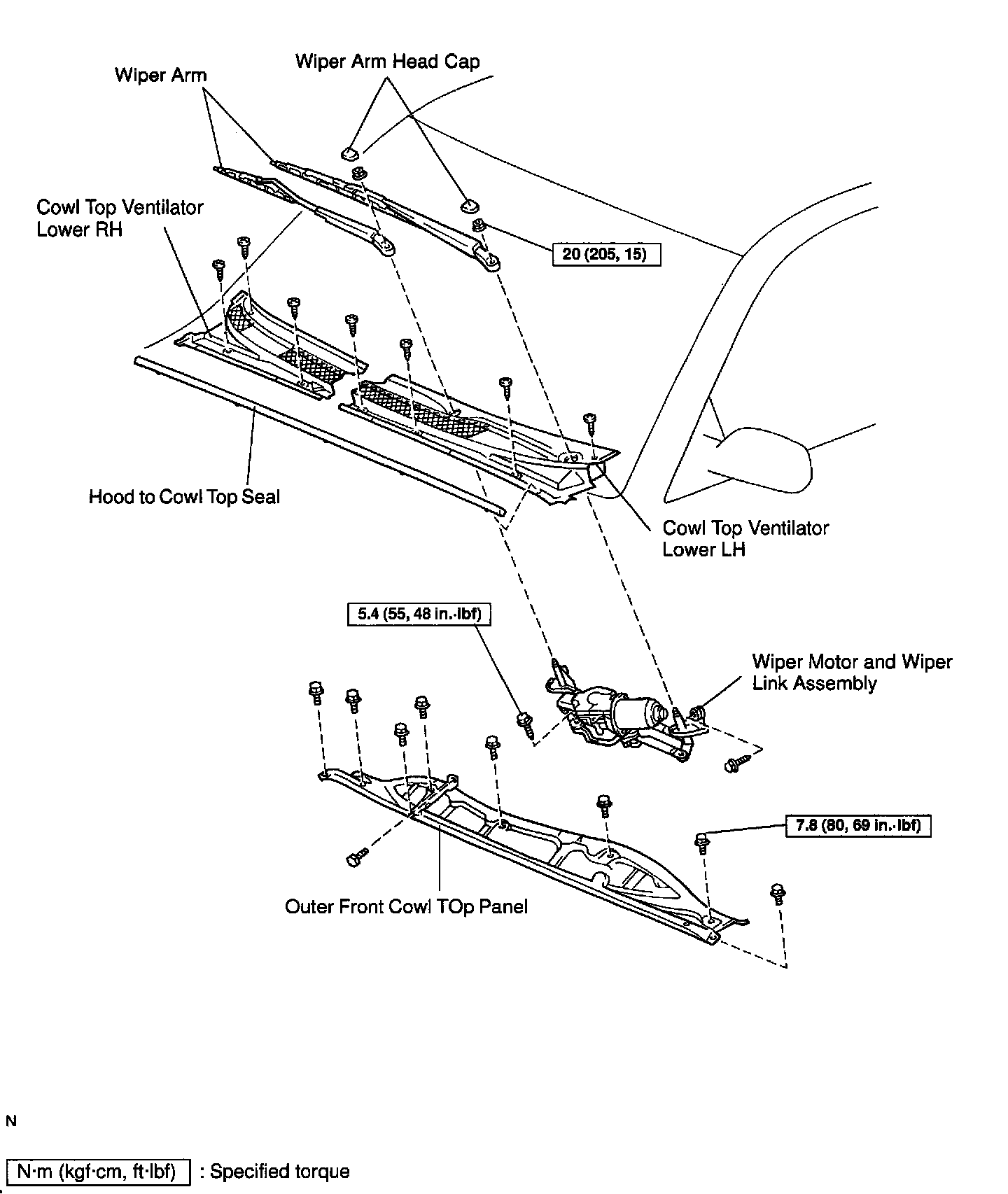

Part 3 of 4

Part 4 Of 4:

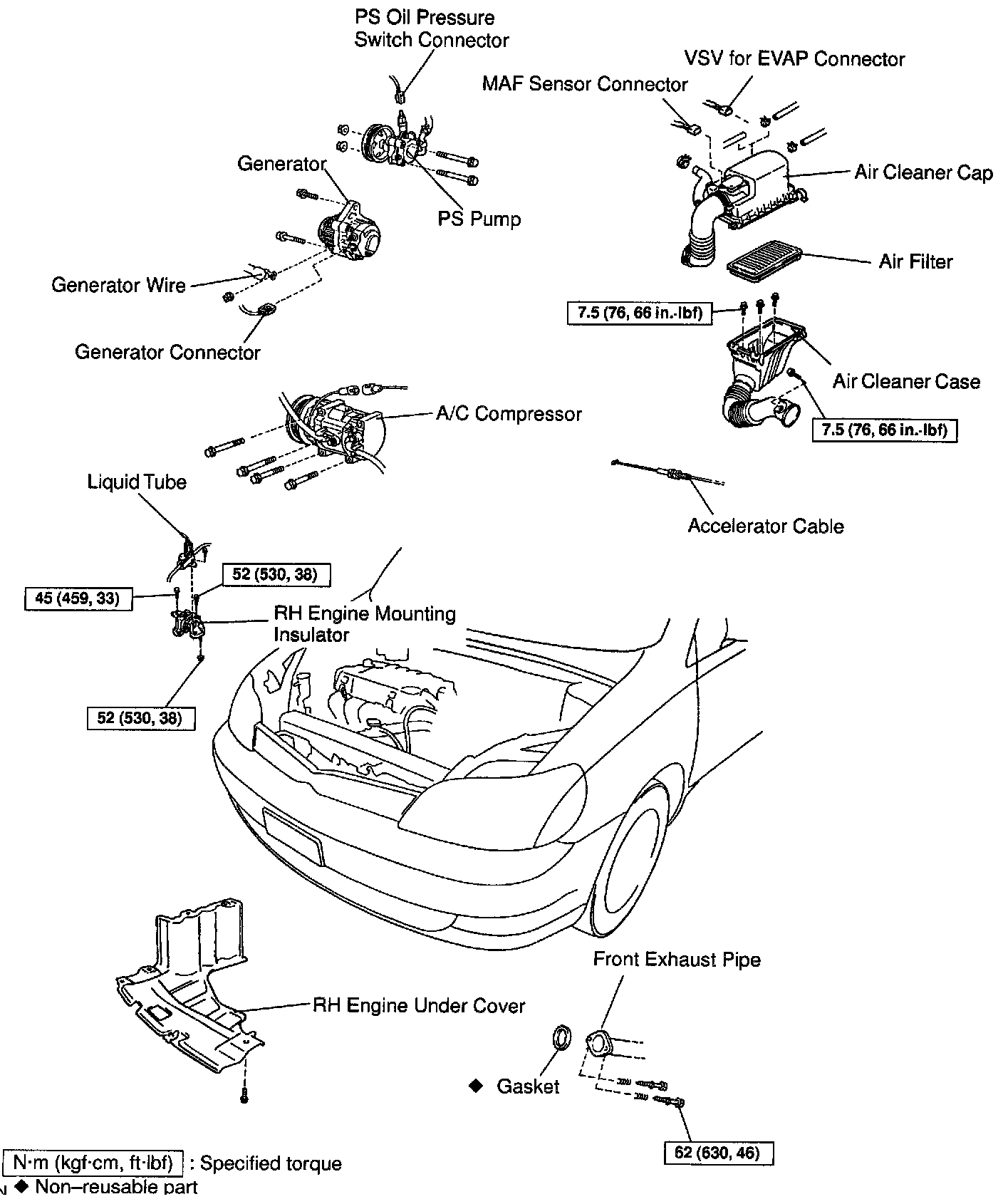

Part 4 of 4
