Cylinder Block Assembly

CYLINDER BLOCK OVERHAUL W/ RELATED COMPONENTS

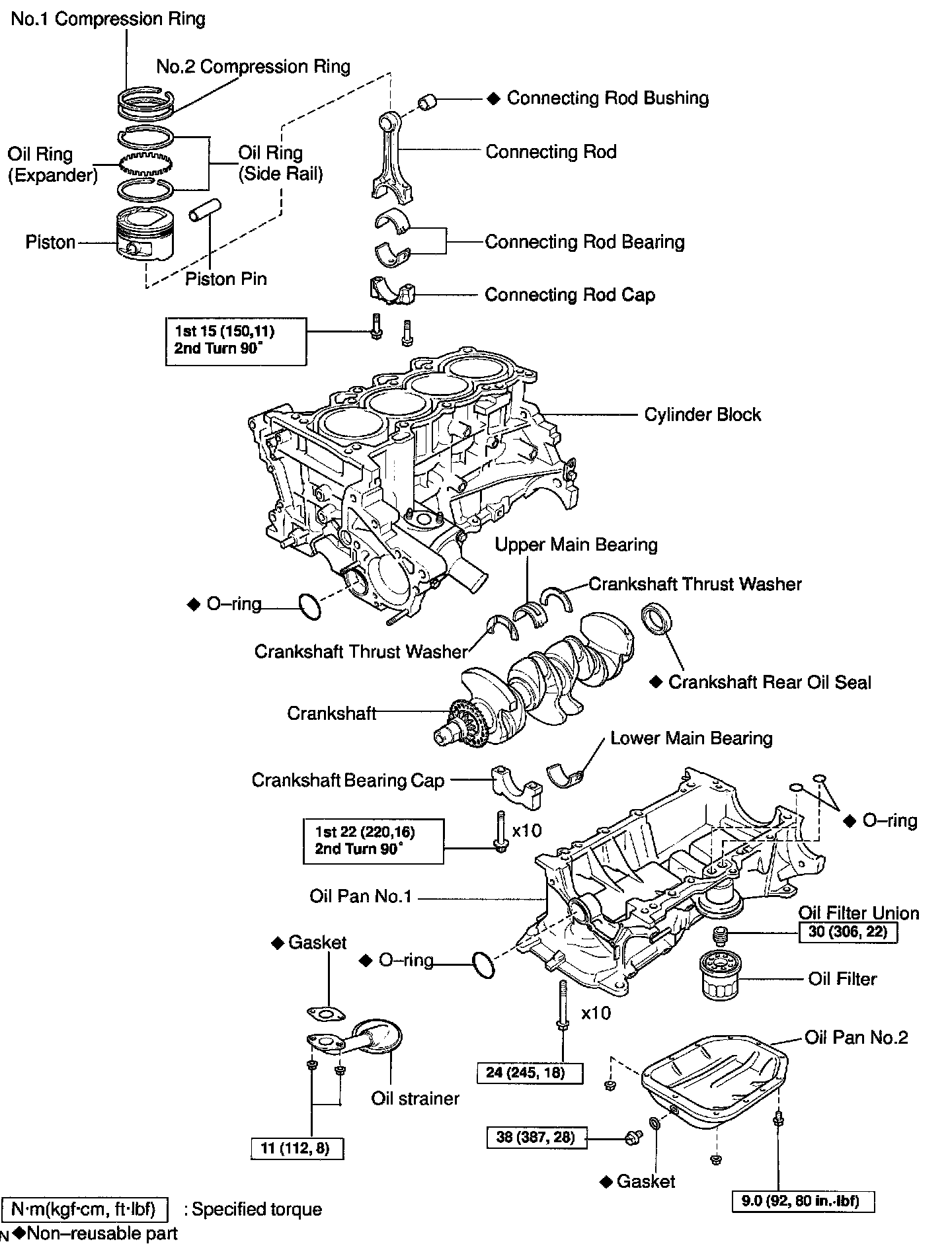

Part 1 Of 2:





Part 1 of 2

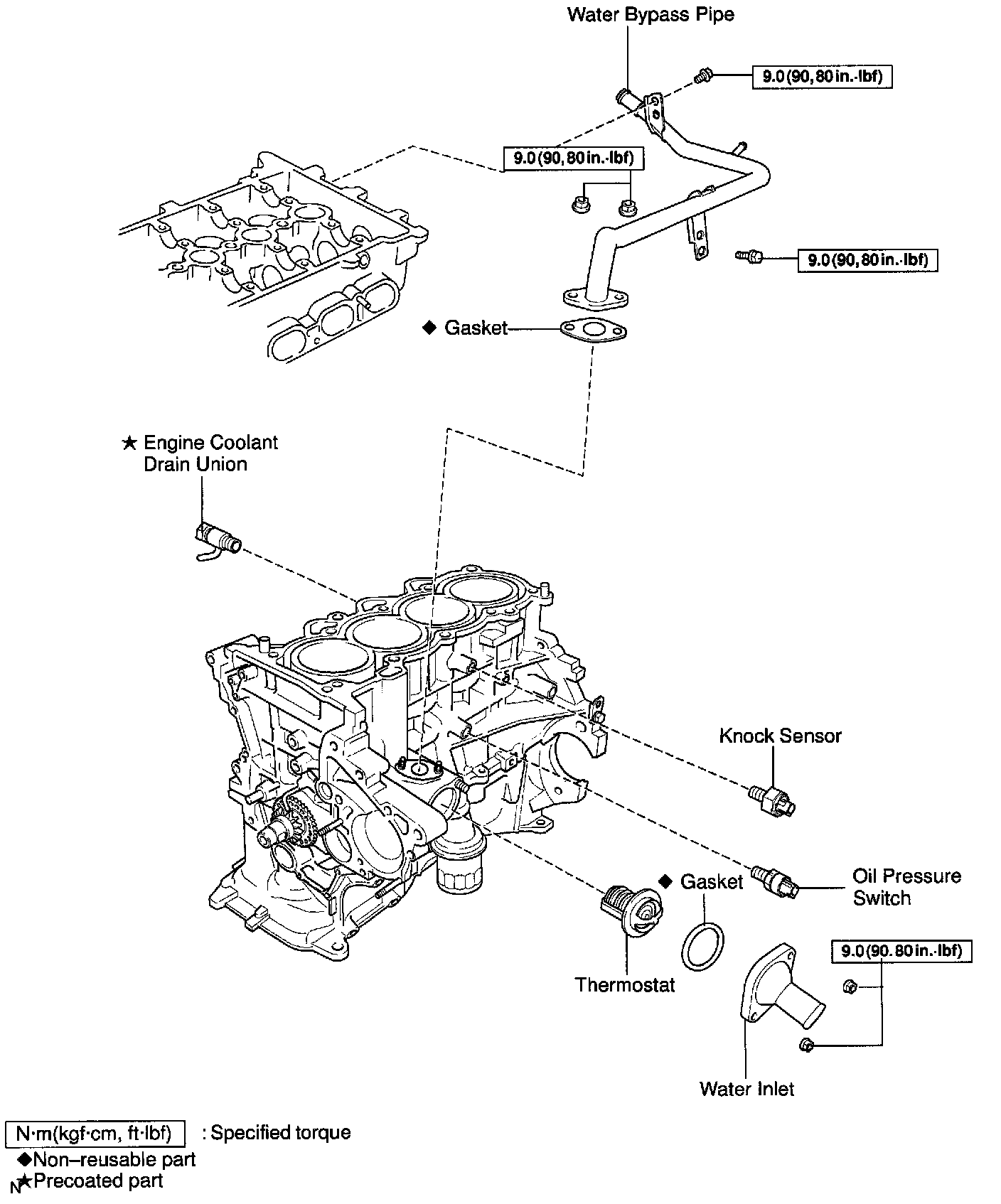

Part 2 Of 2:





Part 2 of 2
