With Tilt Column

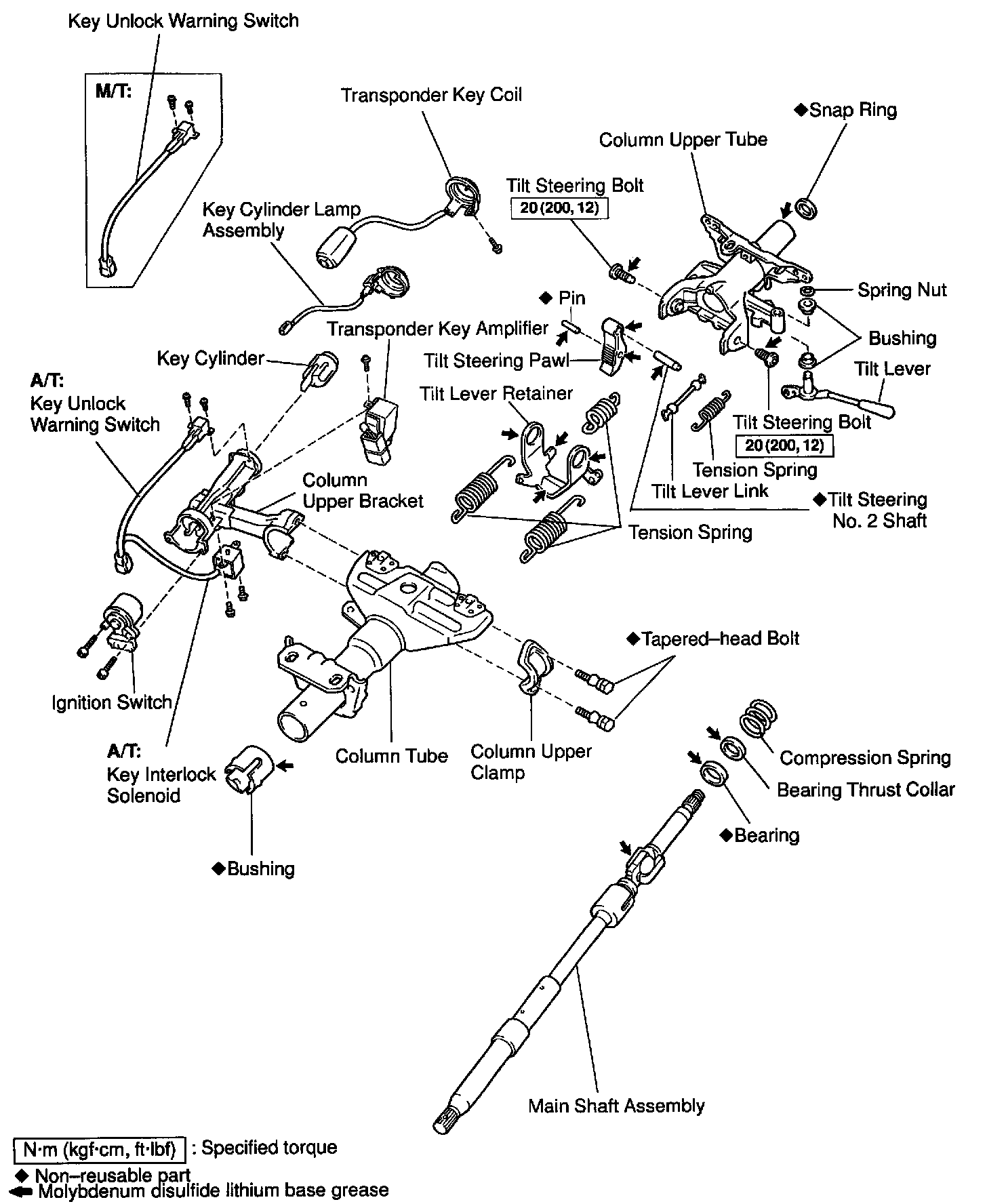

Part 1 Of 2:

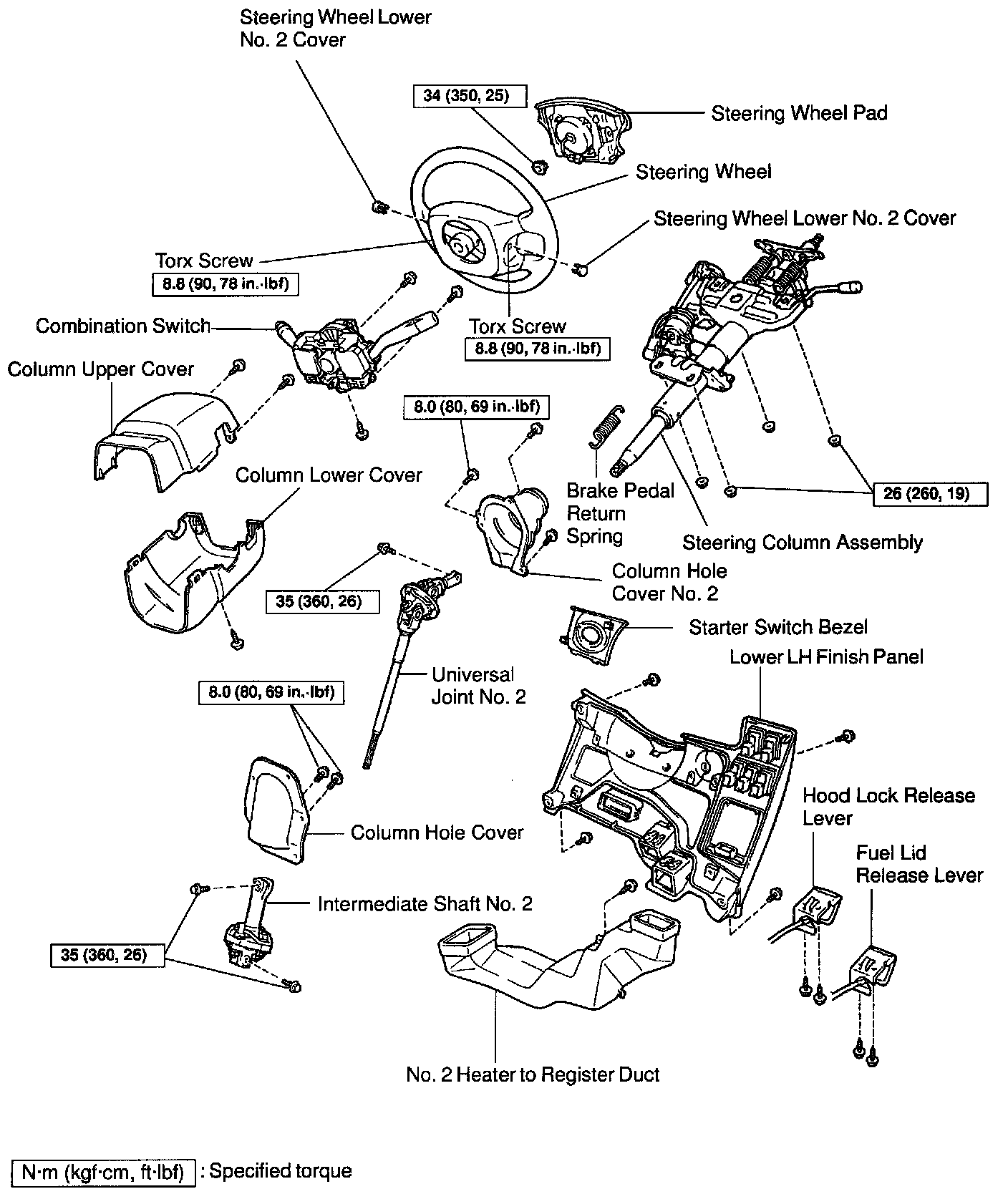

Part 2 Of 2:





TILT STEERING COLUMN REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
