DENSO Made

CIRCUIT DESCRIPTION
When the cruise control main switch is turned OFF, the cruise control does not operate.

Wiring Diagram:

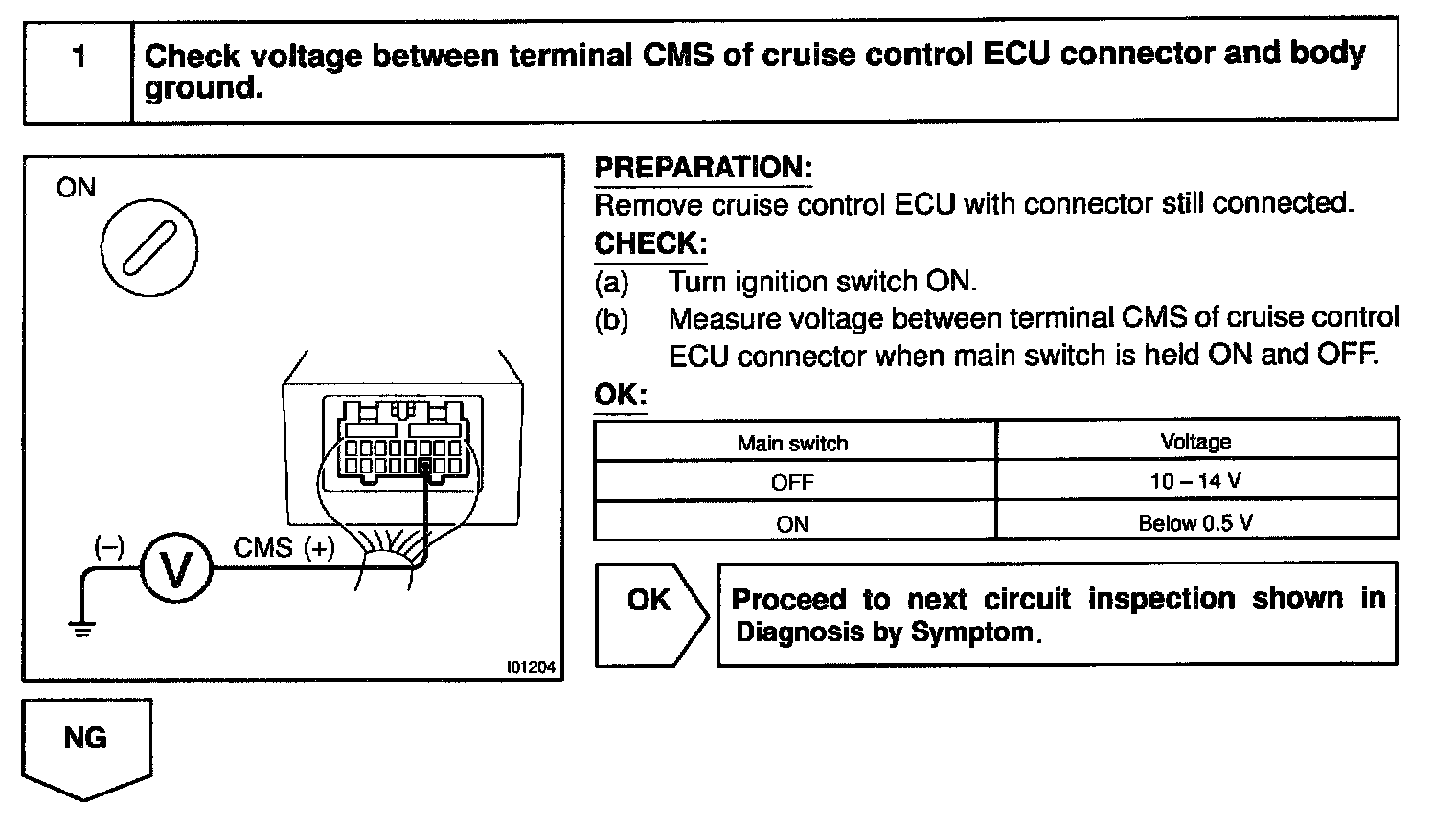

Step 1:

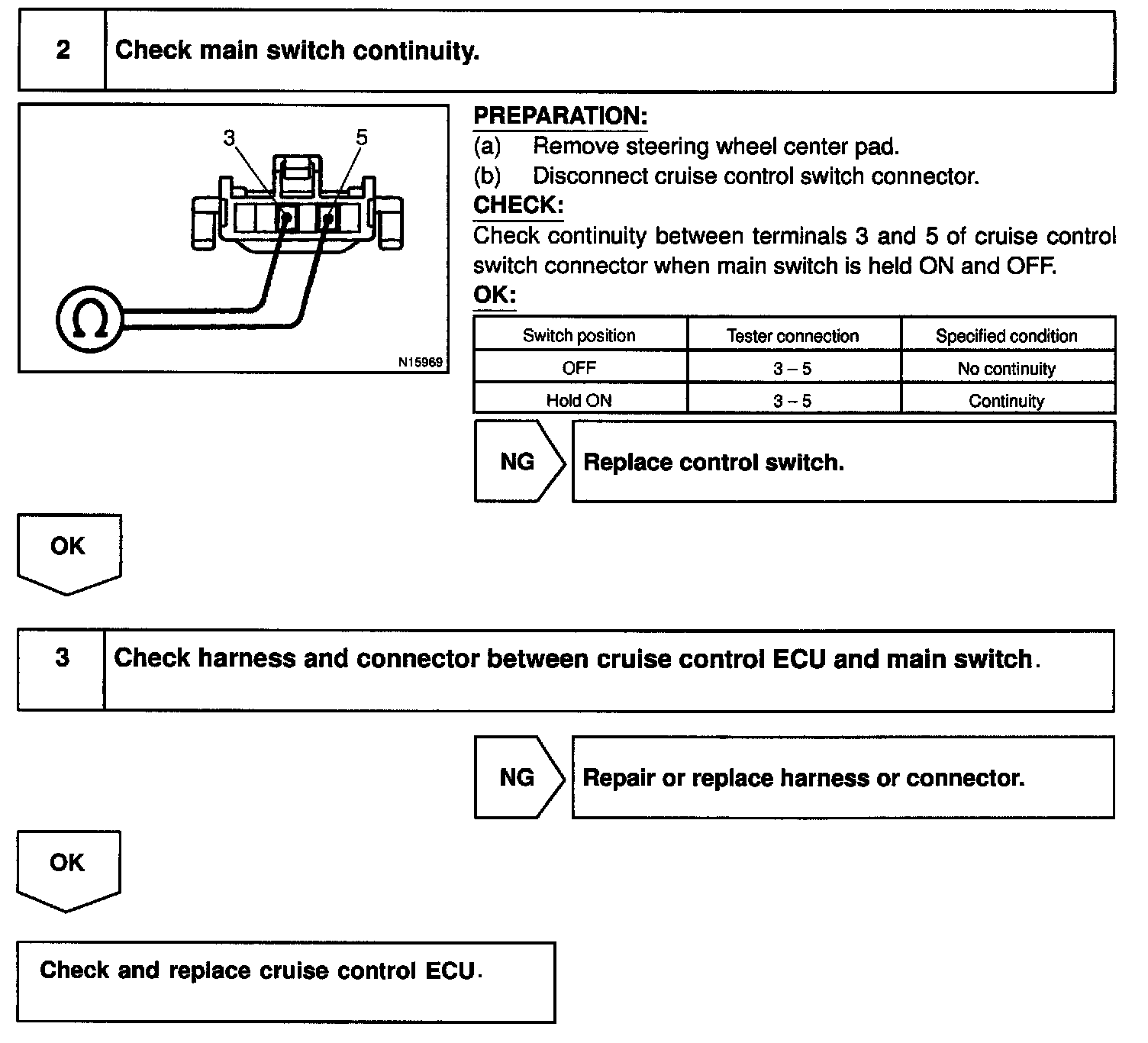

Steps 2 - 3:




INSPECTION PROCEDURE
