Maintenance Information
>>
Service Point Locations
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Service Point Locations

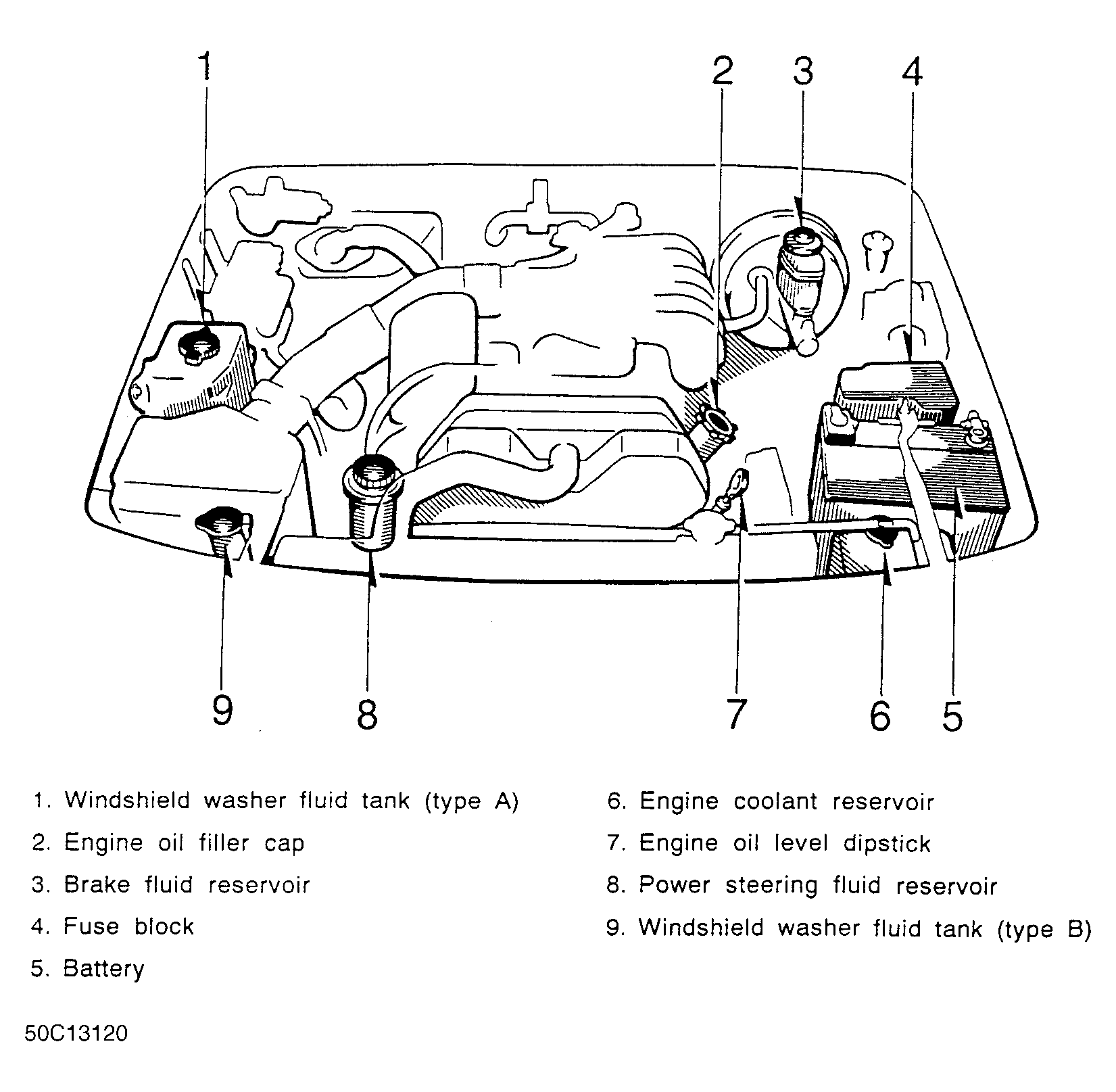

Fig 1: Service Point Locations (2RZ-FE & 3RZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

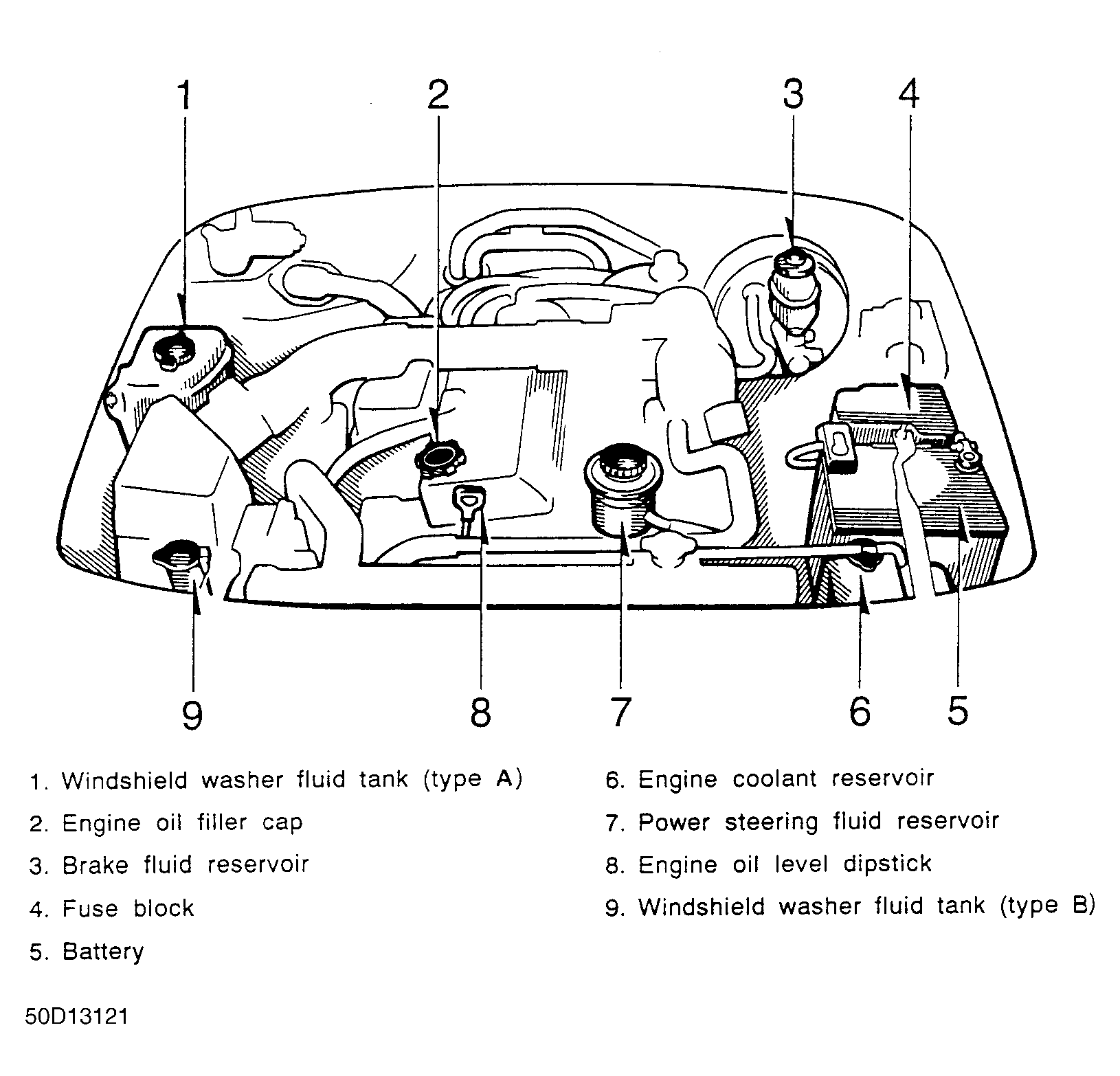

Fig 2: Service Point Locations (5VZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

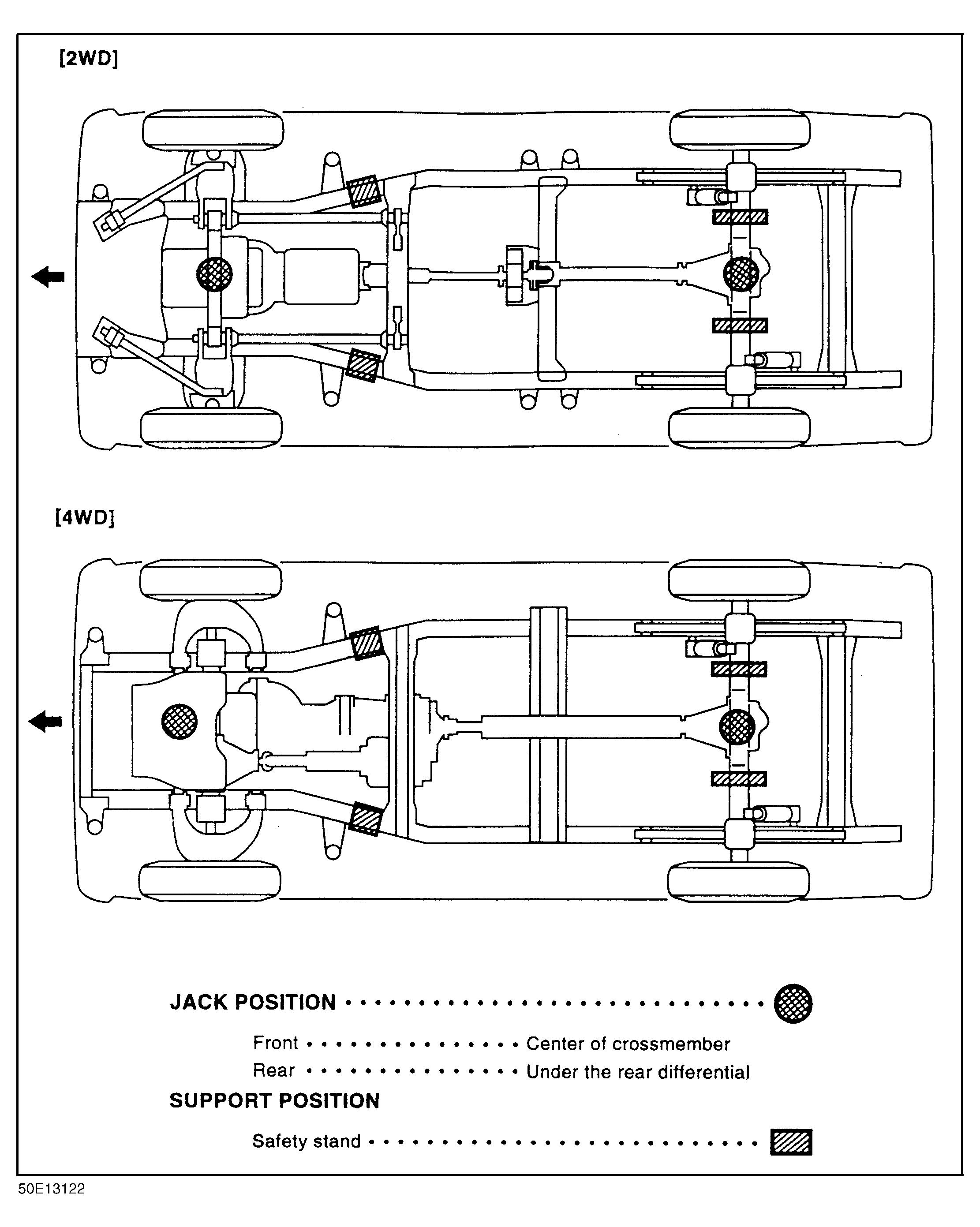

Fig 3: Lift Point Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
