Service Point Locations

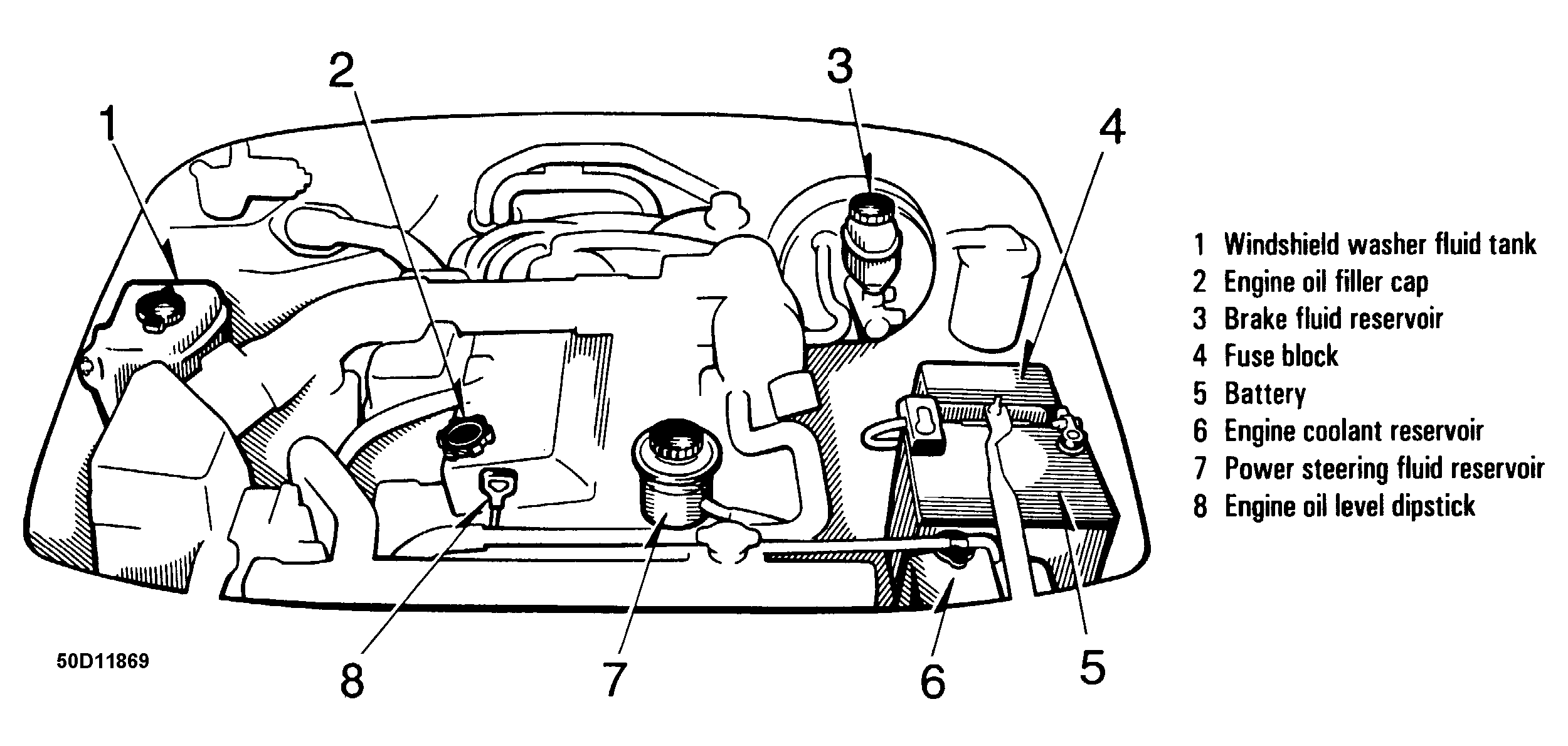

Fig 1: Service Point Locations (Typical 4-Cylinder) Yourtesy of Toyota Motor Sales, U.S.A., Inc.
G50D11869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

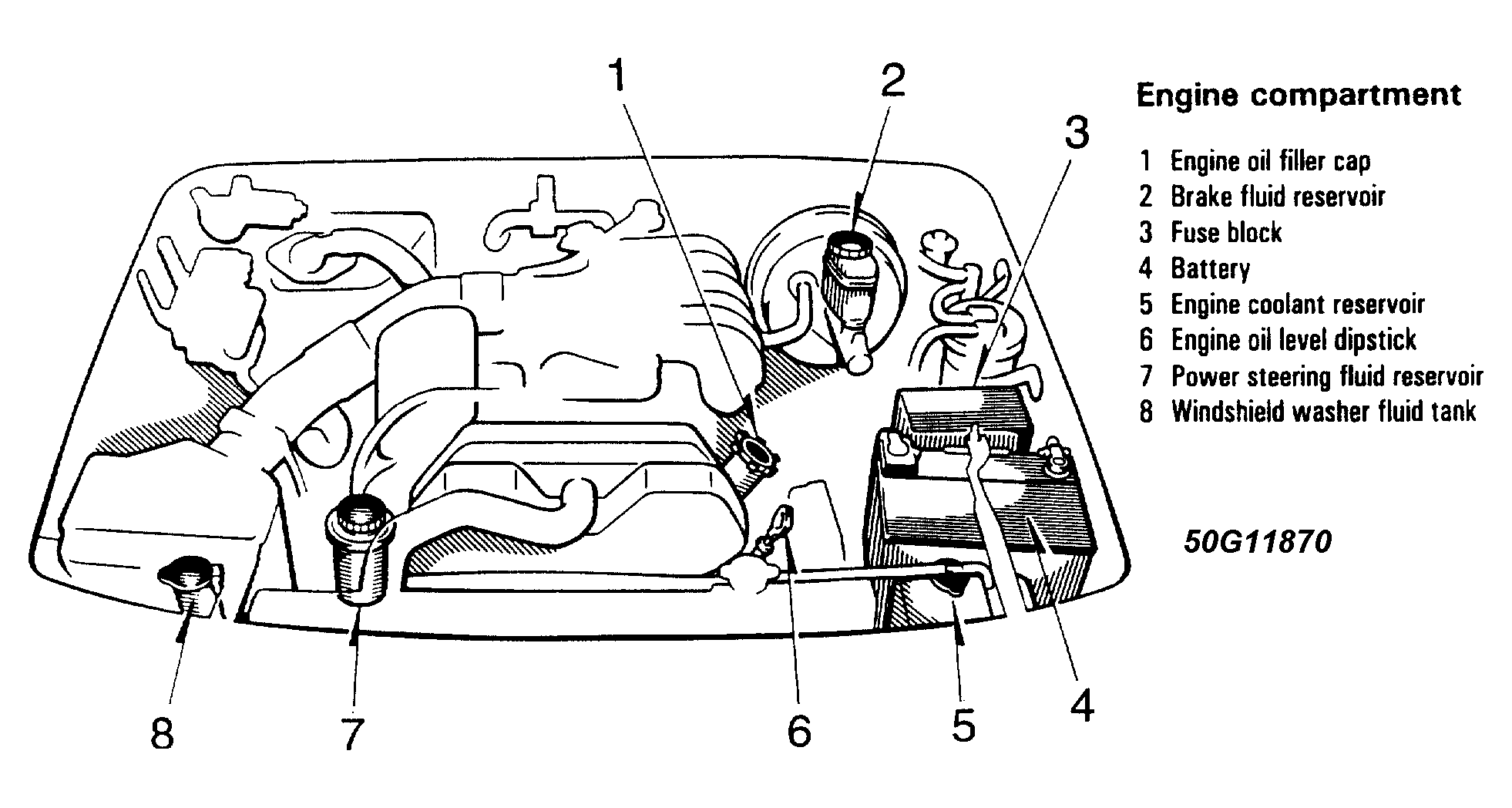

Fig 2: Service Point Locations (3.4L V6)
G50G11870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
