DTC 51: Engine Malfunction Detection Circuit

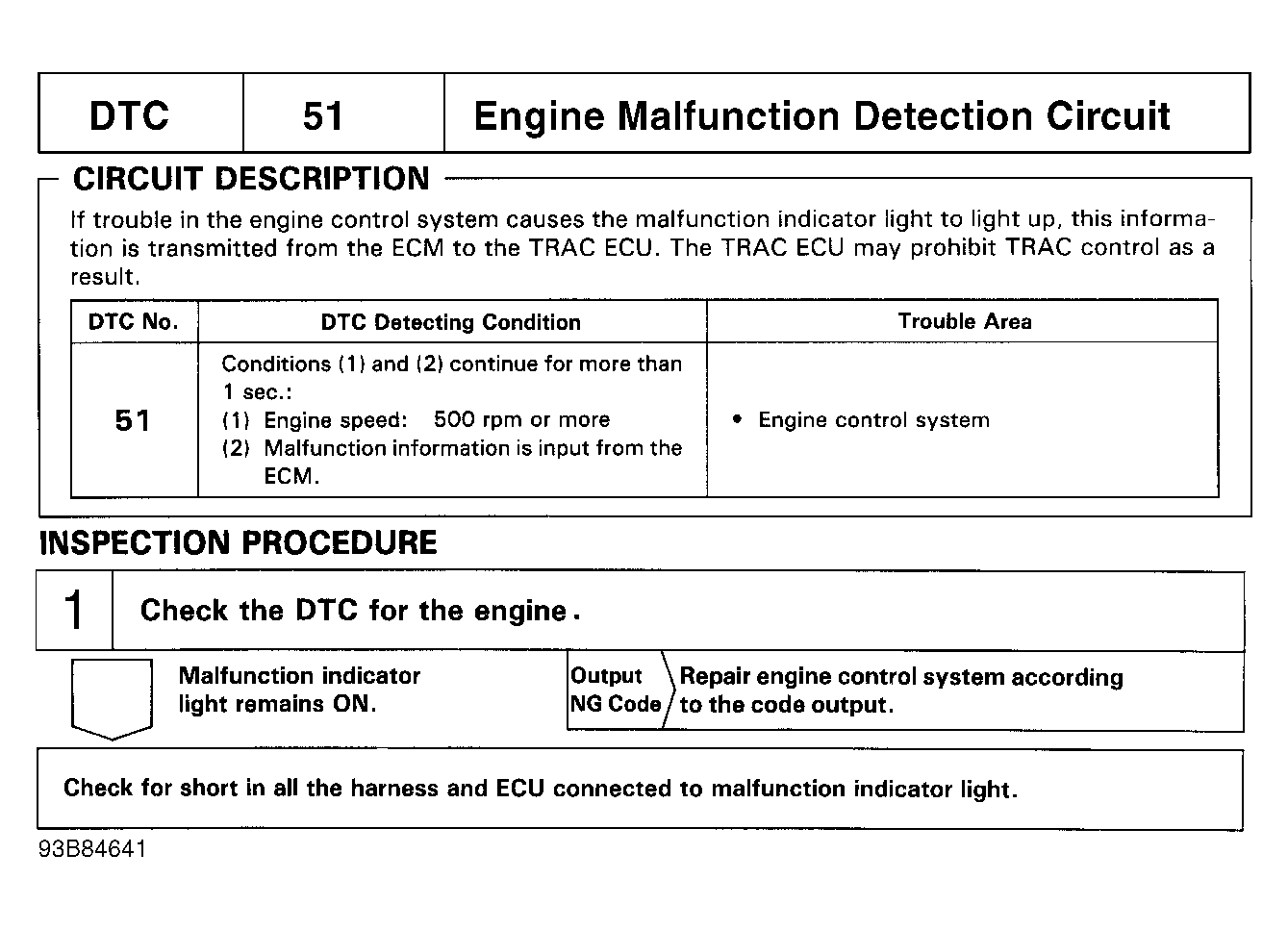

Fig 1: DTC 51 - ENGINE MALFUNCTION DETECTION CIRCUIT CHART
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
