Alignment - Specifications In Degrees

REF.: SUSPENSION

NO.: SU003-96

DATE: MARCH 29, 1996

MODEL: ALL MODELS

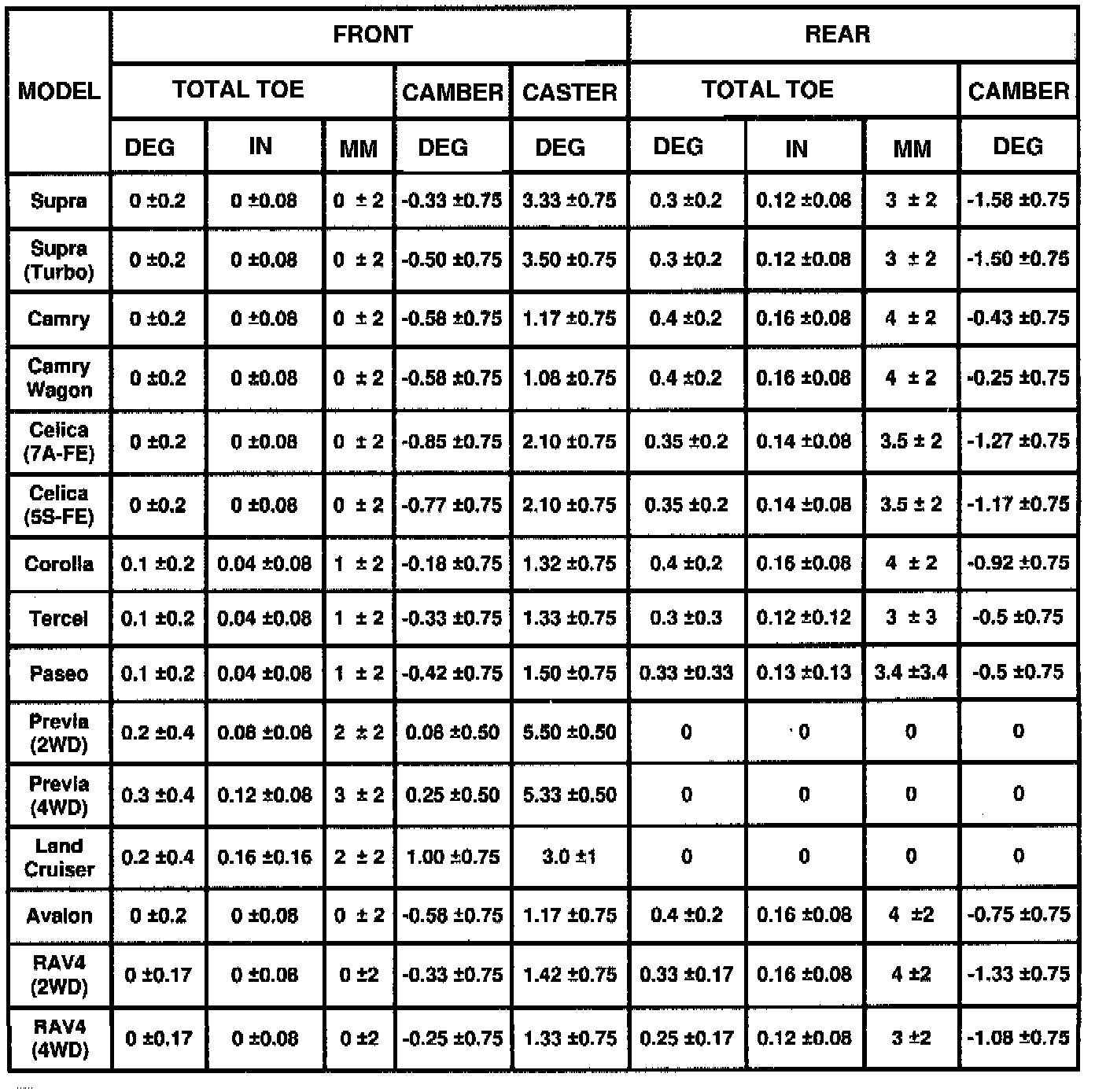

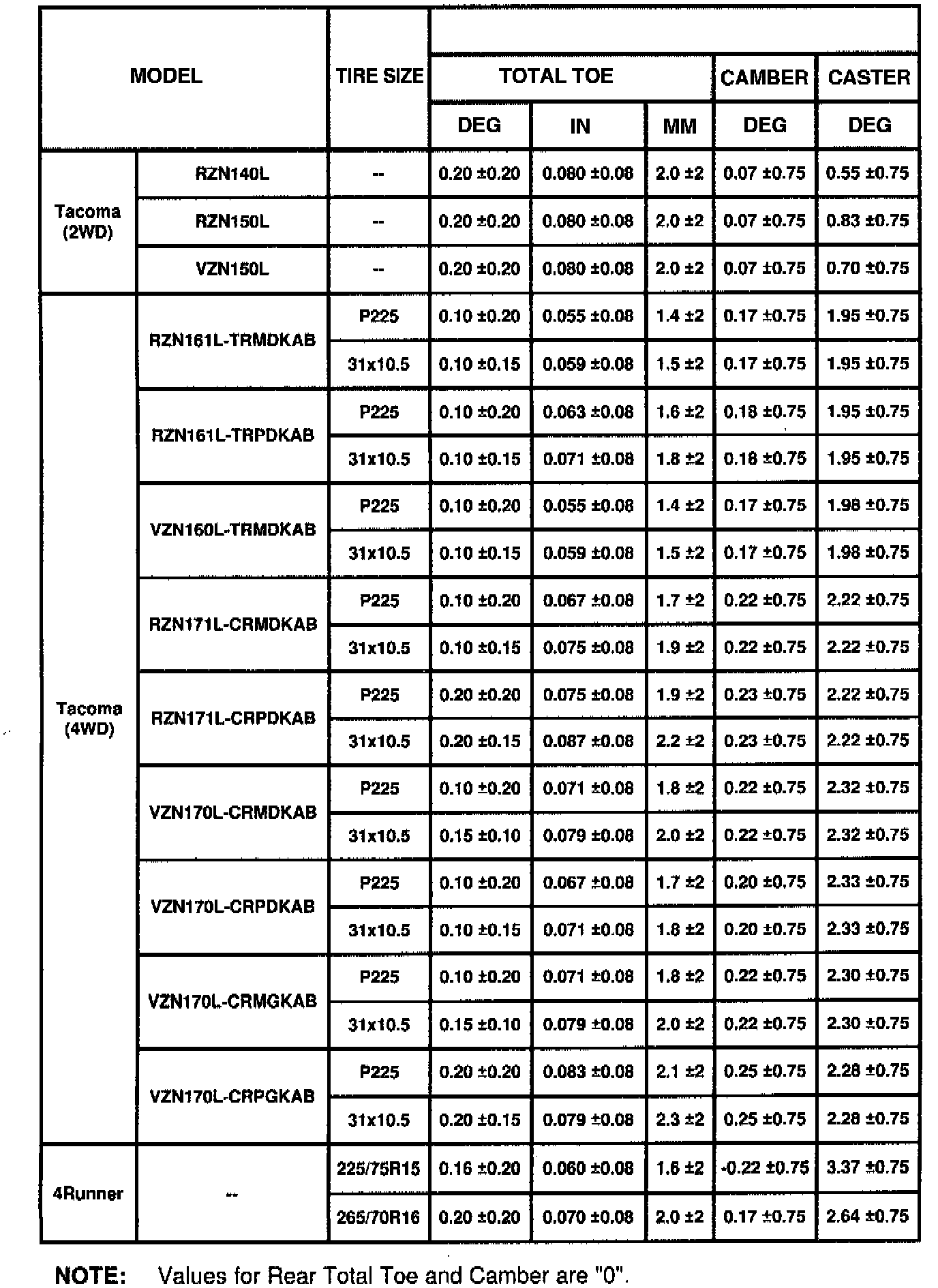

1996 MY WHEEL ALIGNMENT SPECIFICATIONS











For your reference listed are the alignment specifications for all 1996 model year vehicles.
