Ts TERMINAL CIRCUIT

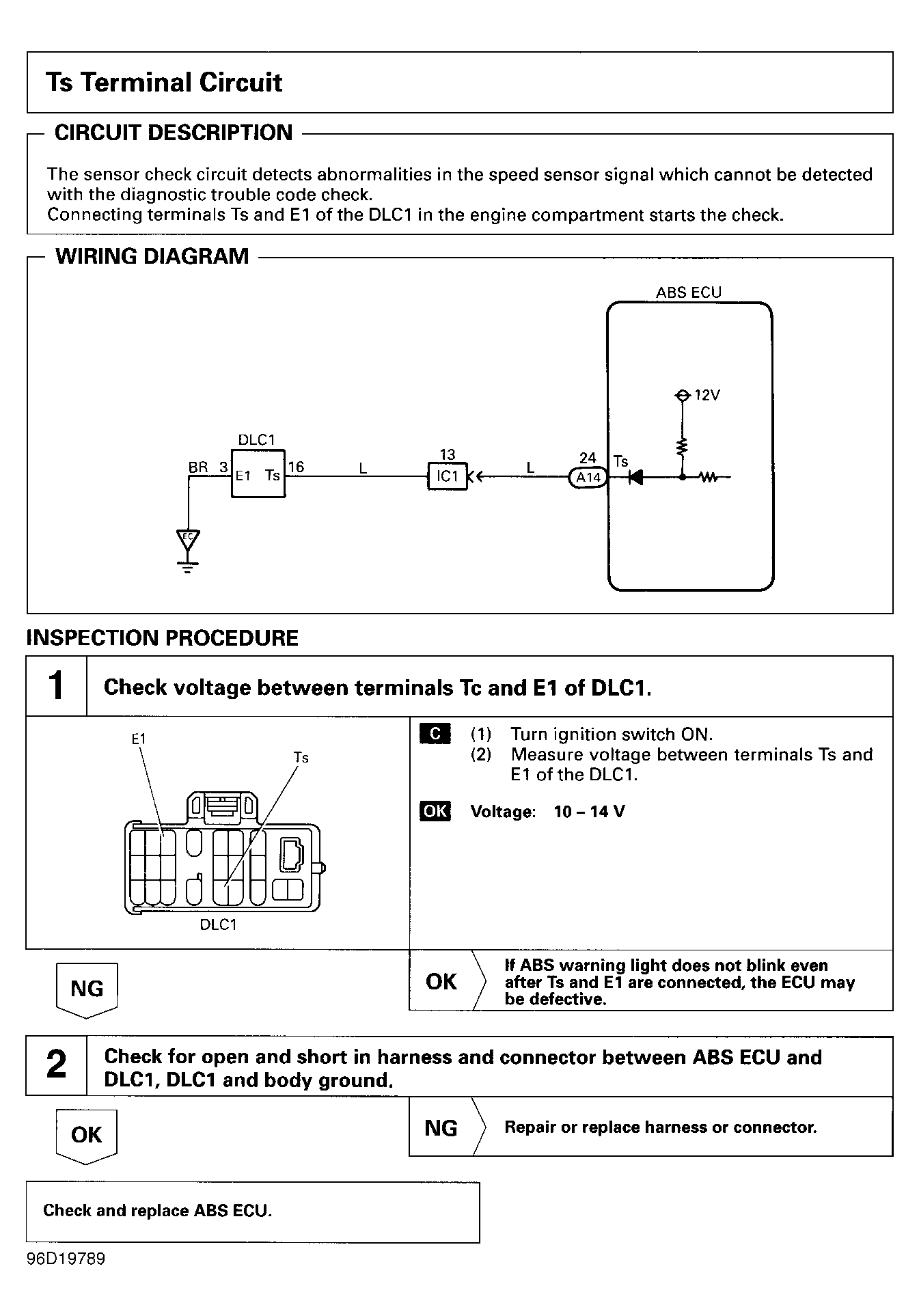

Fig 1: Ts TERMINAL CIRCUIT CHART
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
