Stoplight Switch Circuit

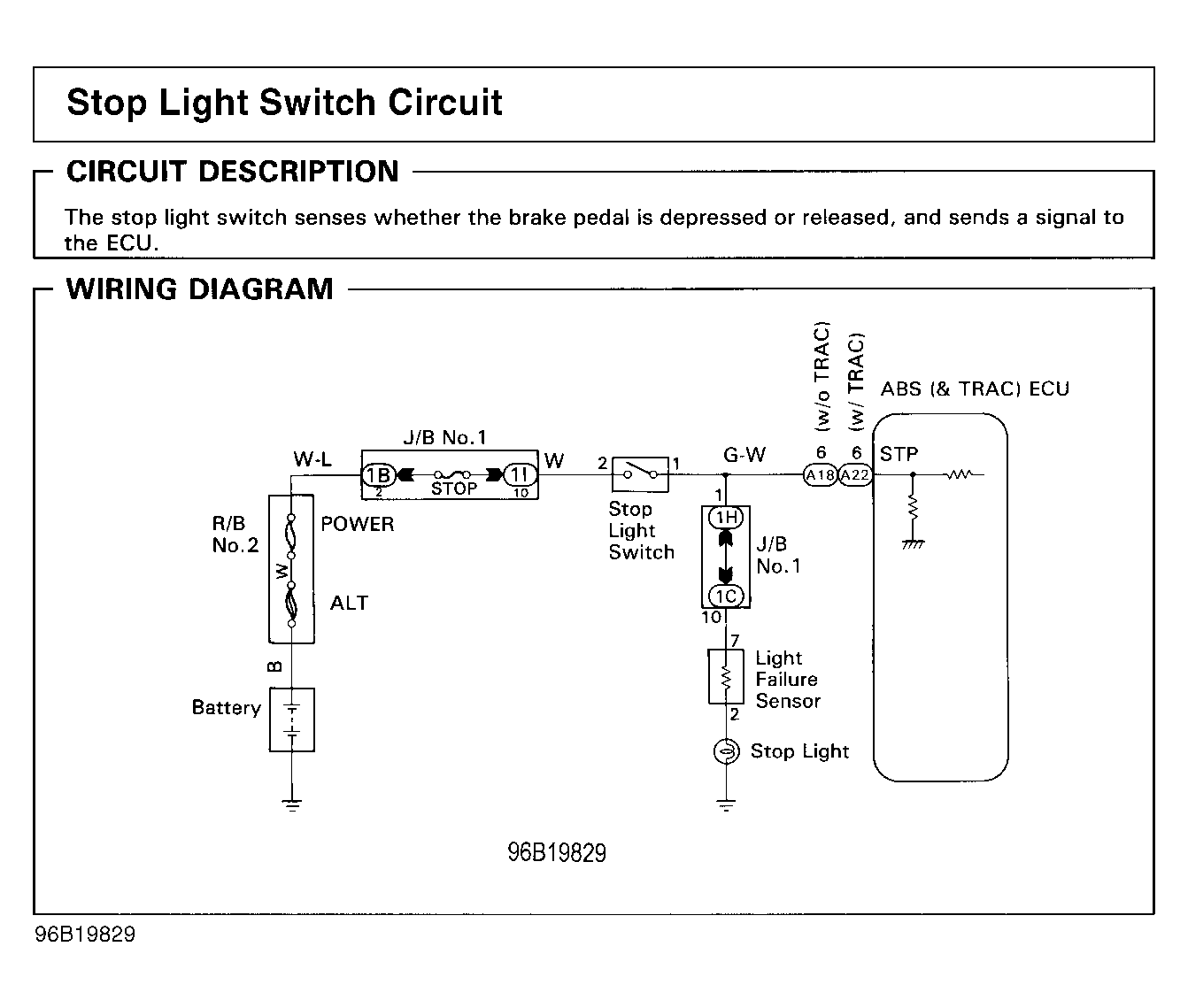

Fig 1: STOPLIGHT SWITCH CIRCUIT (1 OF 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

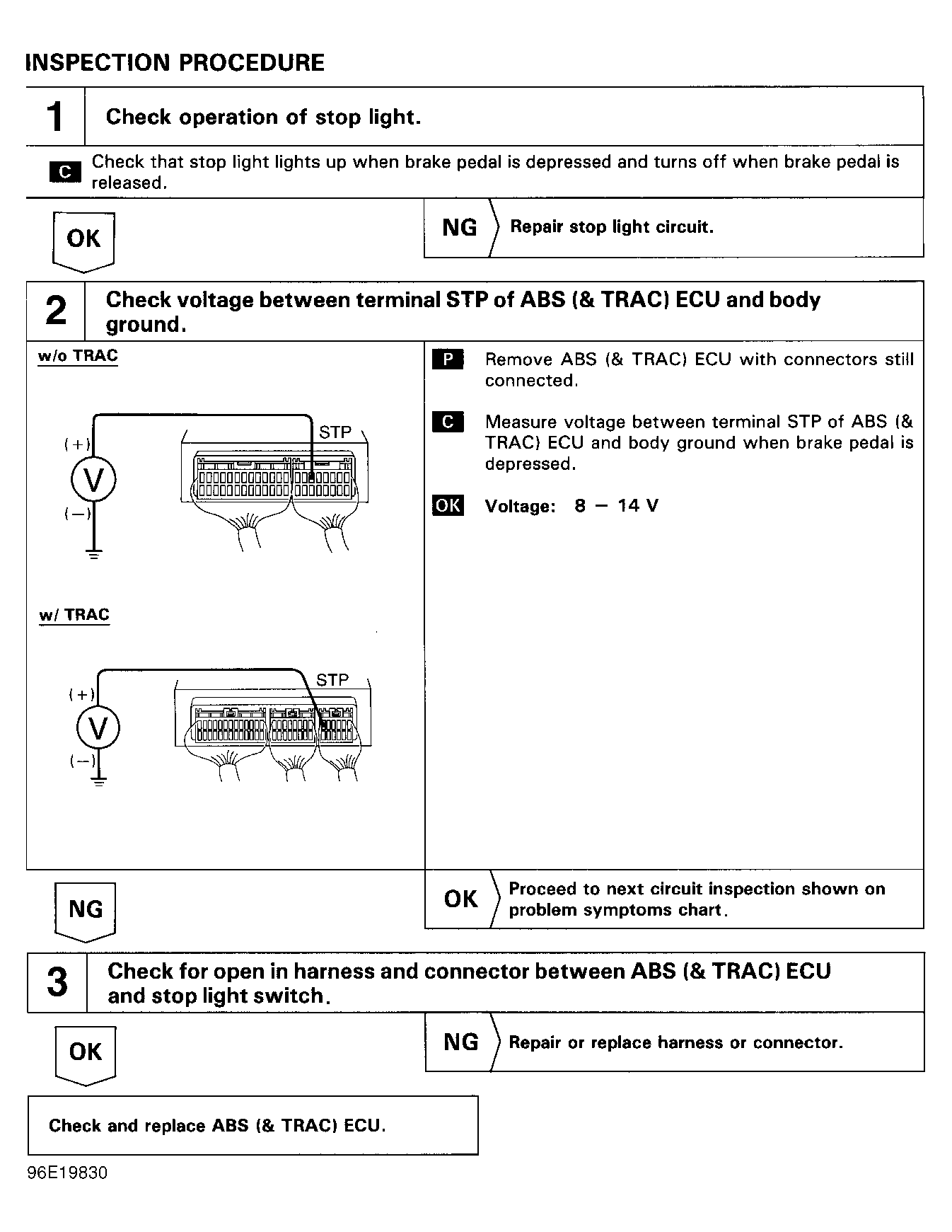

Fig 2: STOPLIGHT SWITCH CIRCUIT (2 OF 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
