Test No. 1 ECM Power Source

TEST NO. 1-ECU POWER SOURCE TROUBLE

Terminals	Trouble	Condition	STD Voltage
BATT - E1	No Voltage	All	10 - 14V

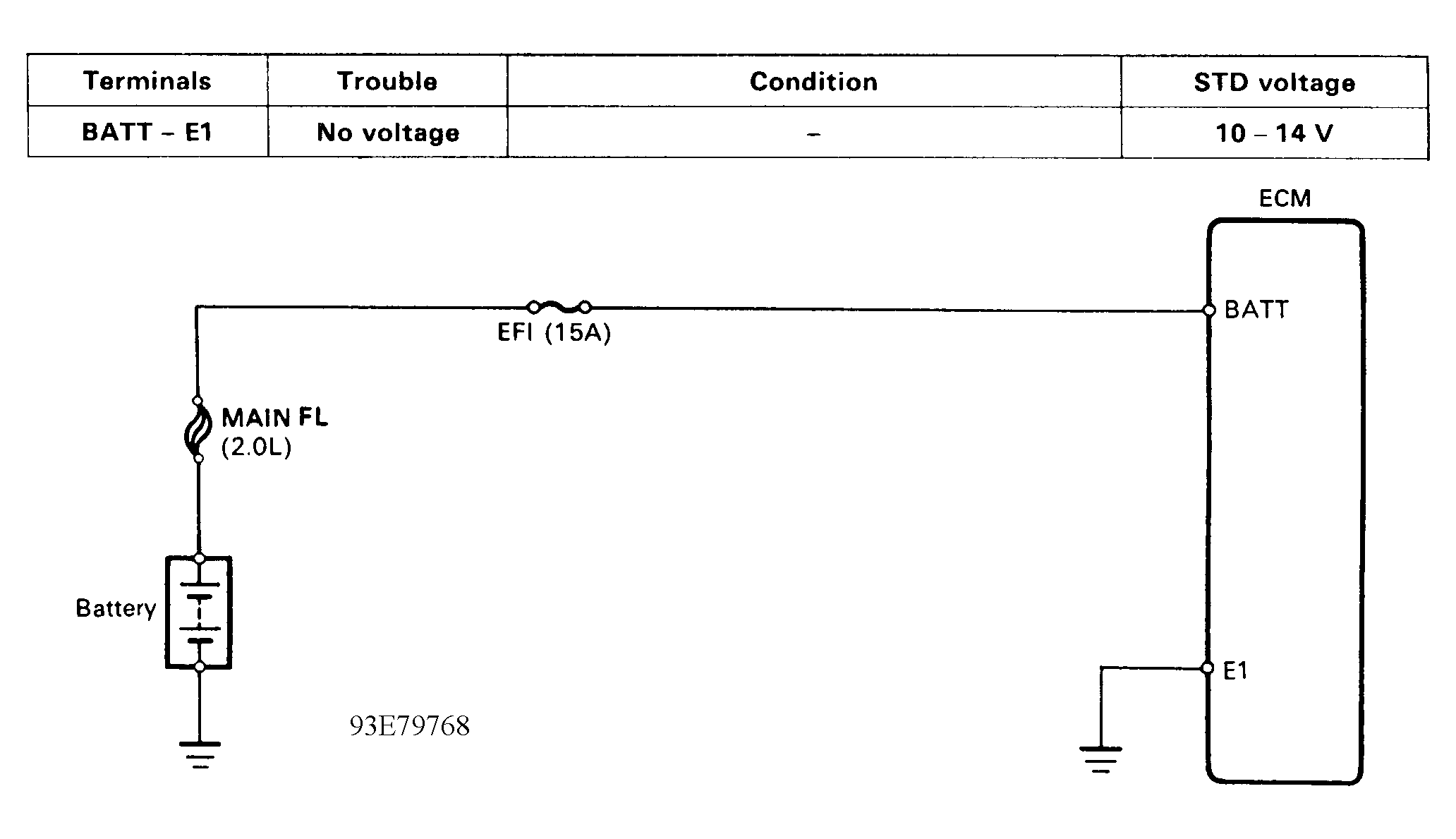

Fig 1: Test No. 1 - Schematic

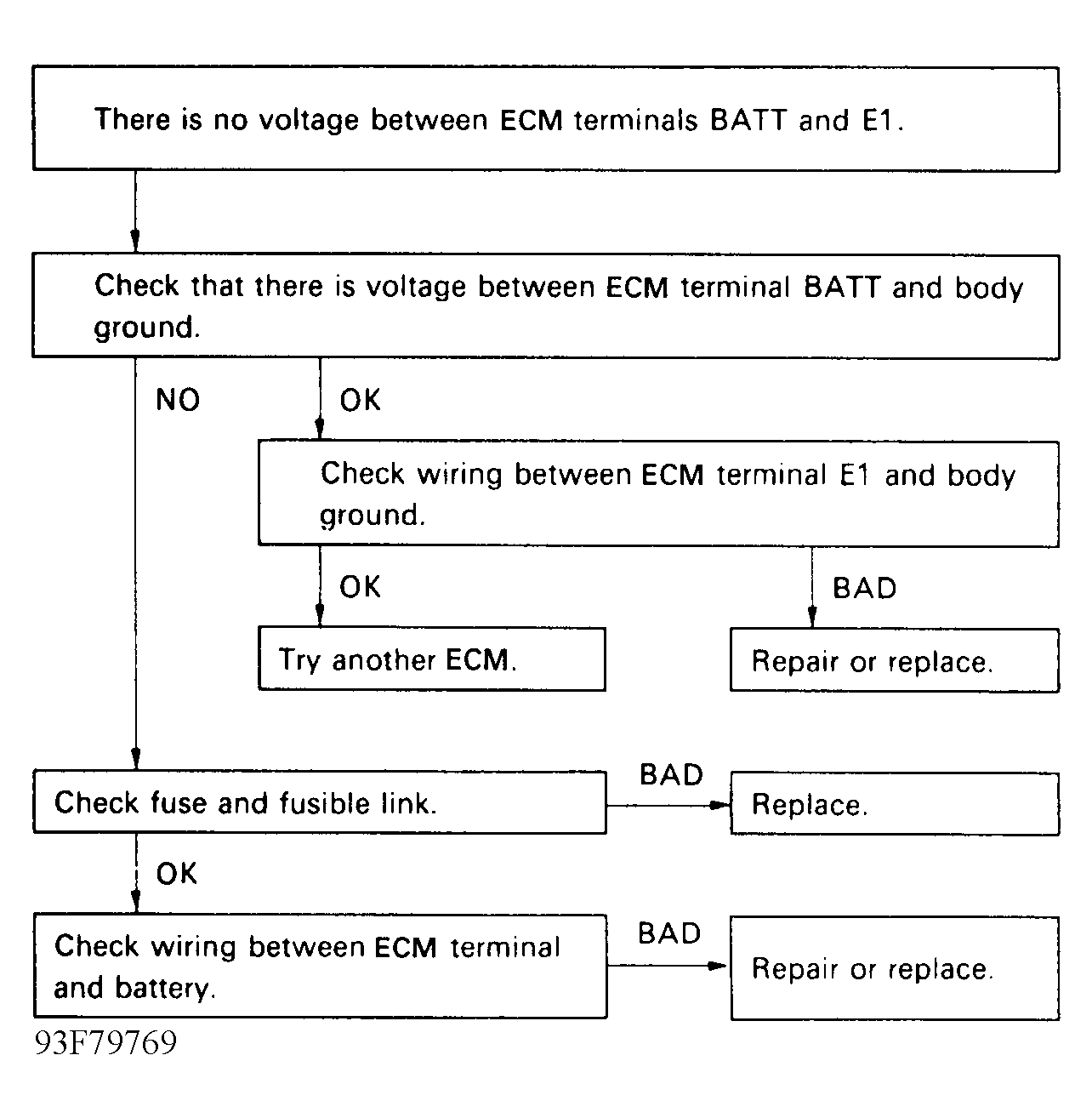

Fig 2: Test No. 1 - Diagnostic Flowchart
