Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

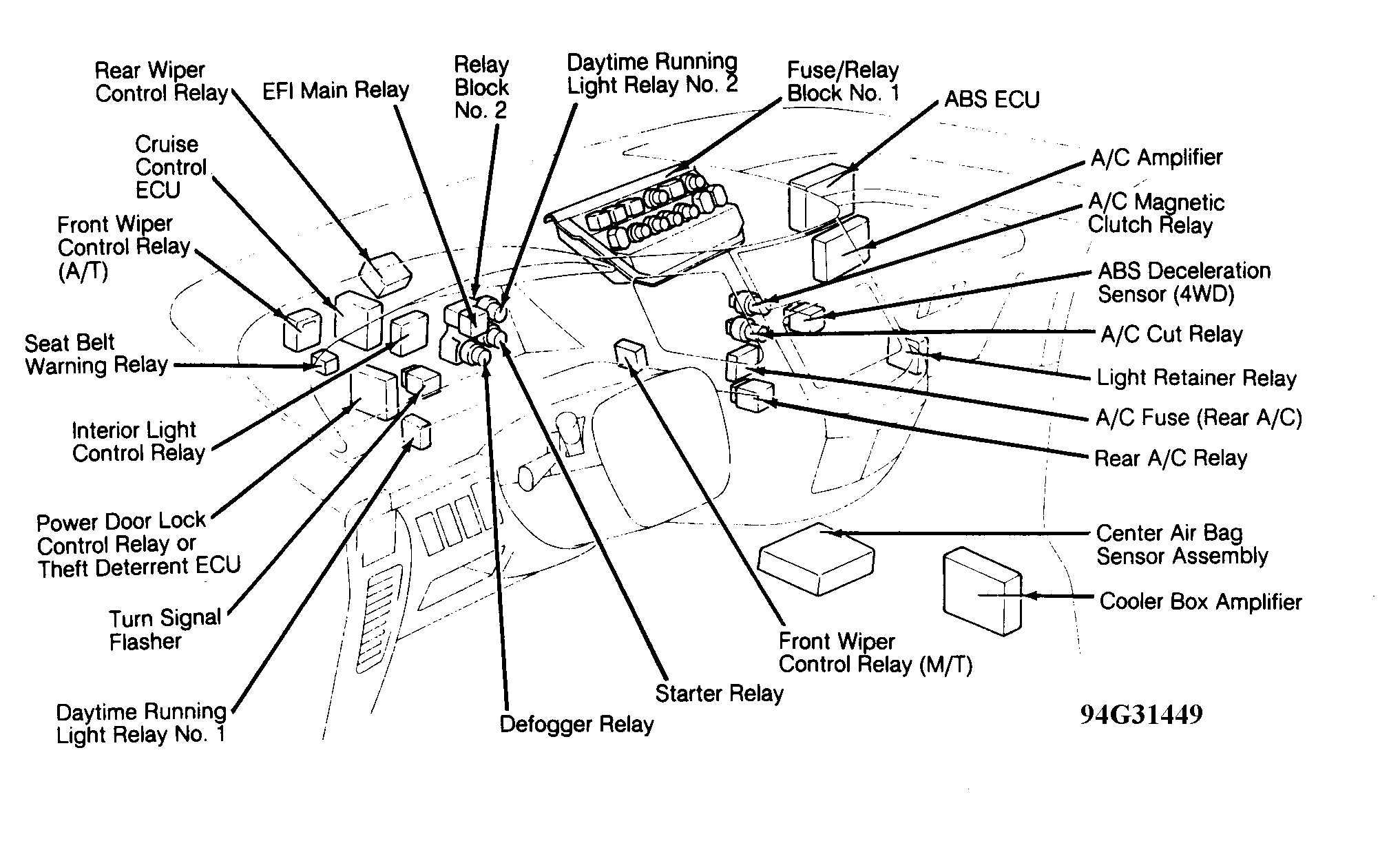

A/C Fuse (For Rear A/C) Behind right side of center console. See Figure.
Front Heater Circuit Breaker On fuse/relay block No. 1, in center console. See Figure.
Fusible Links In fusible link block mounted to right side of battery. See Figure.
Power Door Circuit Breaker On fuse/relay block No. 1, in center console. See Figure.
Power Main Circuit Breaker (Accessories) On fuse/relay block No. 1, in center console. See Figure.

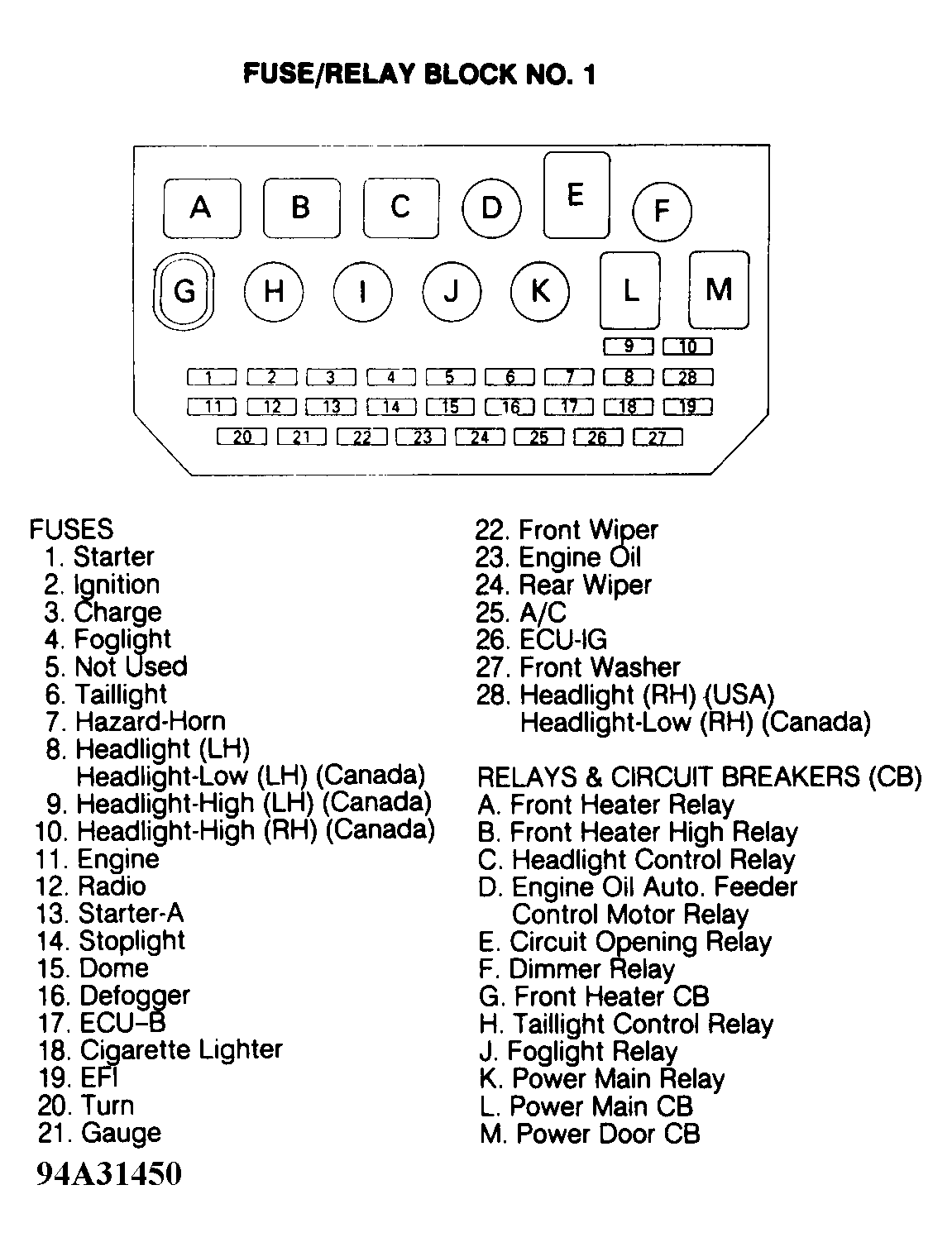

Fuse/Relay Block No. 1 Inside top of center console. See Figure & Figure .
Relay Block No. 2 Behind instrument cluster. See Figure.
