Power & Ground Circuits

For testing of power and ground circuits, see information in PIN VOLTAGE CHARTS article. See ECM LOCATION table for identifying ECM mounting locations.

ECM LOCATION

Model	Location
Previa	Below Driver's Seat

NOTE: For ECM terminal identification on Non-Supercharged model, see PIN VOLTAGE CHARTS article.

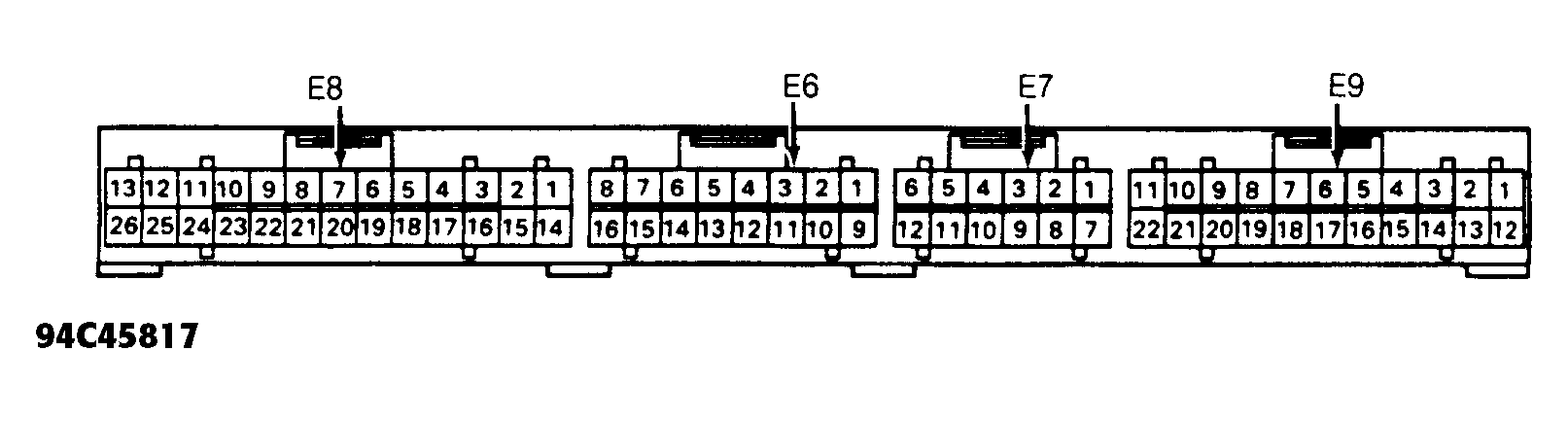

Fig 1: Identifying ECM Terminals (Supercharged)
