MR2 2.0 S
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Trouble Code Charts
>>
ECM (+B) Circuit Check
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
ECM (+B) Circuit Check

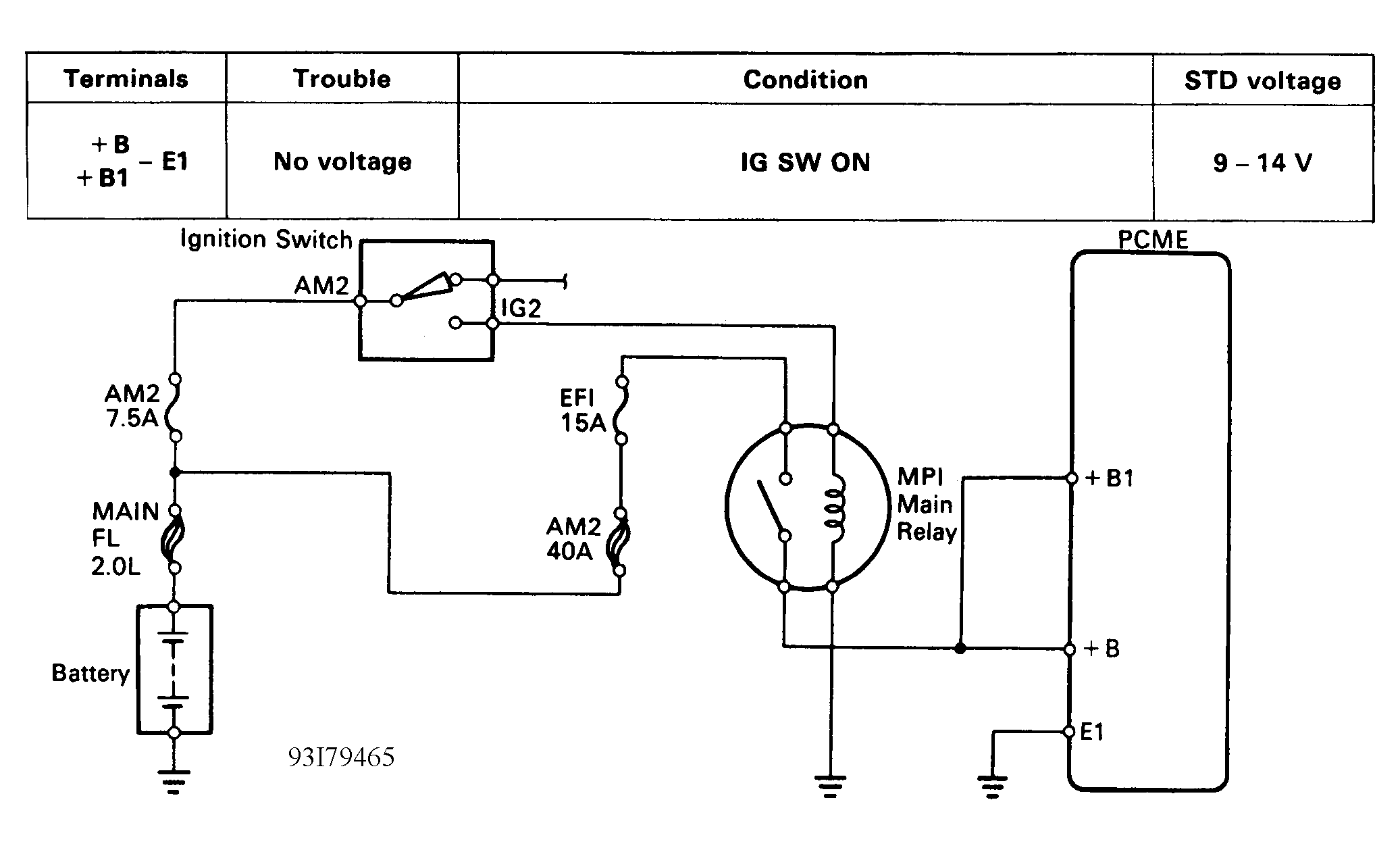

Fig 1: ECM (+B) Circuit Check - Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

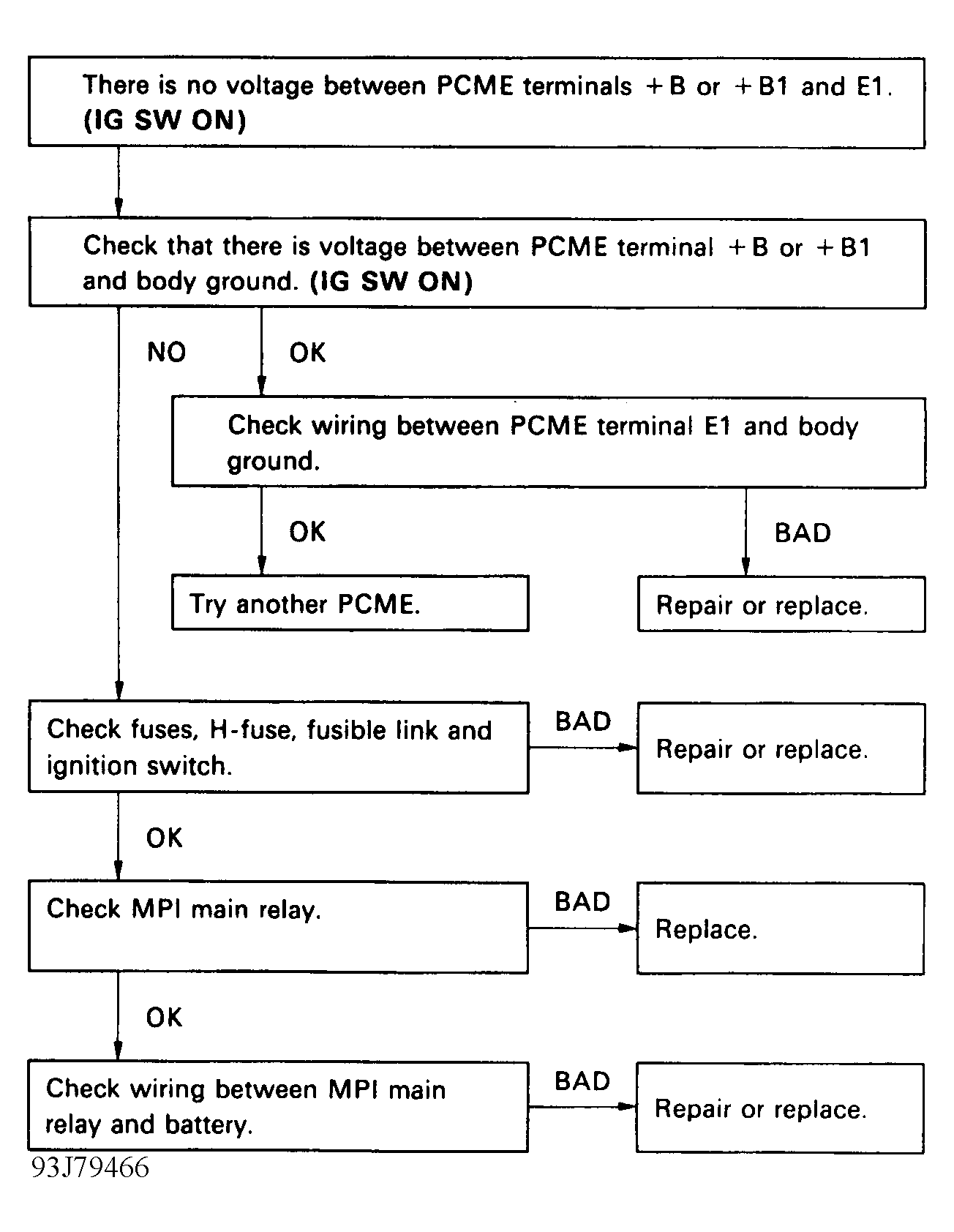

Fig 2: ECM (+B) Circuit Check - Diagnostic Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
