Wiring Diagrams

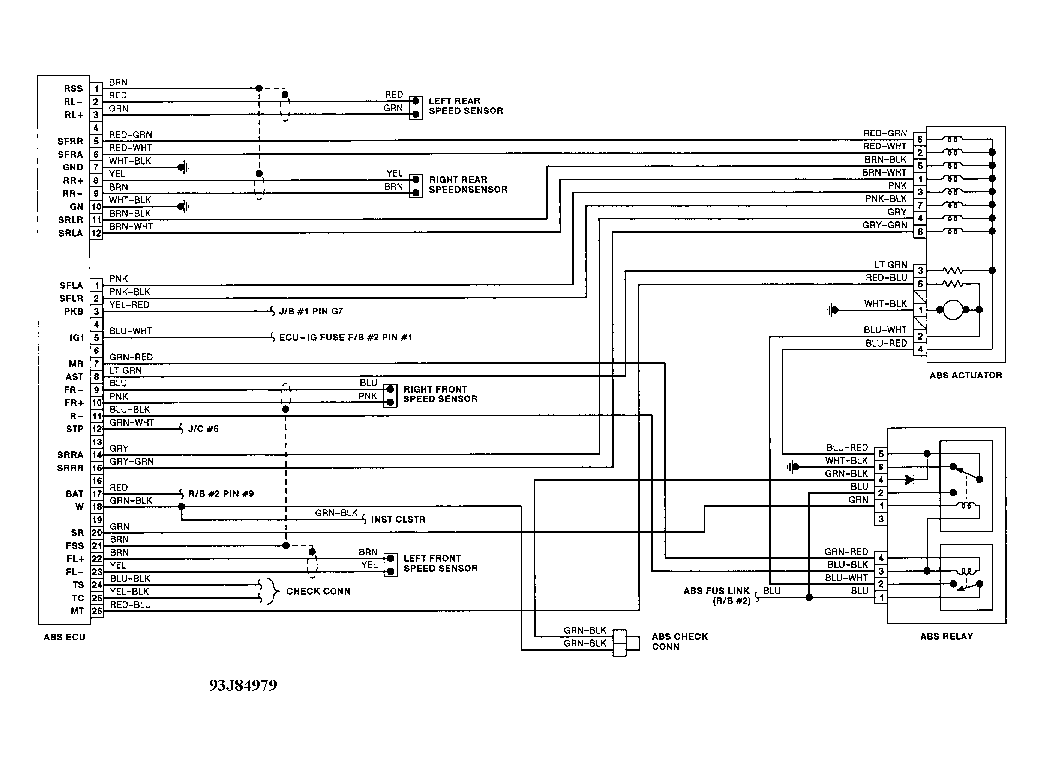

Fig 1: Anti-Lock Brake System (ABS) Wiring Diagram (Paseo)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

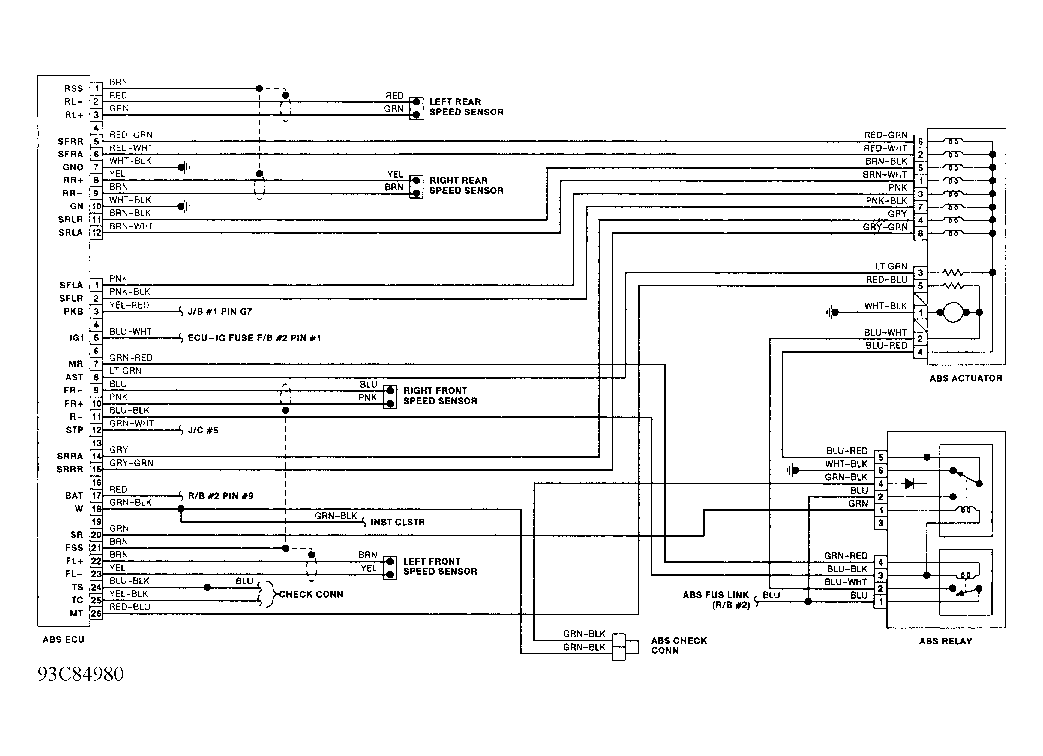

Fig 2: Anti-Lock Brake System (ABS) Wiring Diagram (Tercel)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
