DTC 43 - Starter Signal

DTC 43 - STARTER SIGNAL TROUBLE

Terminal Trouble Condition STD Voltage
STA-E1 No Voltage Ignition in START position 6V Or More

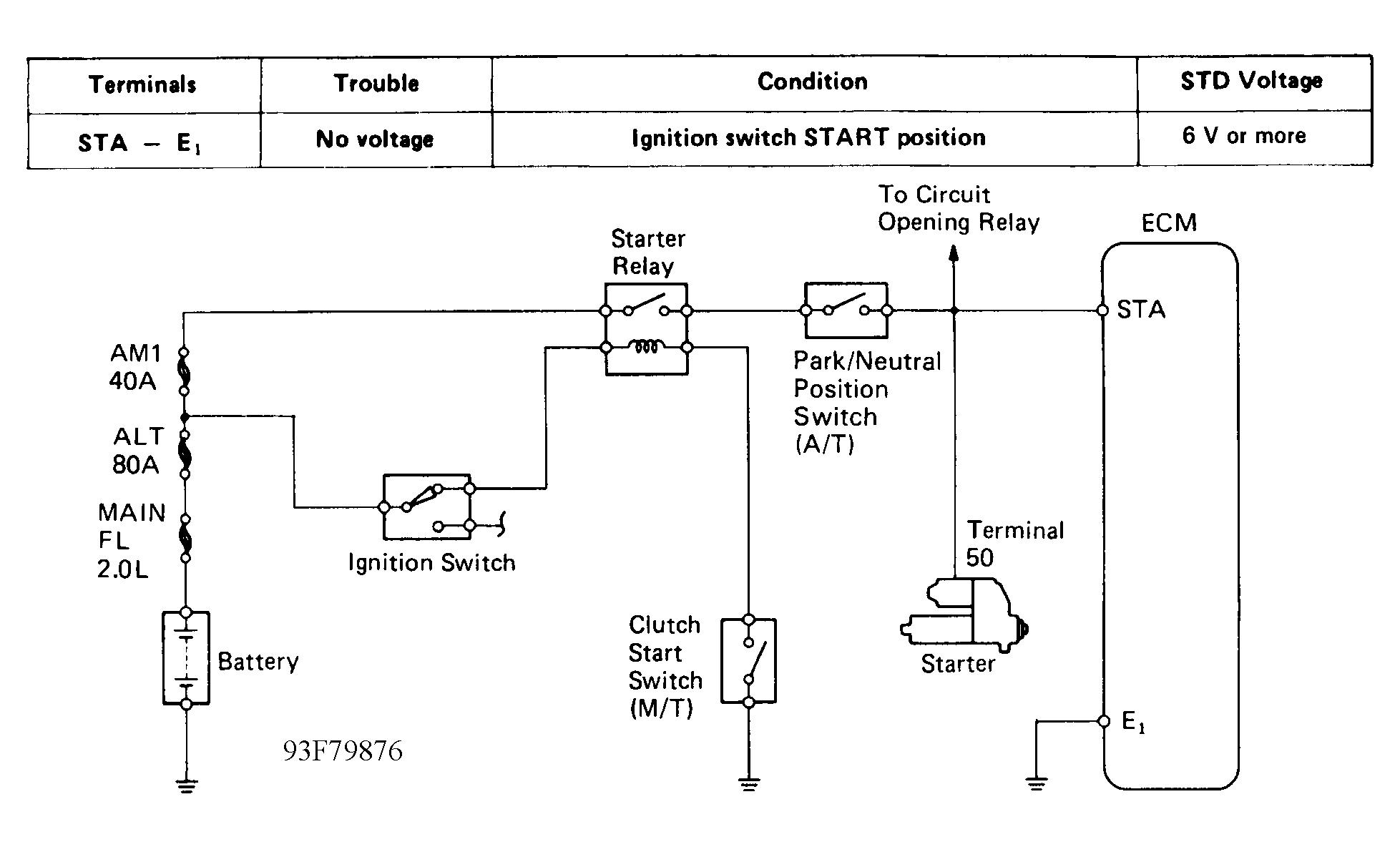

Fig 1: DTC 43 - Schematic
G93F79876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: DTC 43 - Component Diagram
G93H79878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

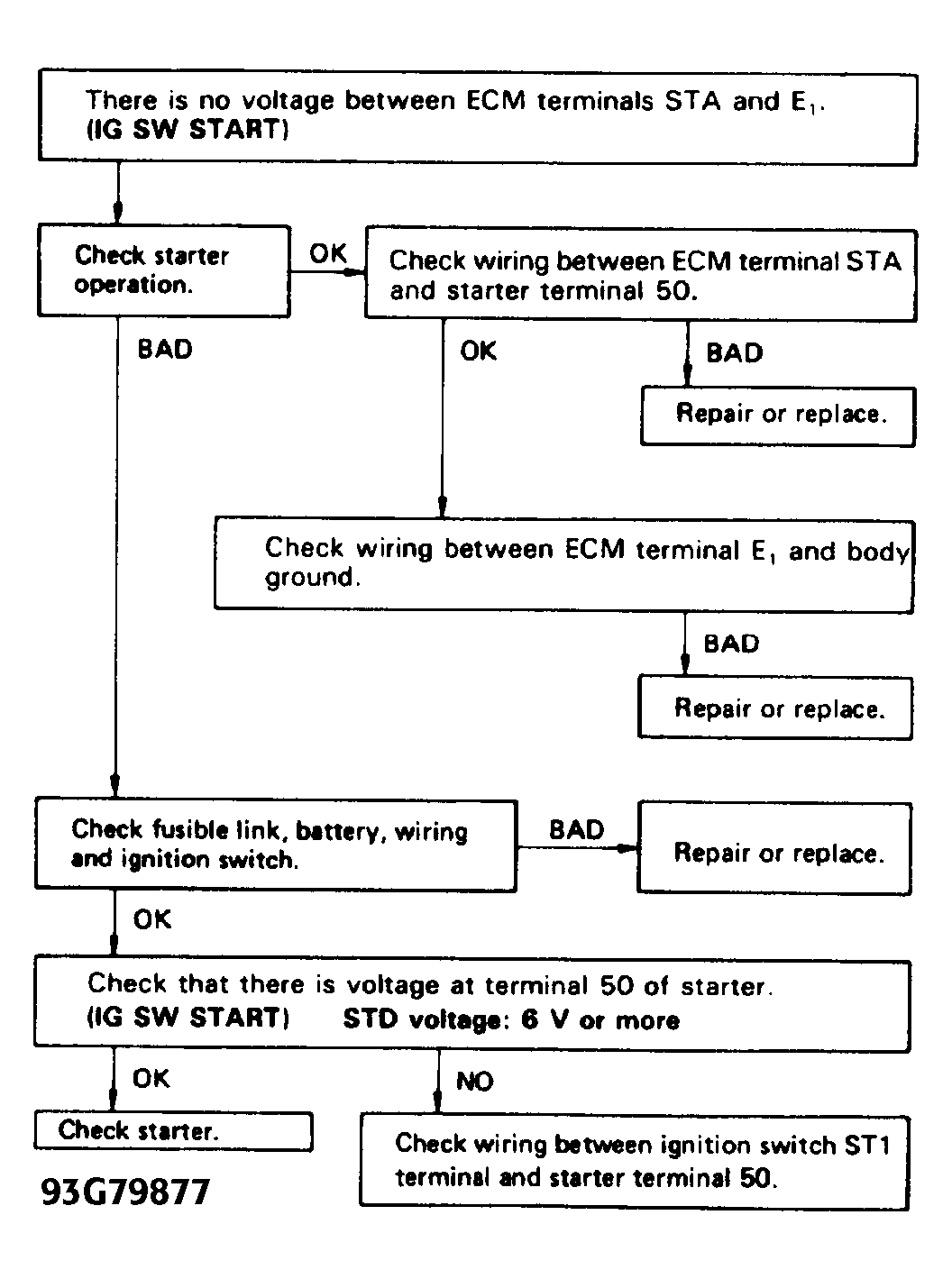

Fig 3: DTC 43 - Diagnostic Flowchart
G93G79877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
