Front Suspension
- Measure riding height, camber, and steering axis inclination. See WHEEL ALIGNMENT SPECIFICATIONS . If adjustment is necessary, see appropriate adjustment procedure.

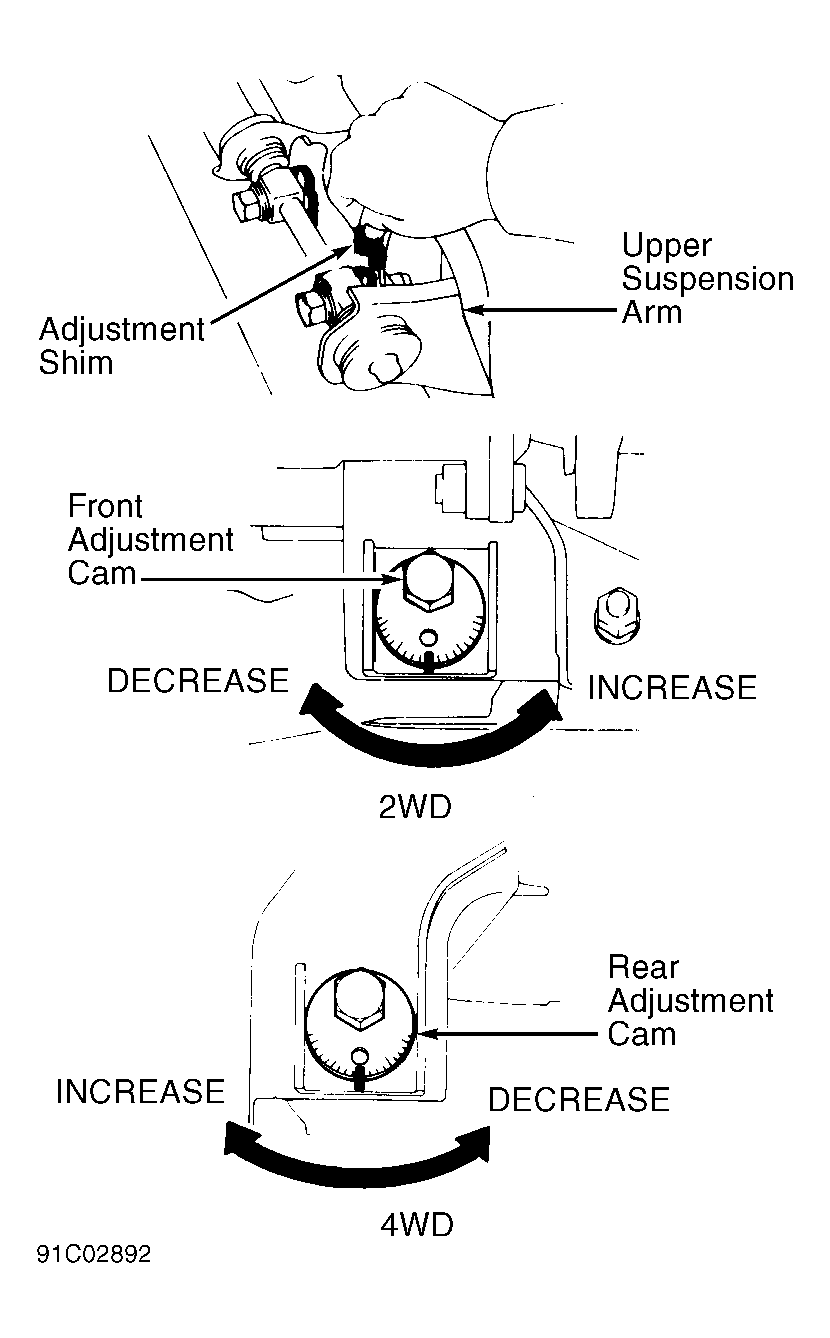

- Measure caster of both front wheels. If caster is not within specification, add or remove shims on upper control arms on 2WD models. On 4WD models, loosen and rotate adjuster cams. See Figure.
