Test No. 10 - Idle Speed Control Circuit

TEST NO. 10 - IDLE SPEED CONTROL CIRCUIT TROUBLE (5S-FE)

Terminal Trouble Condition STD Voltage
ISC1-E1 No Voltage Ignition Switch ON 9-14V
ISC2-E1

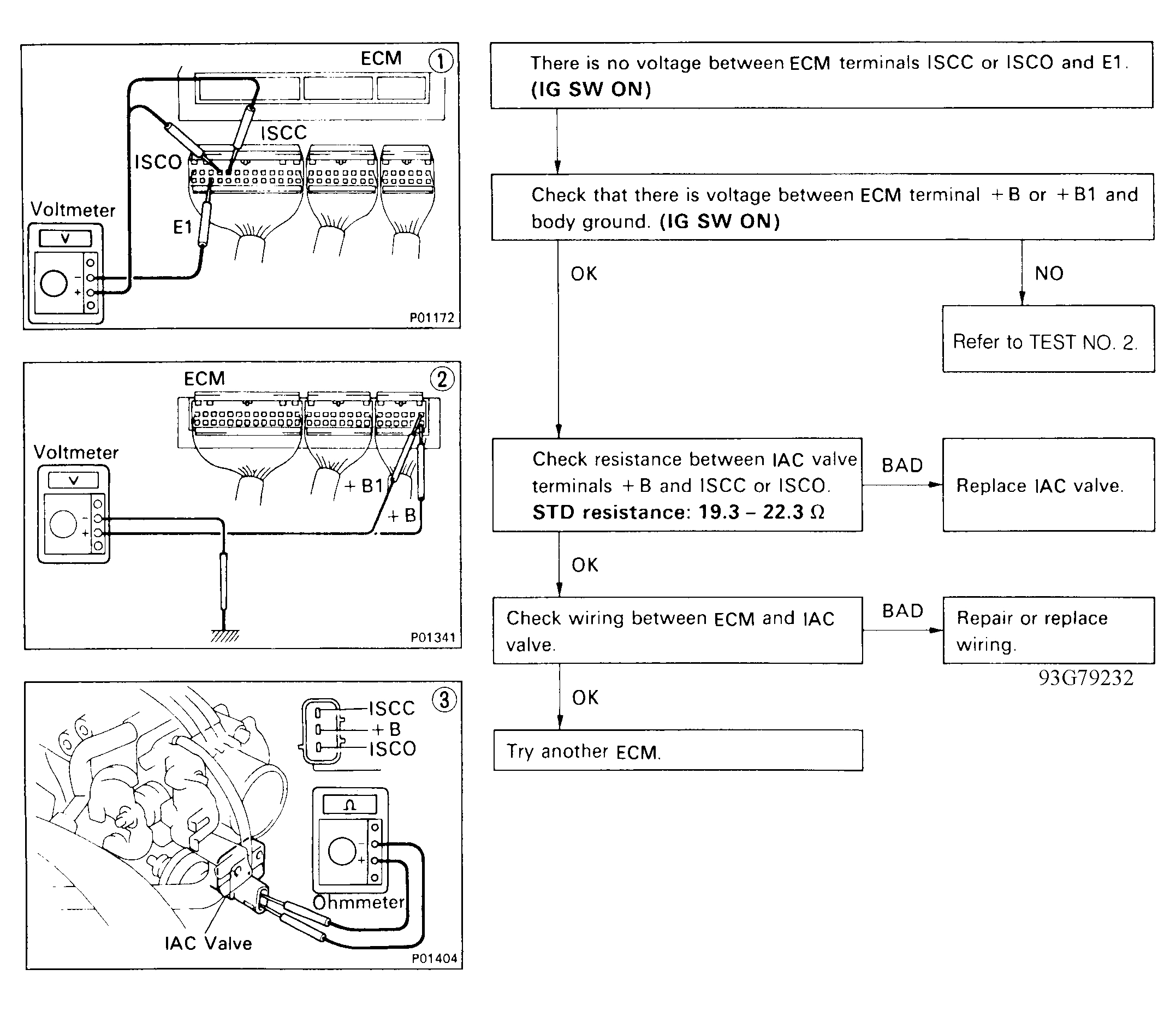

Fig 1: Test No. 10 Flow Chart (5S-FE) Idle Speed Control Circuit
G93G79232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

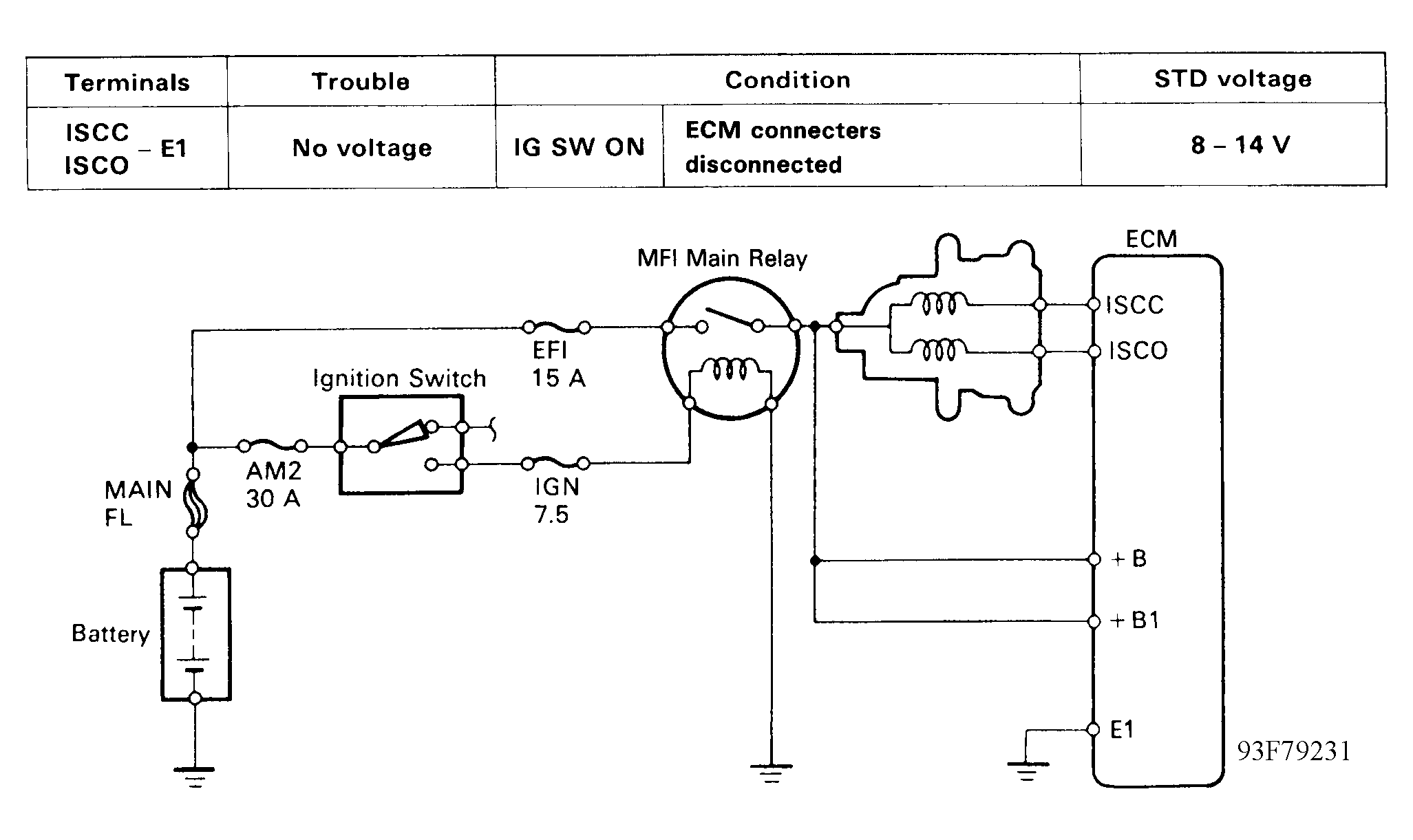

Fig 2: Test No. 10 Schematic (5S-FE) Idle Speed Control Circuit
G93F79231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEST NO. 10 - IDLE SPEED CONTROL CIRCUIT TROUBLE (3VZ-FE)

Terminal Trouble Condition STD Voltage
ISC1-ISC4 - E1 No Voltage Ignition Switch 9-14V

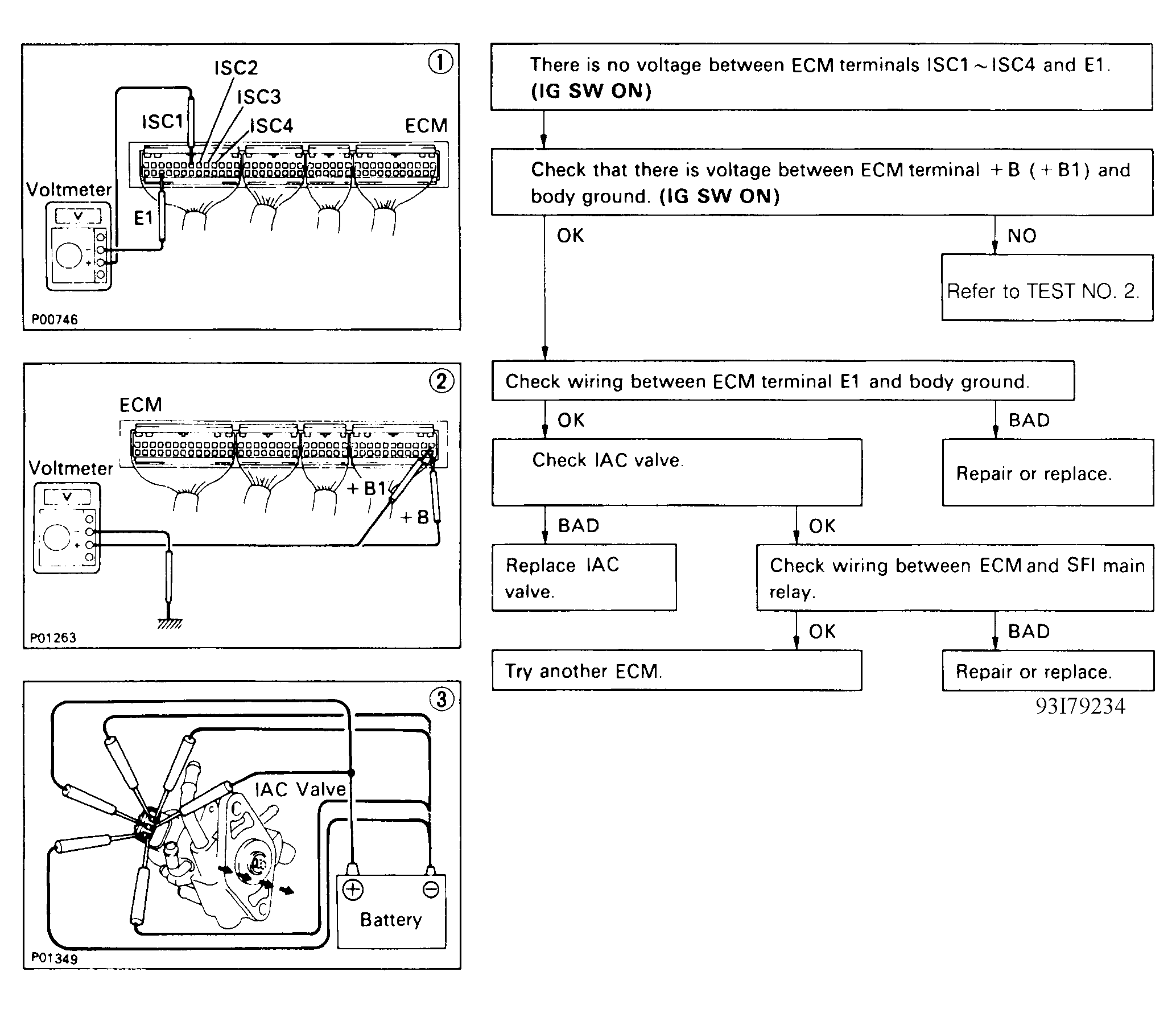

Fig 3: Test No. 10 Flow Chart (3VZ-FE) Idle Speed Control Circuit
G93I79234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

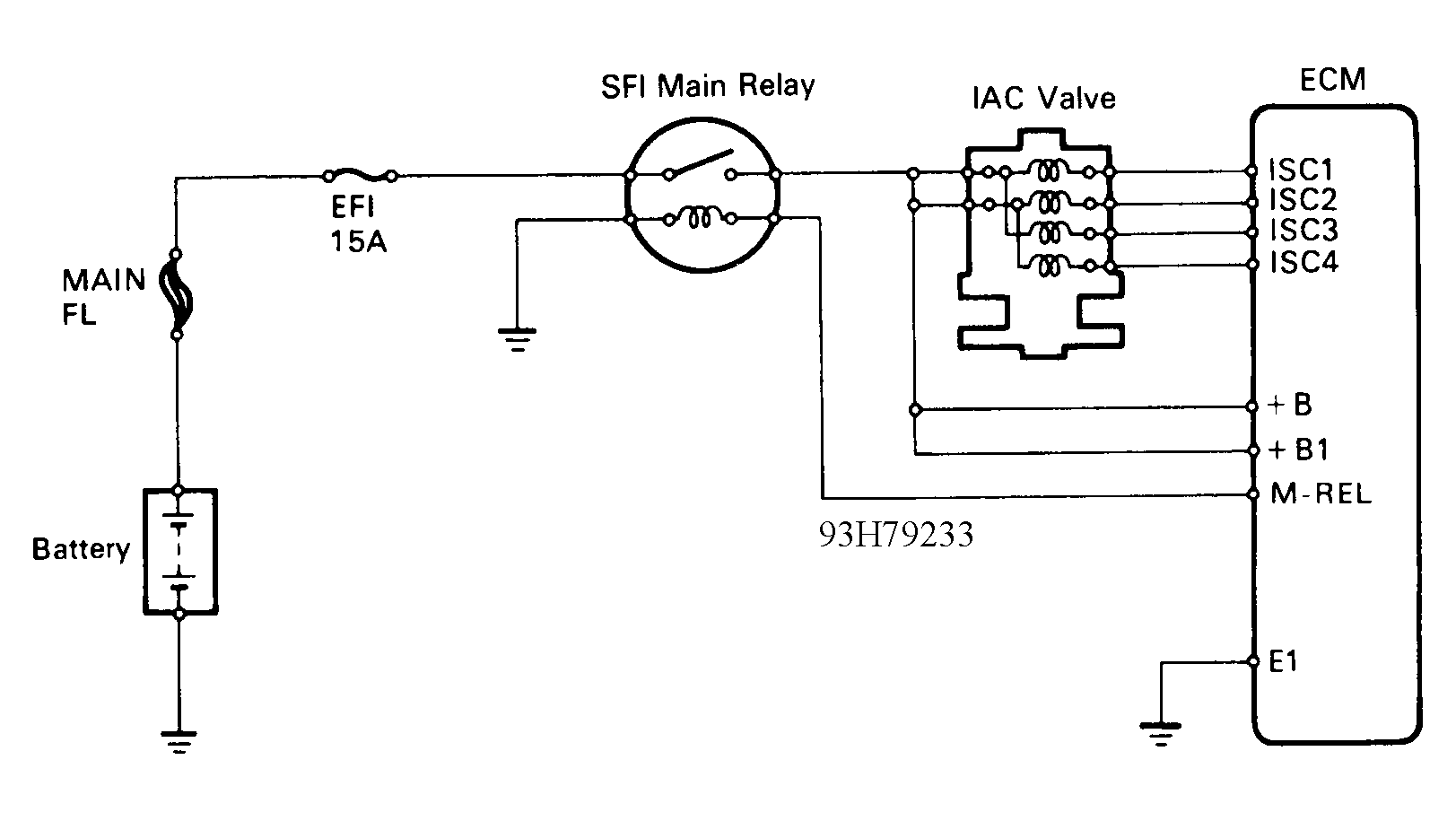

Fig 4: Test No. 10 Schematic (3VZ-FE) Idle Speed Control Circuit
G93H79233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
