Passenger's Power Window Switch

Inspect the switch between terminals. See Fig 1. If continuity is not as specified, replace the switch.

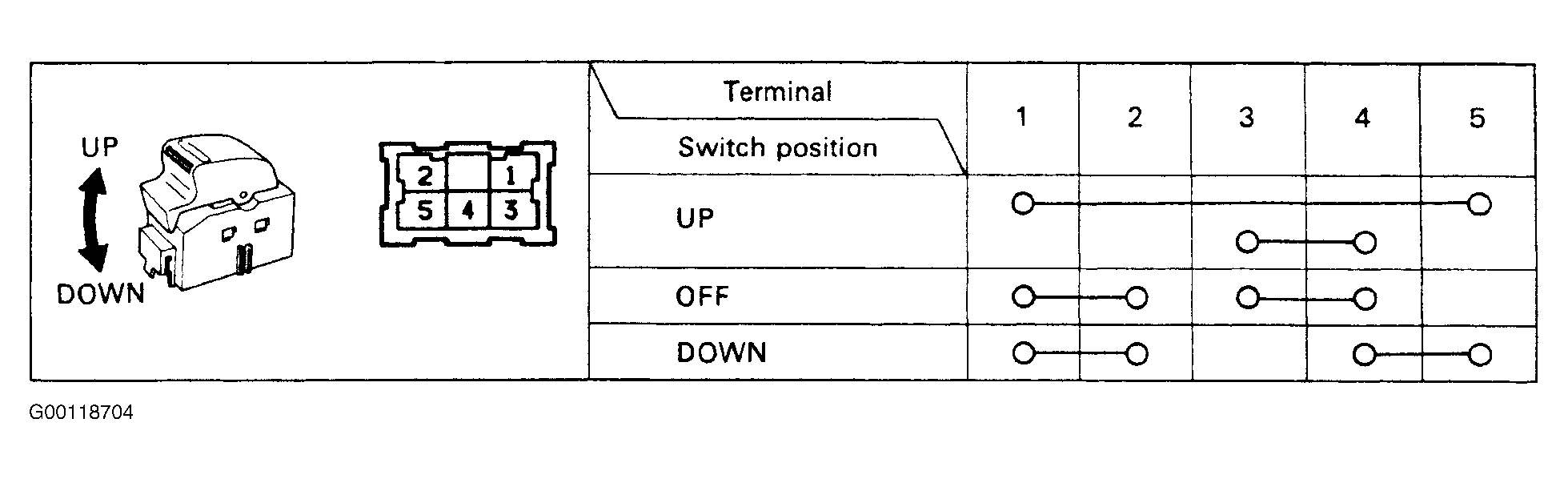

Fig 1: Testing Passenger's Power Window Switch Continuity
G00118704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
