Power Mirror Control Switch

Inspect the switch continuity between terminals. See Fig 1. If continuity is not as specified, replace the switch.

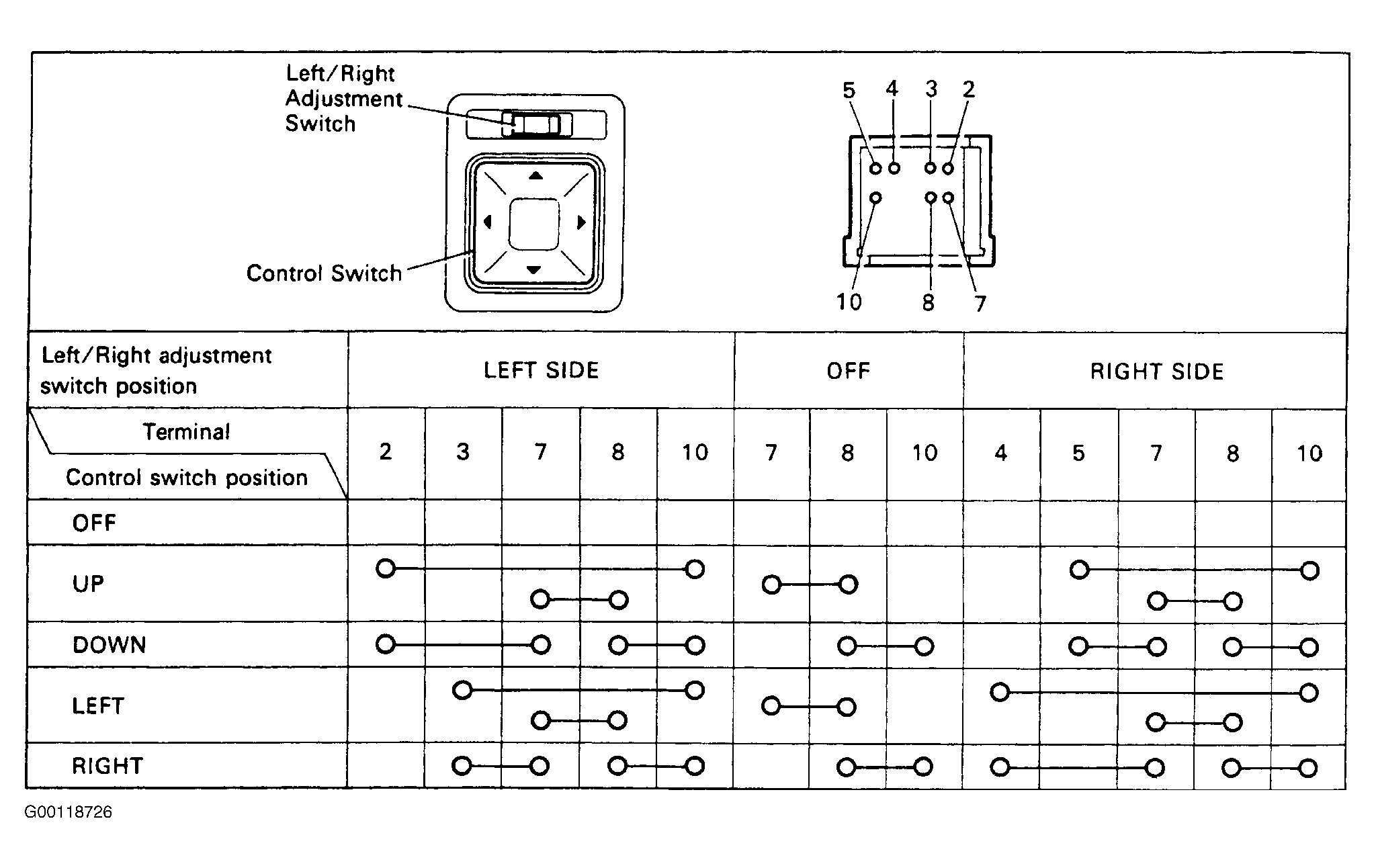

Fig 1: Testing Power Mirror Switch Continuity
G00118726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
