Pick-Up Coil Resistance

  1. Note pick-up coil terminal identification on the distributor. See Fig 1-12. Using ohmmeter, measure resistance between specified terminals and ensure resistance is within specification. See PICK-UP COIL RESISTANCE SPECIFICATIONS  table.
  2. Replace distributor assembly if pick-up coil resistance is not within specification.
PICK-UP COIL RESISTANCE SPECIFICATIONS

Application Terminals (1) Ohms
Cressida G1 & G- 125-190
Cressida G2 & G- 125-190
Cressida NE & G- 155-240
Land Cruiser G & G- 185-265
Land Cruiser NE & G- 185-265
Supra
Non-Turbo G1 & G- 125-190
Non-Turbo G2 & G- 125-190
Non-Turbo NE & G- 155-240
(1) Specification is with pick-up coil temperature of 14-104°F (-10-40°C).
Fig 1: Pick-Up Coil Terminal ID (Cressida & Supra Non-Turbo)
G92H24882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

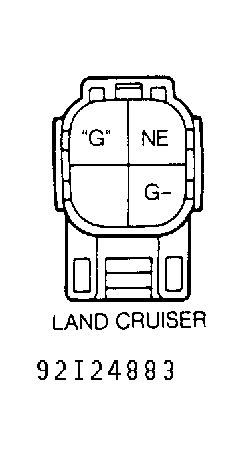

Fig 2: Identifying Pick-Up Coil Terminals (Land Cruiser)
G92I24883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
