Service Indicator & Warning Lights: Notes

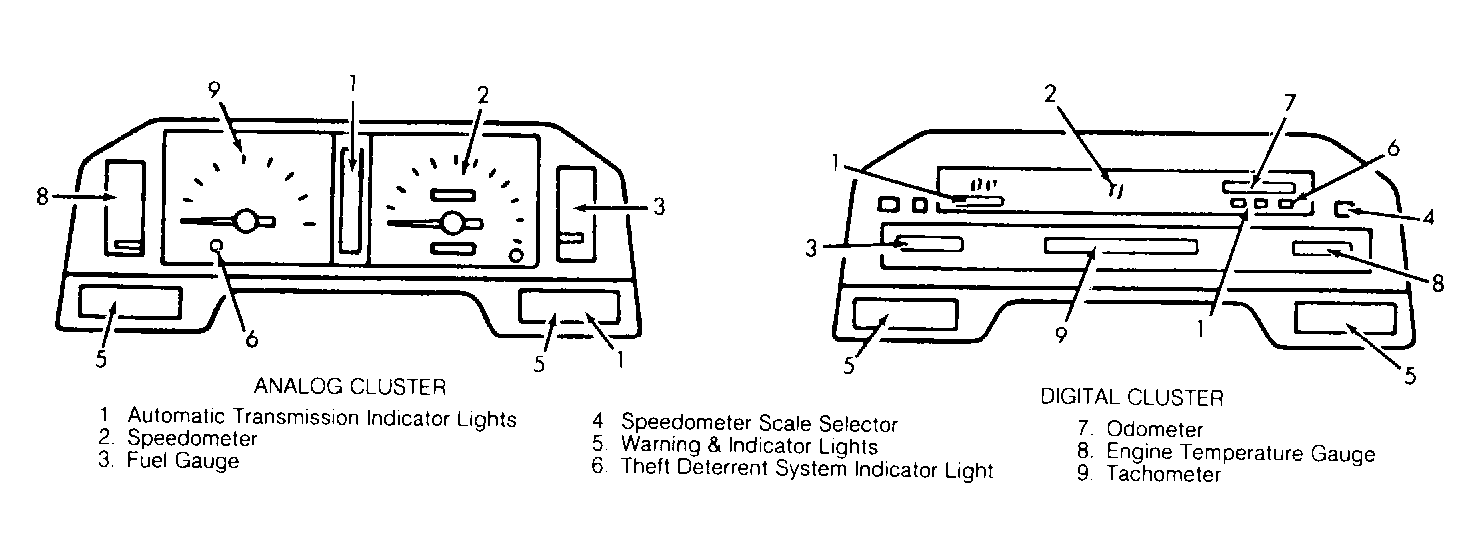

Fig 1: 1985-88 Dash Gauges & Warning Lights
G90J09689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

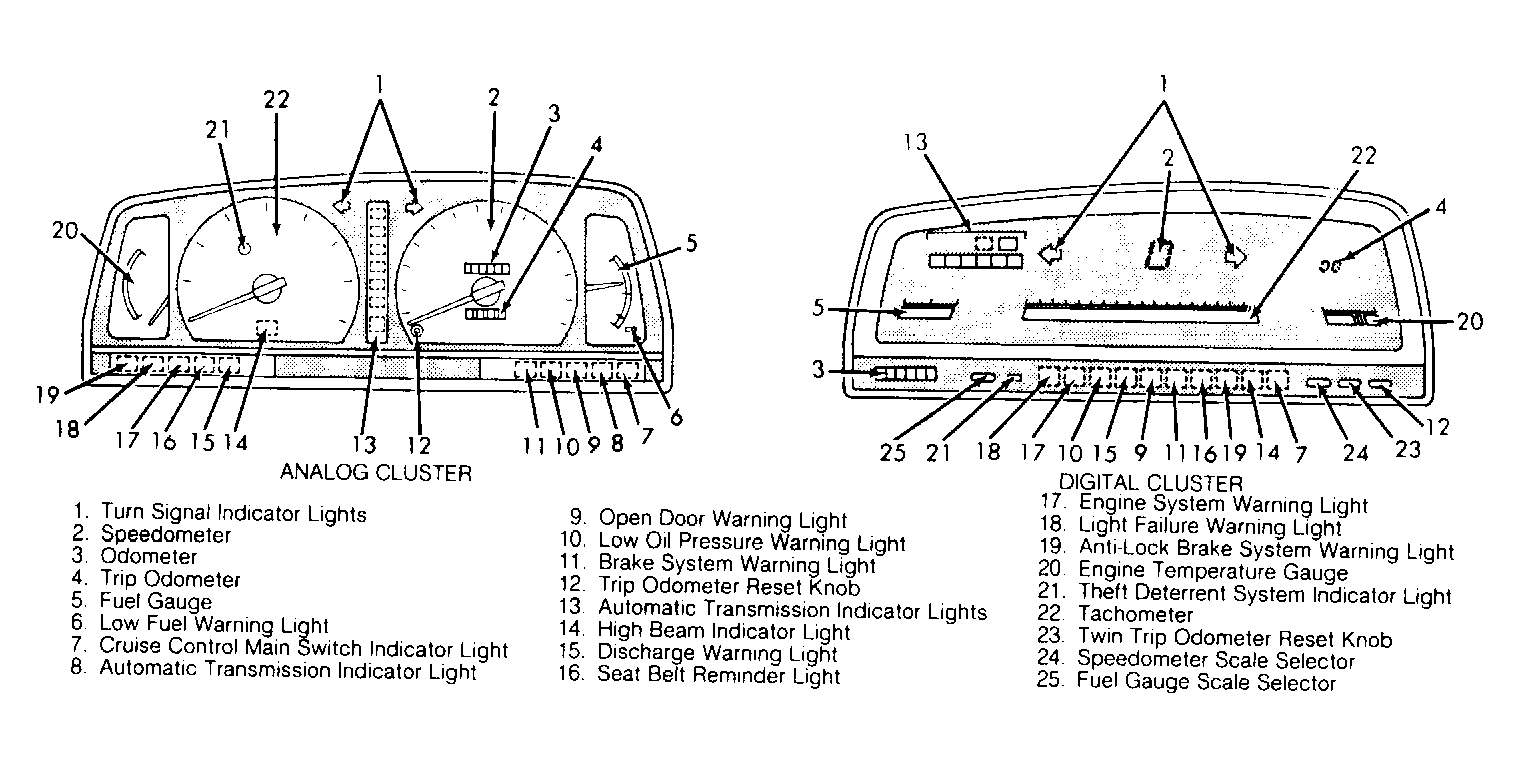

Fig 2: 1989-92 Dash Gauges & Warning Lights
G90B09690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
