Code 43/Test No. 9 - Starter Signal

CODE 43/TEST NO. 9-STARTER SIGNAL TROUBLE

No. Terminal Trouble Condition STD Voltage
7 STA-E1 No Voltage Cranking 6-14V

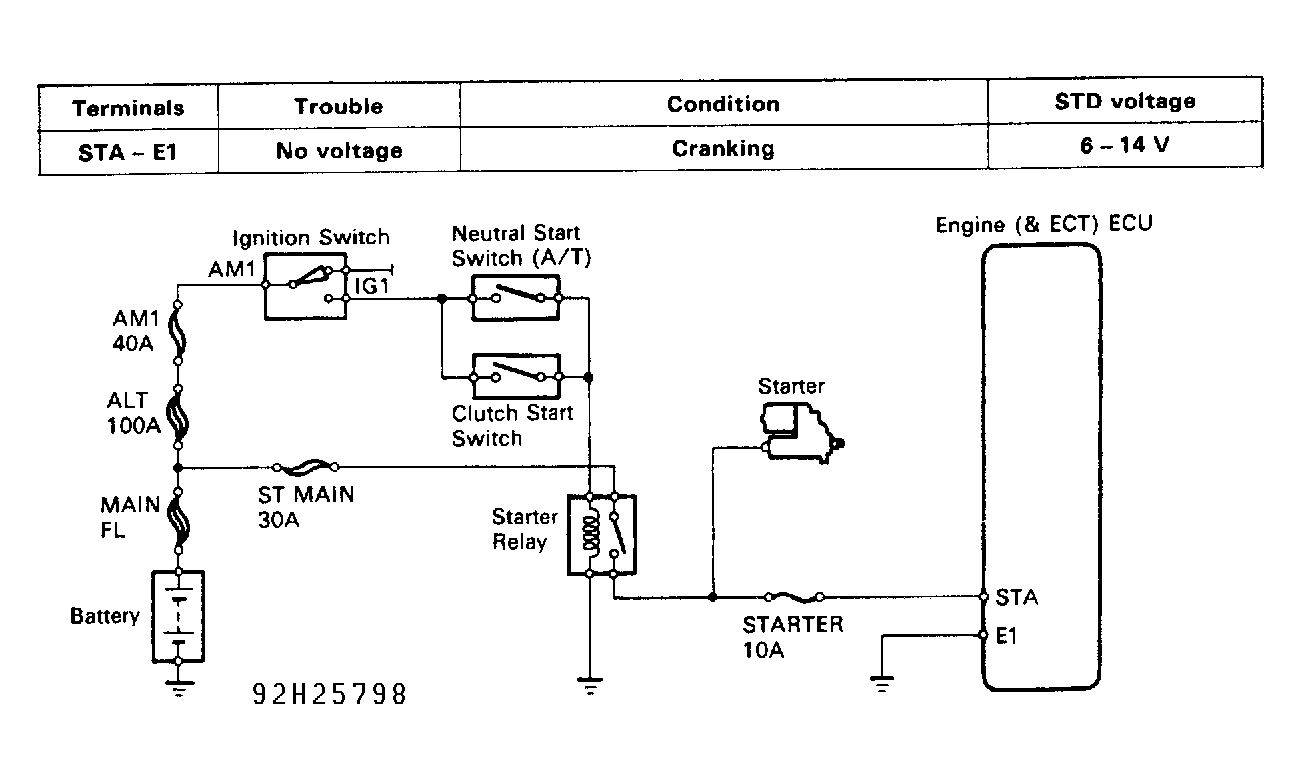

Fig 1: Code 43/Test No. 9 Schematic Starter Signal
G92H25798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Code 43/Test No. 9 Flow Chart Starter Signal
G91D17692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Code 43/Test No. 9 Component Diagram Starter Signal
G92I25799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
