Code 21, 27/Test No. 3 - Oxygen Sensor Signal

NOTE: Code 27 applies to Pickup only.

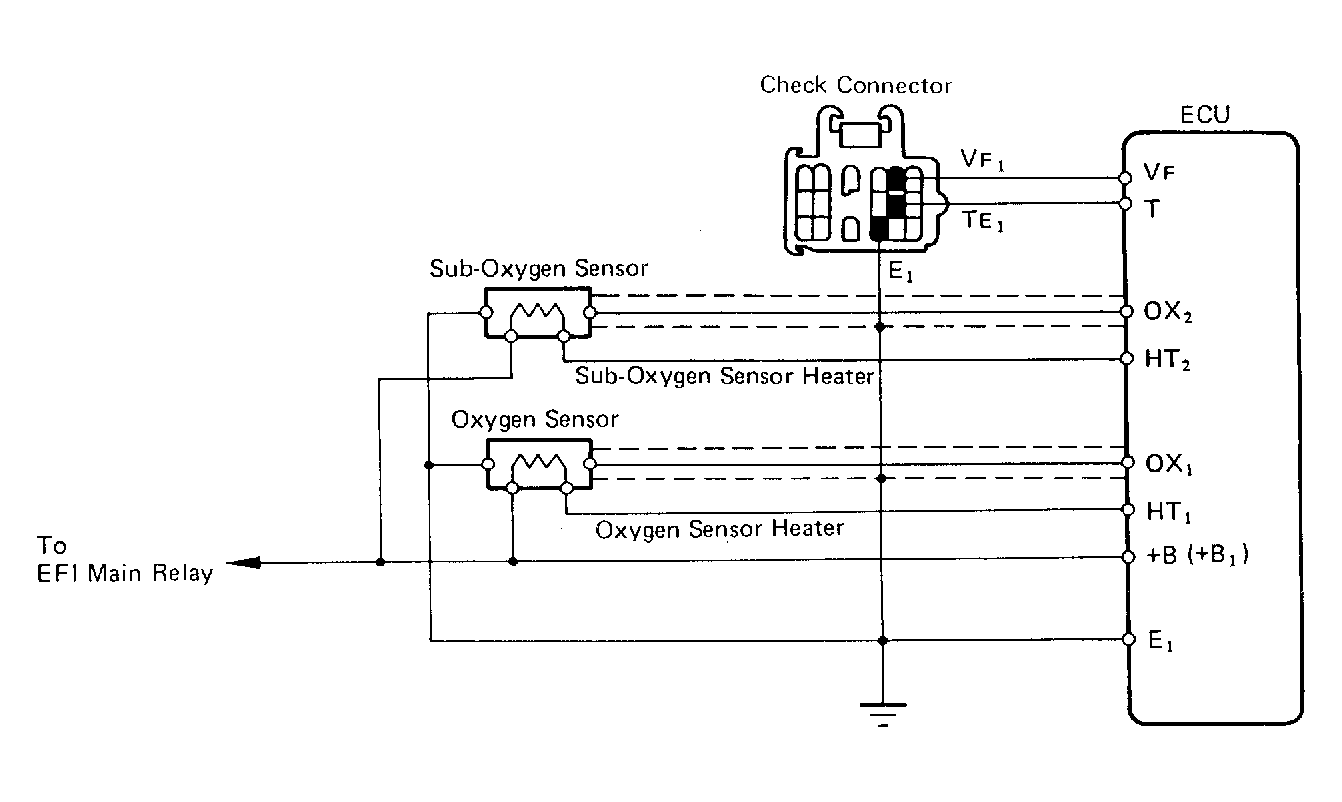

Fig 1: Code 21, 27/Test No. 3 Schematic (Pickup) Oxygen Sensor Signal
G91H18058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

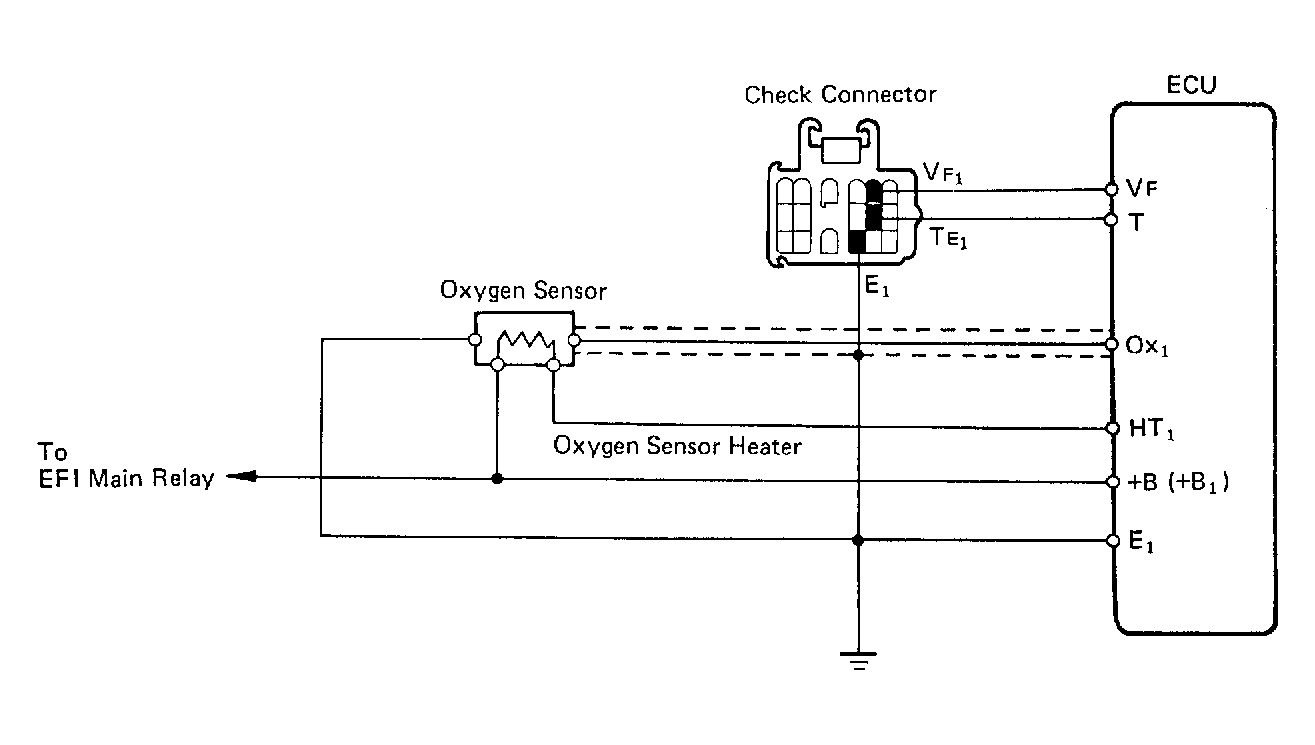

Fig 2: Code 21/Test No. 3 Schematic (4Runner) Oxygen Sensor Signal
G91I18059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Code 21, 27/Test No. 3 Flow Chart Oxygen Sensor Signal
G91J17722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
