Test 14 - A/C Switch Circuit

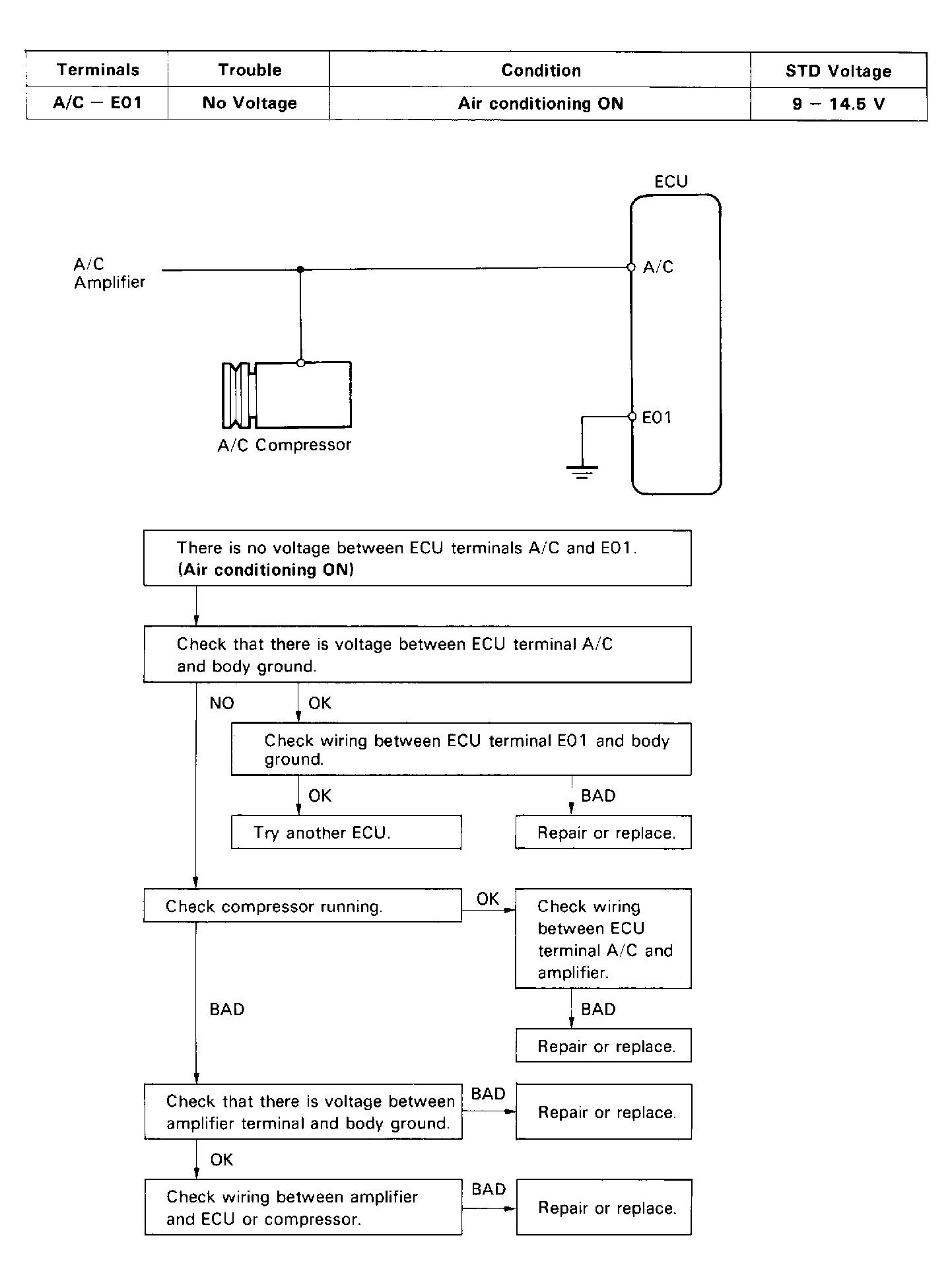

Fig 1: Test 14 Diagram & Flow Chart

G118855

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
