Test A: Inspection Of Power Source

For test procedure, refer to illustrations. See Fig 1 and Fig 2 .

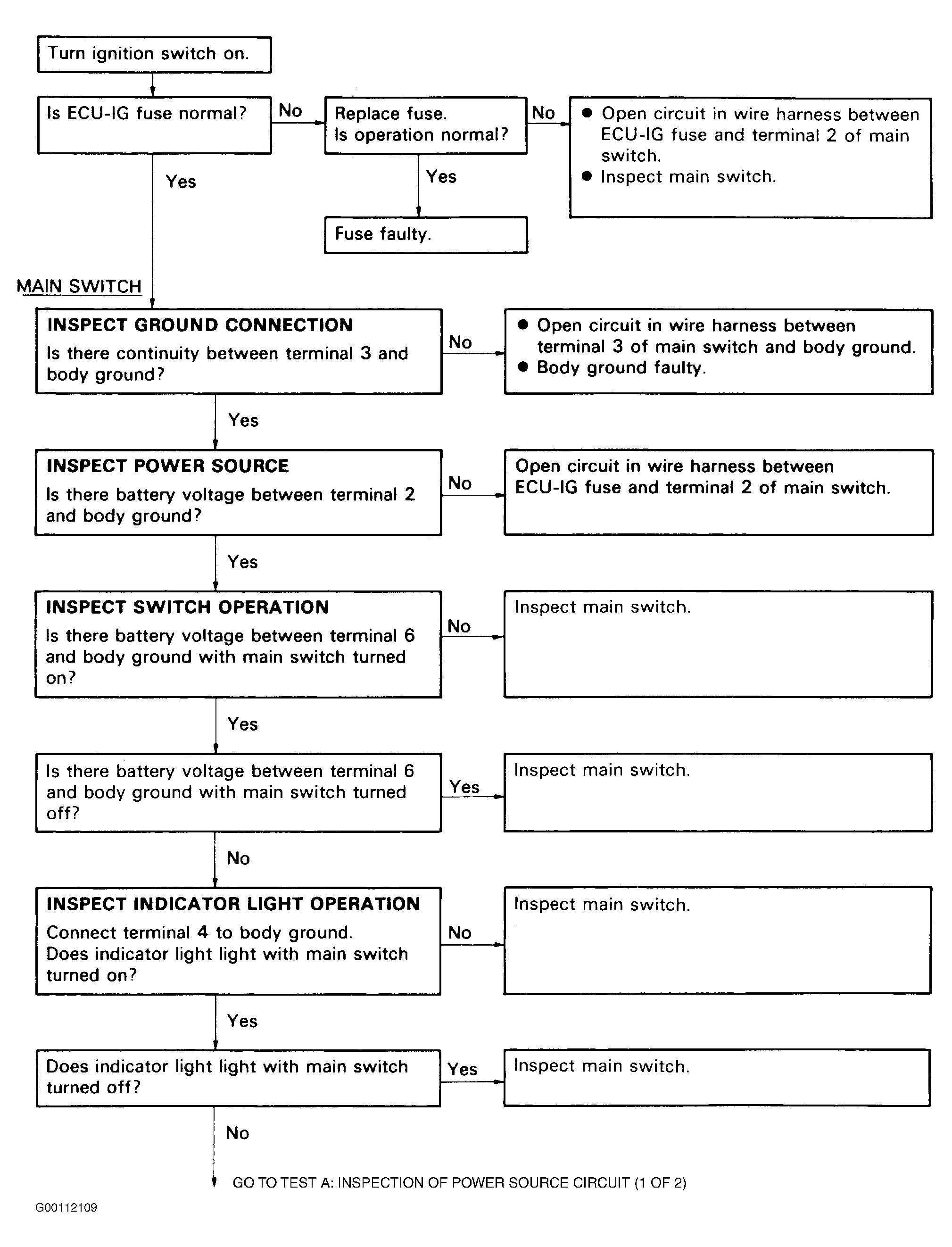

Fig 1: Test A: Inspection Of Power Source (1 Of 2 )
G00112109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

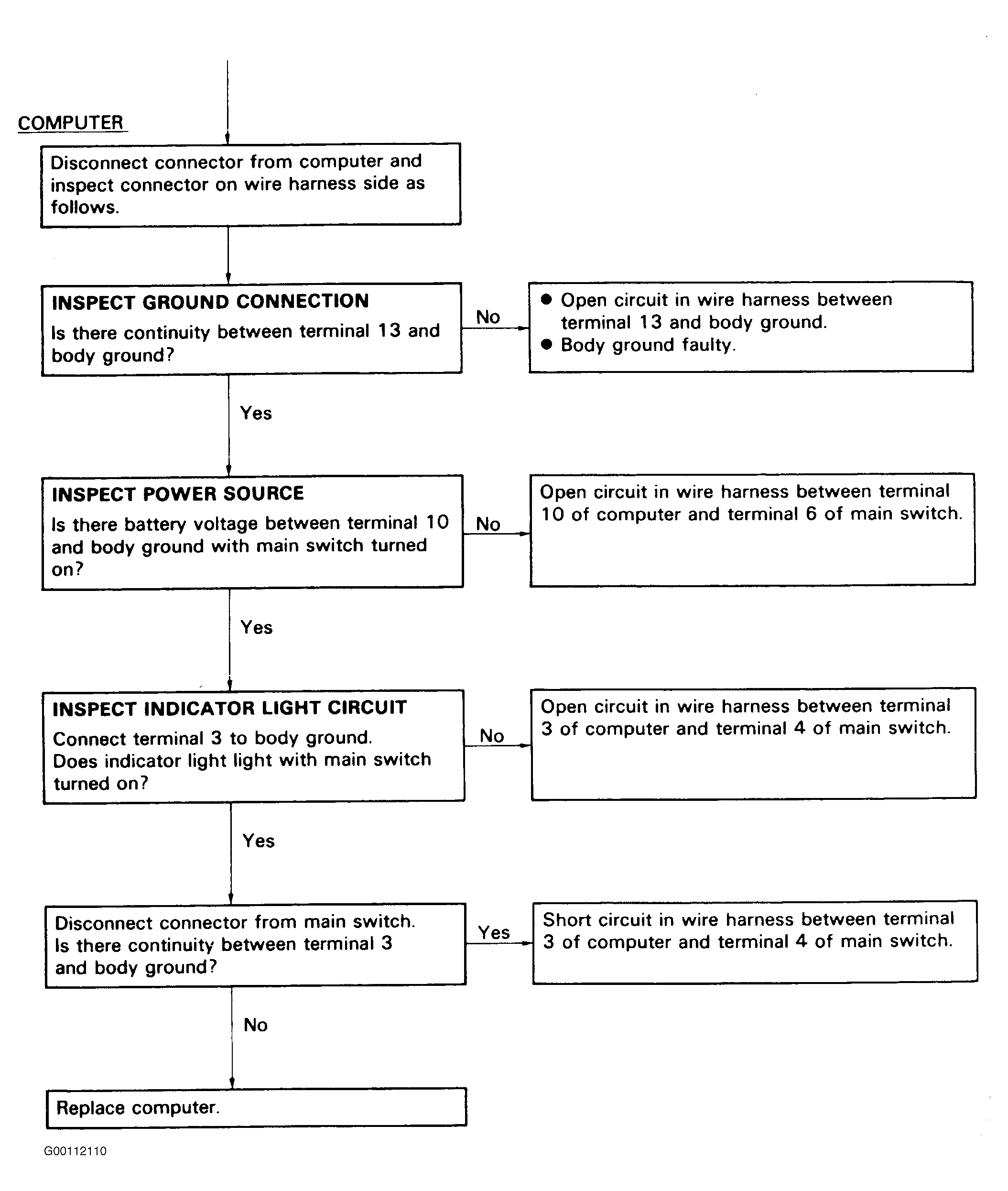

Fig 2: Test A: Inspection Of Power Source (2 Of 2)
G00112110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
