Component Locations

For component locations, refer to illustrations. See Fig 1 and Fig 2 .

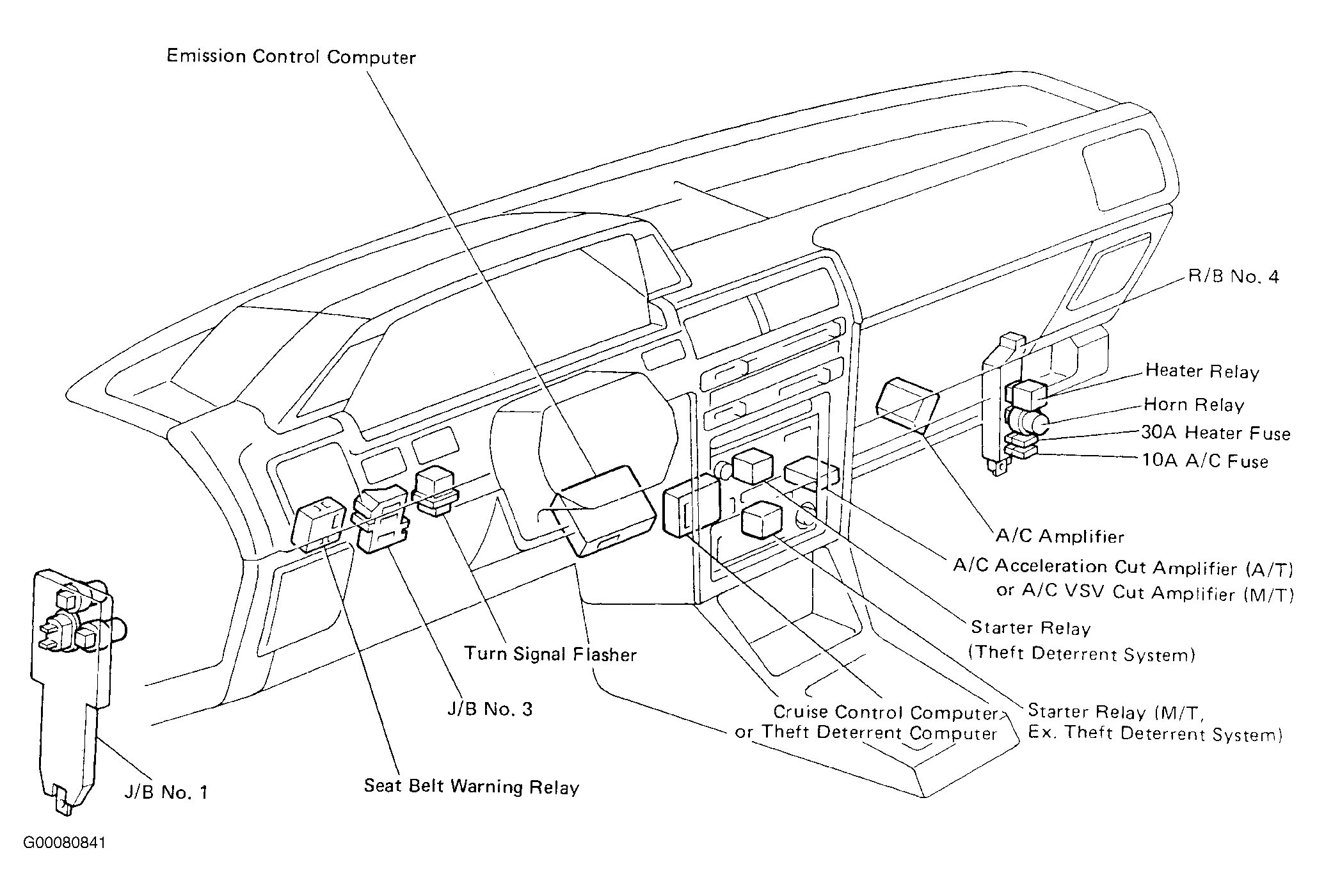

Fig 1: Locating Theft Deterrent System Components (1988)
G00080841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

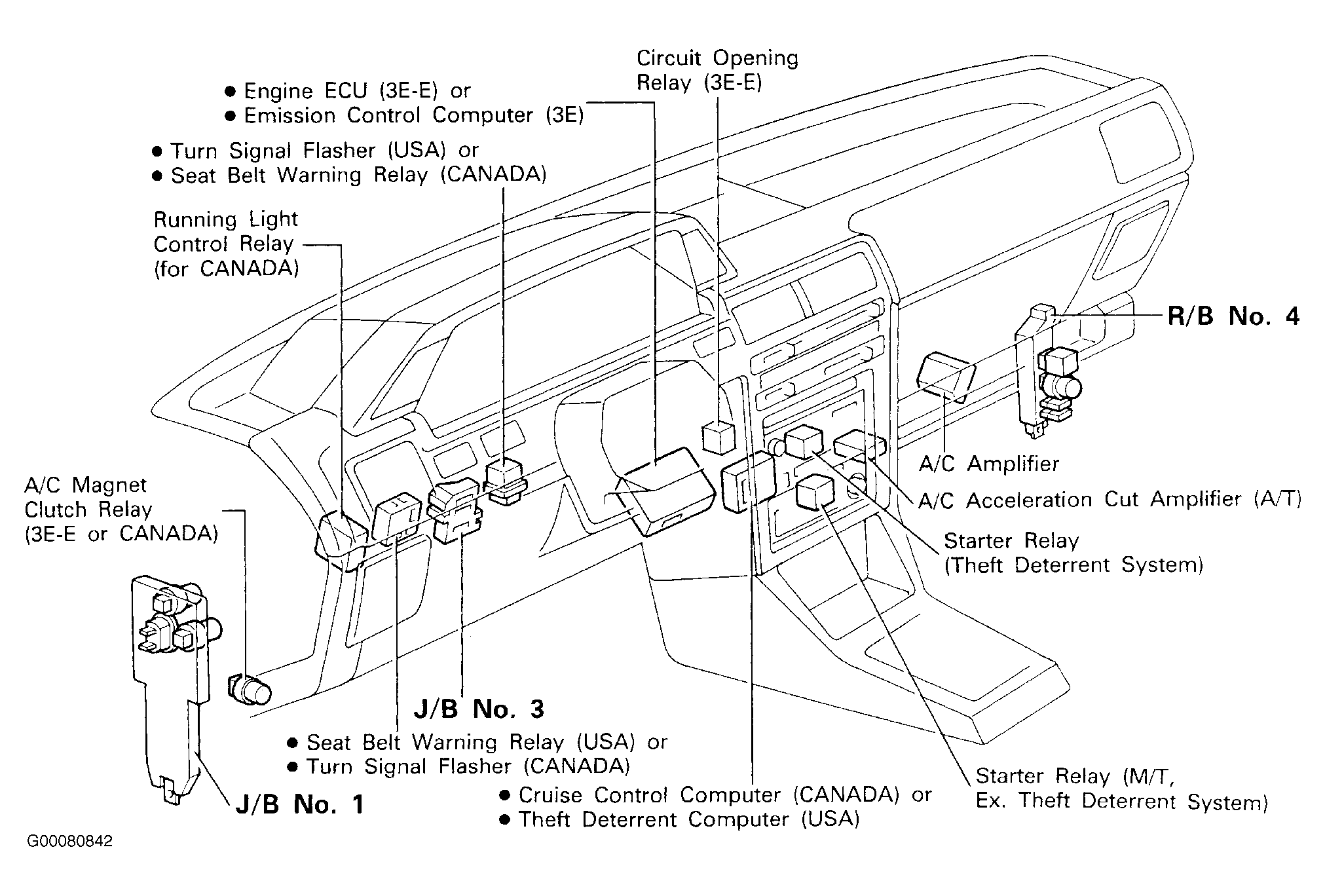

Fig 2: Locating Theft Deterrent System Components (1989-90)
G00080842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
