Test 5 Or Code 24 - Intake Air Temperature Sensor Signal
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test 5 Or Code 24 - Intake Air Temperature Sensor Signal

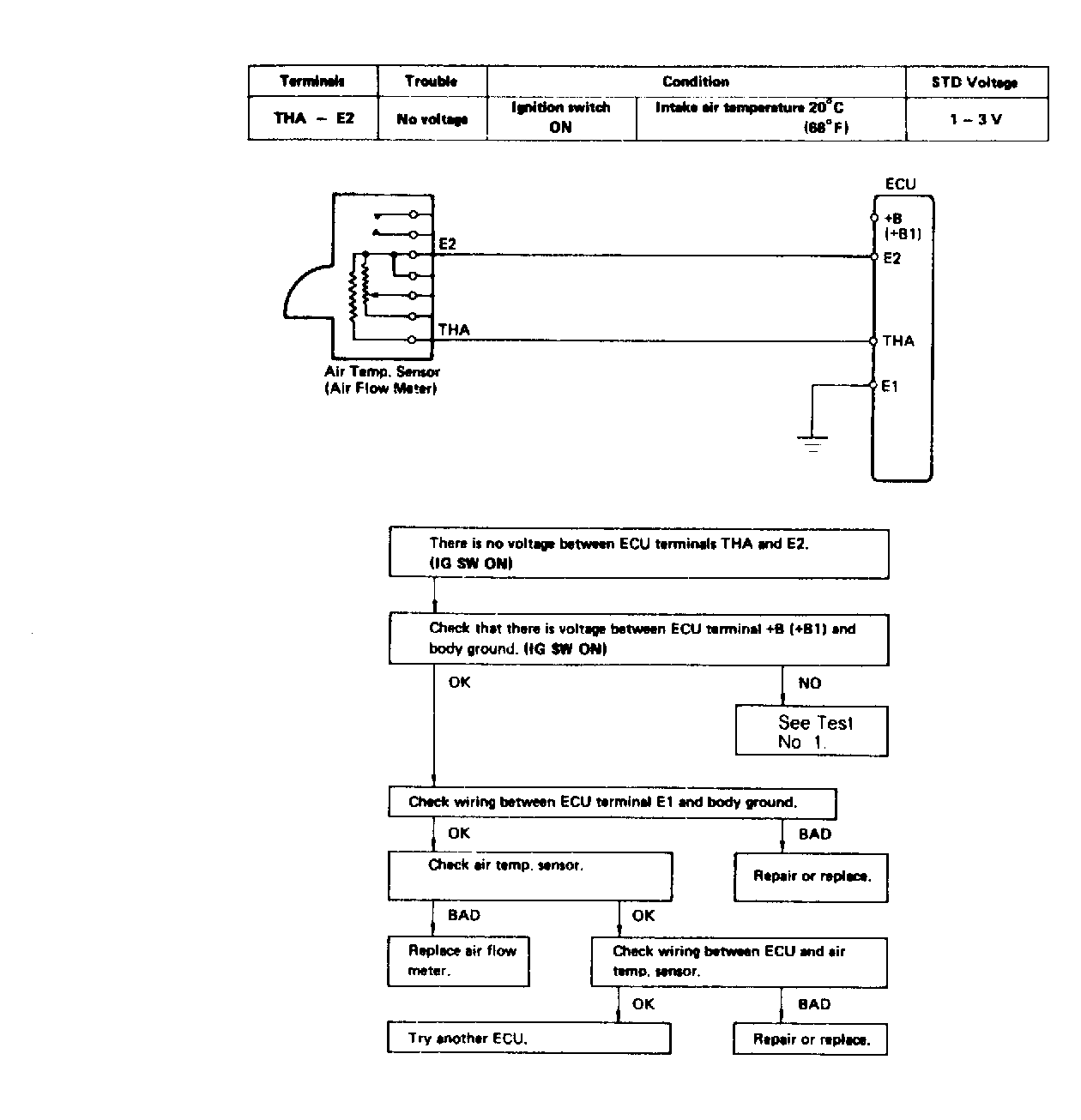

Fig 1: Test 5 or Code 24 Diagram & Flow Chart (Non-Turbo)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

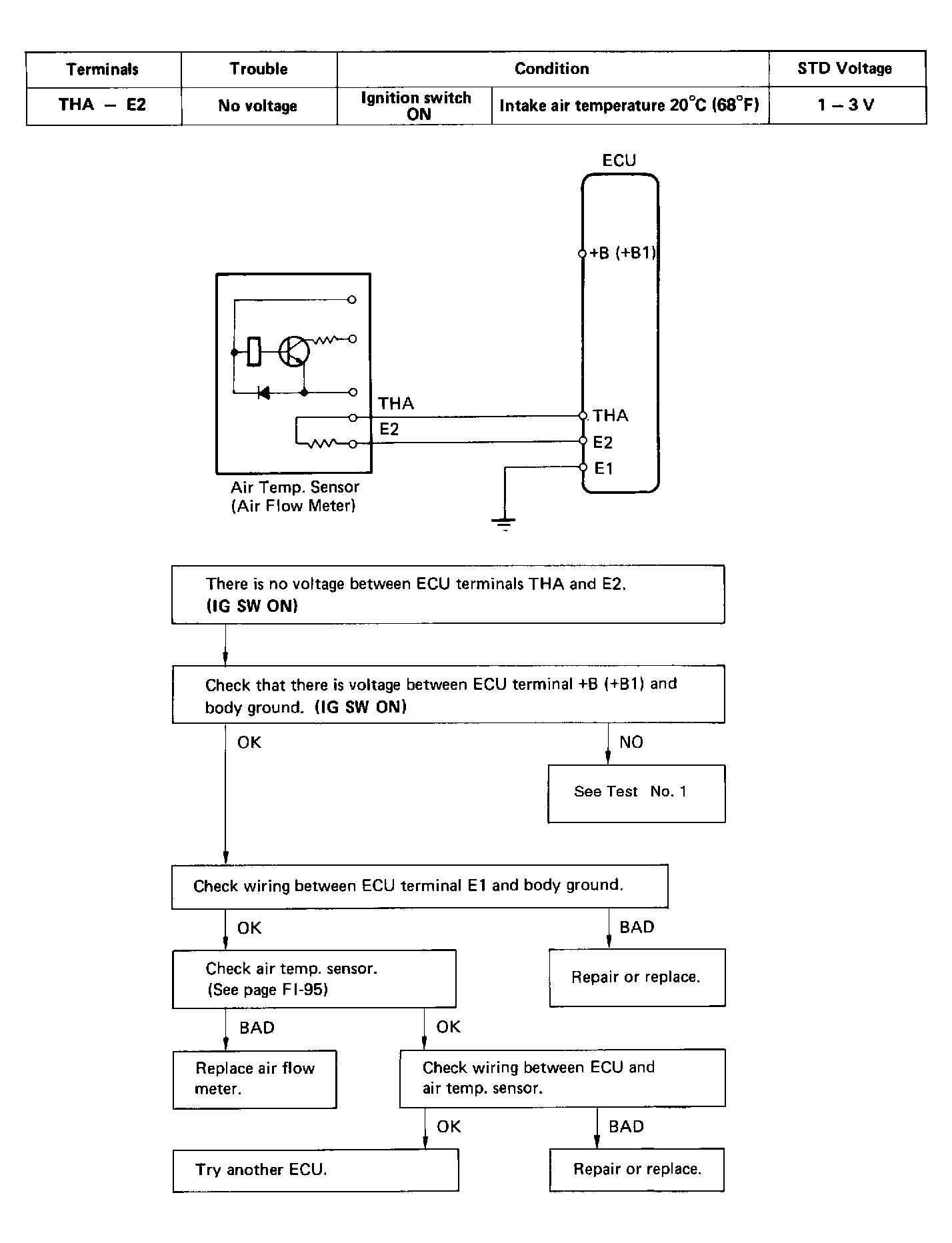

Fig 2: Test 5 or Code 24 Diagram & Flow Chart (Turbo)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
