Engine Controls - Tests W/Codes - V6
>>
Test 9 - Injector Circuit
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test 9 - Injector Circuit

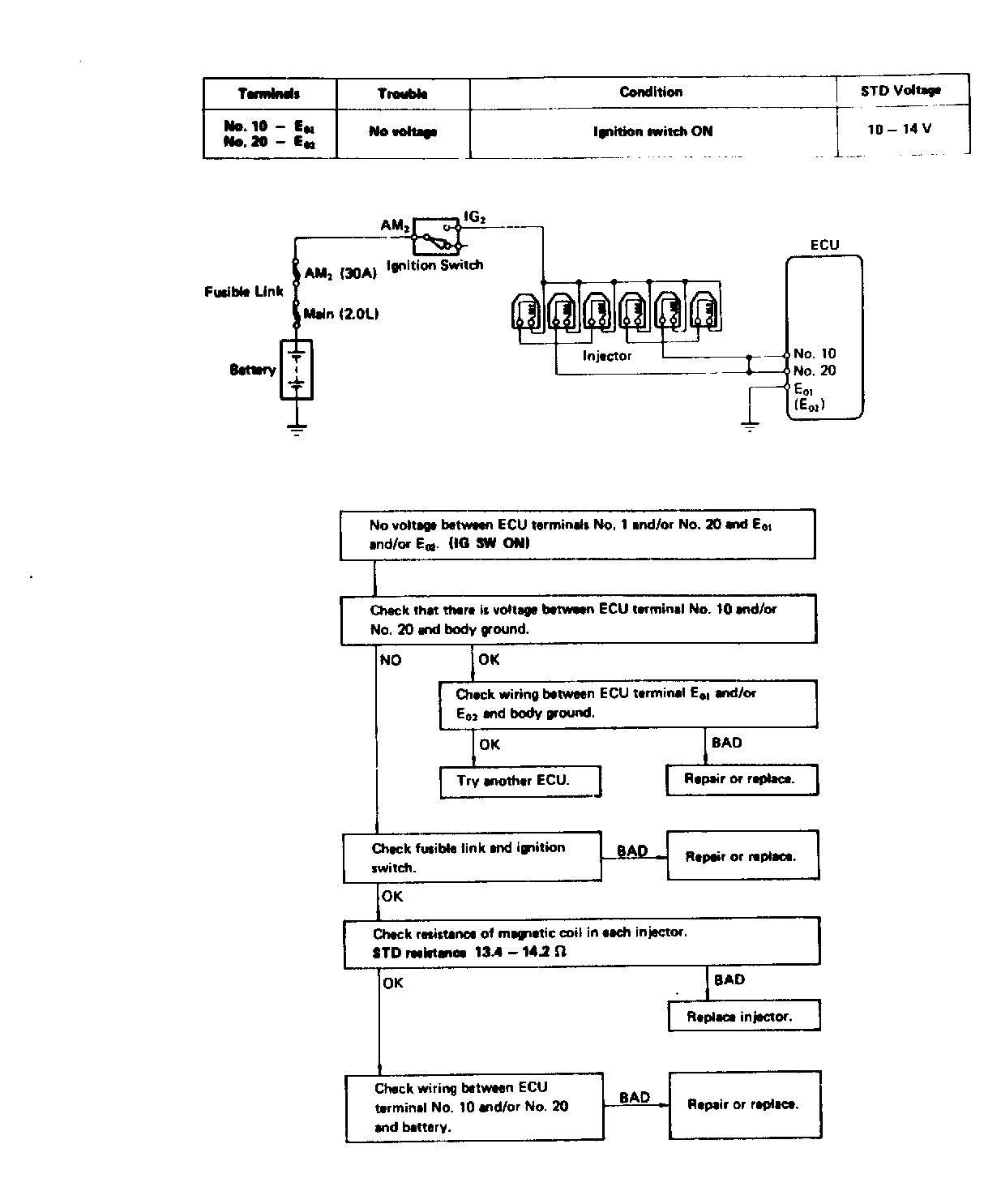

Fig 1: Test 9 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
