Engine Controls - Tests W/Codes - V6
>>
Test 4 Or Code 22 - Coolant Temperature Sensor Signal
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test 4 Or Code 22 - Coolant Temperature Sensor Signal

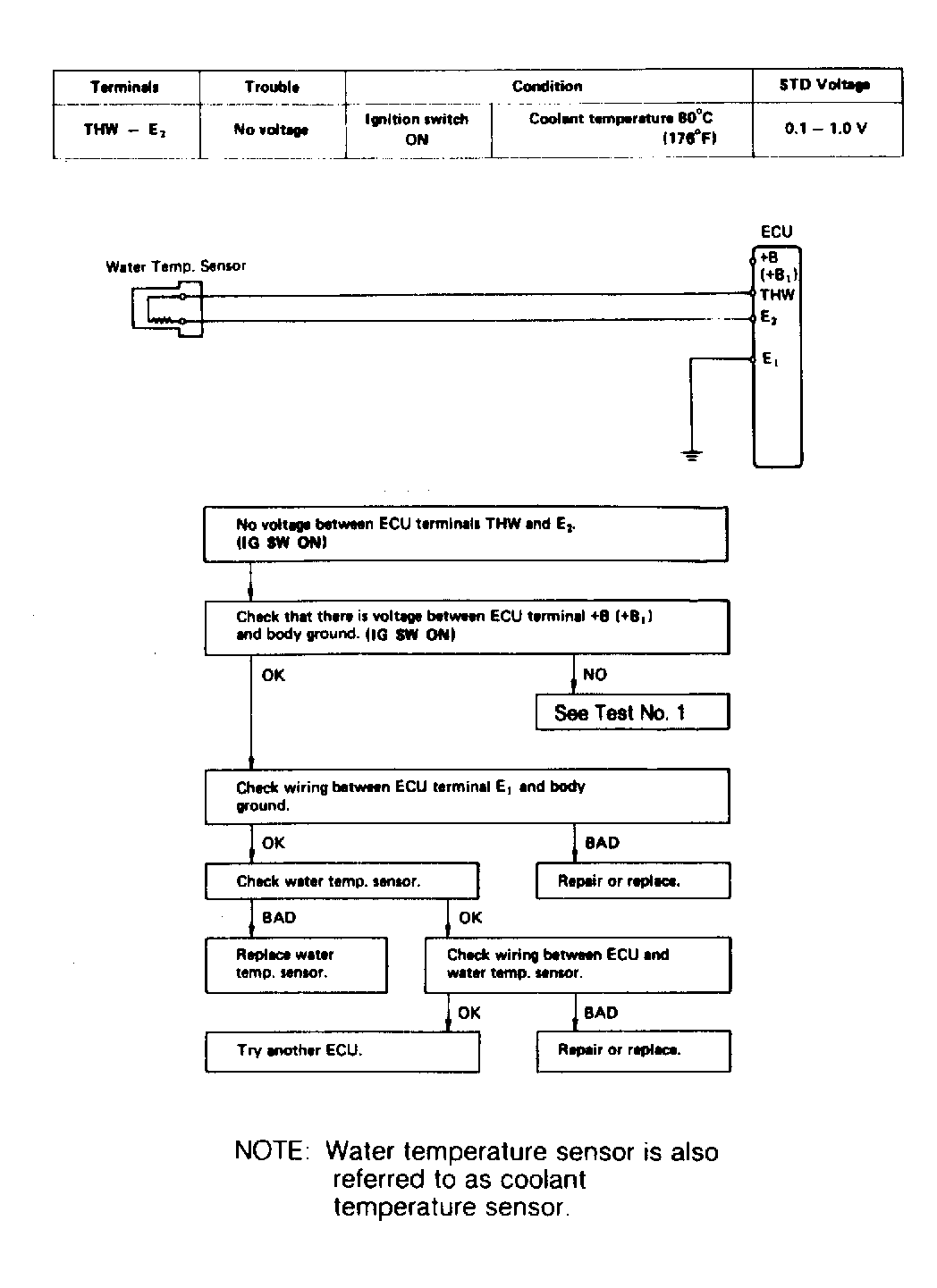

Fig 1: Test 4 Or Code 22 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
Water temperature sensor is also referred to as coolant temperature sensor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
