Test 13- A/C Switch Circuit

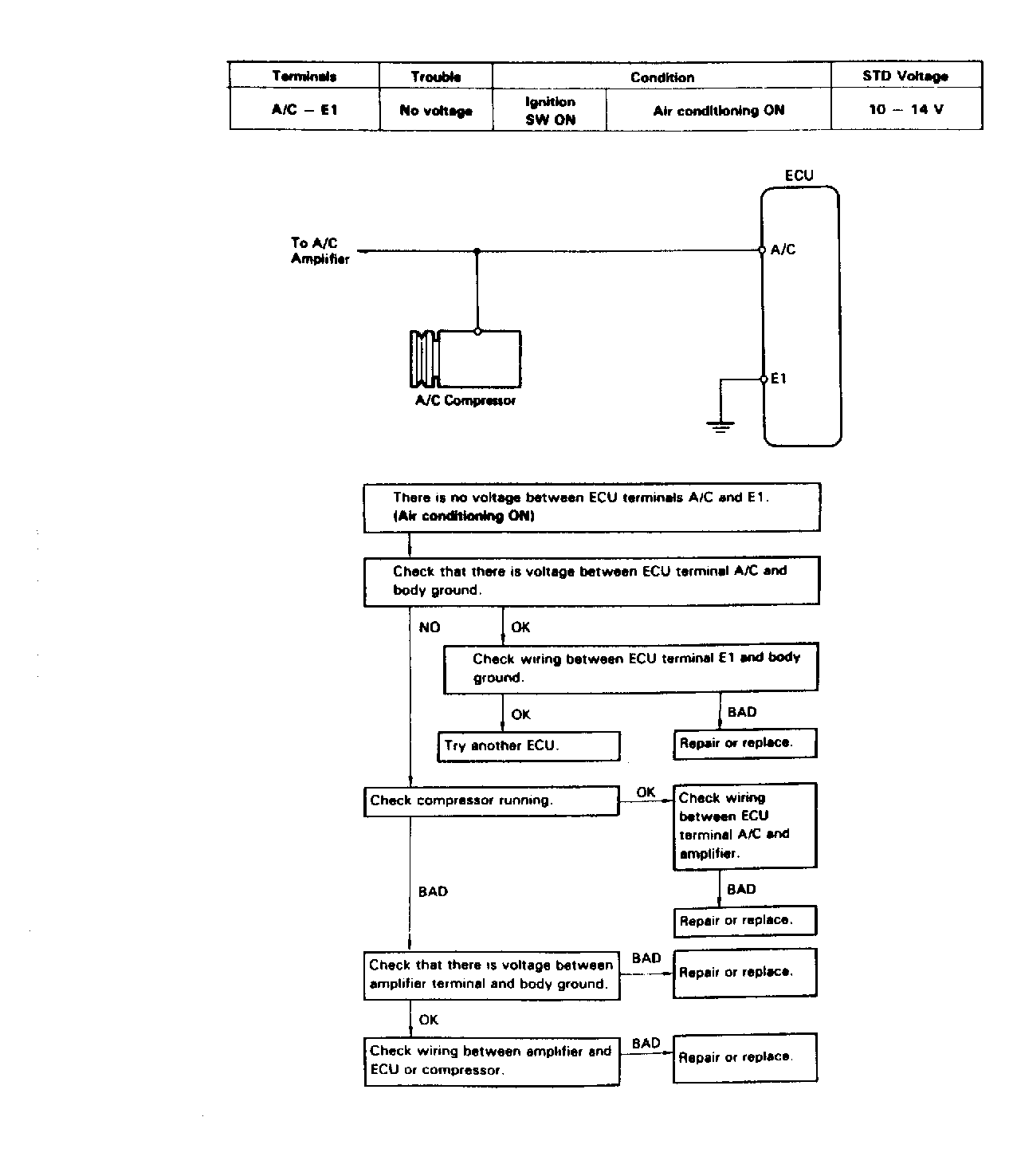

Fig 1: Test No. 13 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
