Corolla Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
4A-FE & 4A-GE Diagnostic Circuit Check
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
4A-FE & 4A-GE Diagnostic Circuit Check

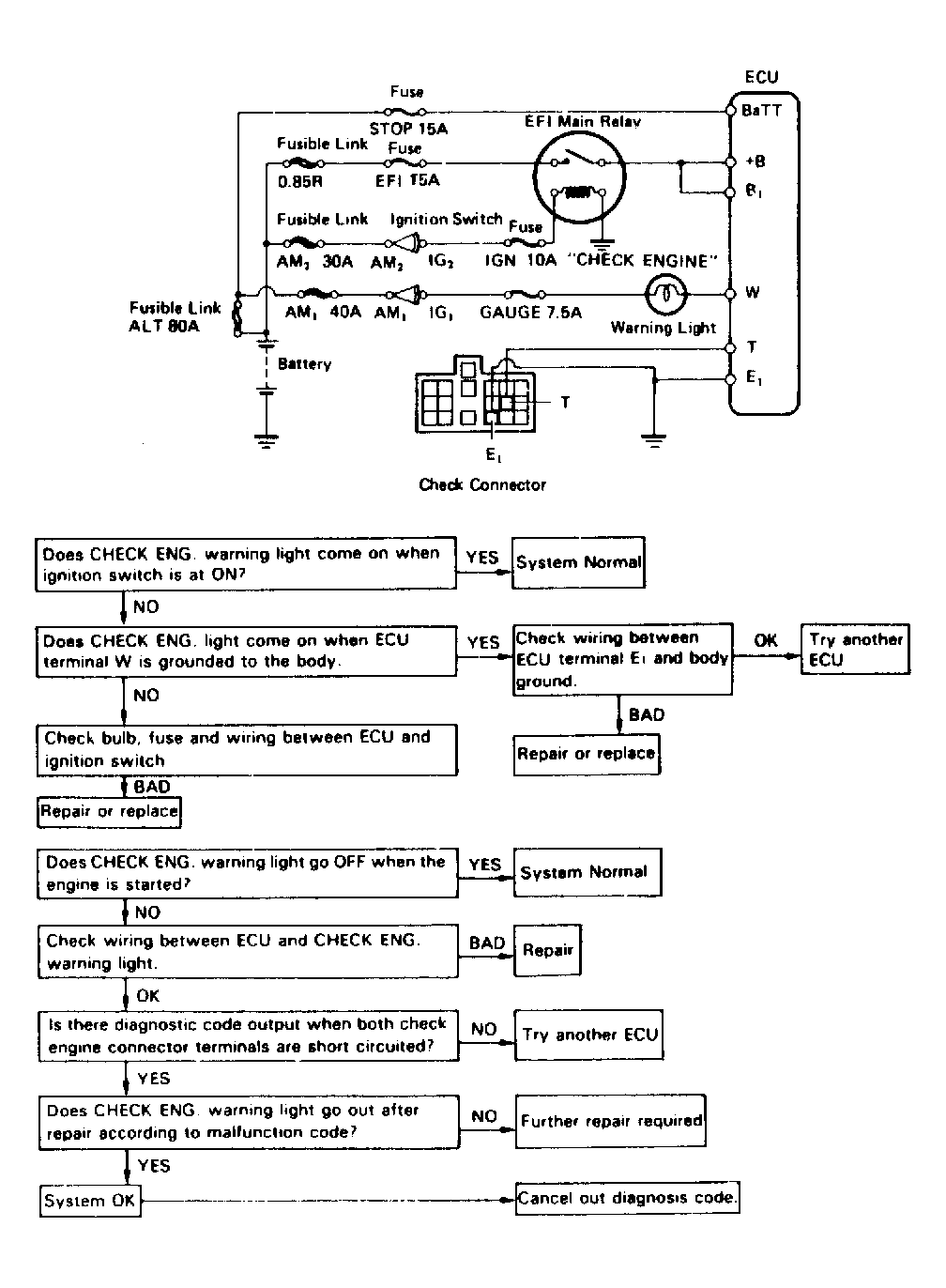

Fig 1: 4A-FE & 4A-GE Diagnostic Circuit Check Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
