Stop Light Switch

Inspect the switch continuity between terminals. See Fig 1. If continuity is not as specified, replace the switch.

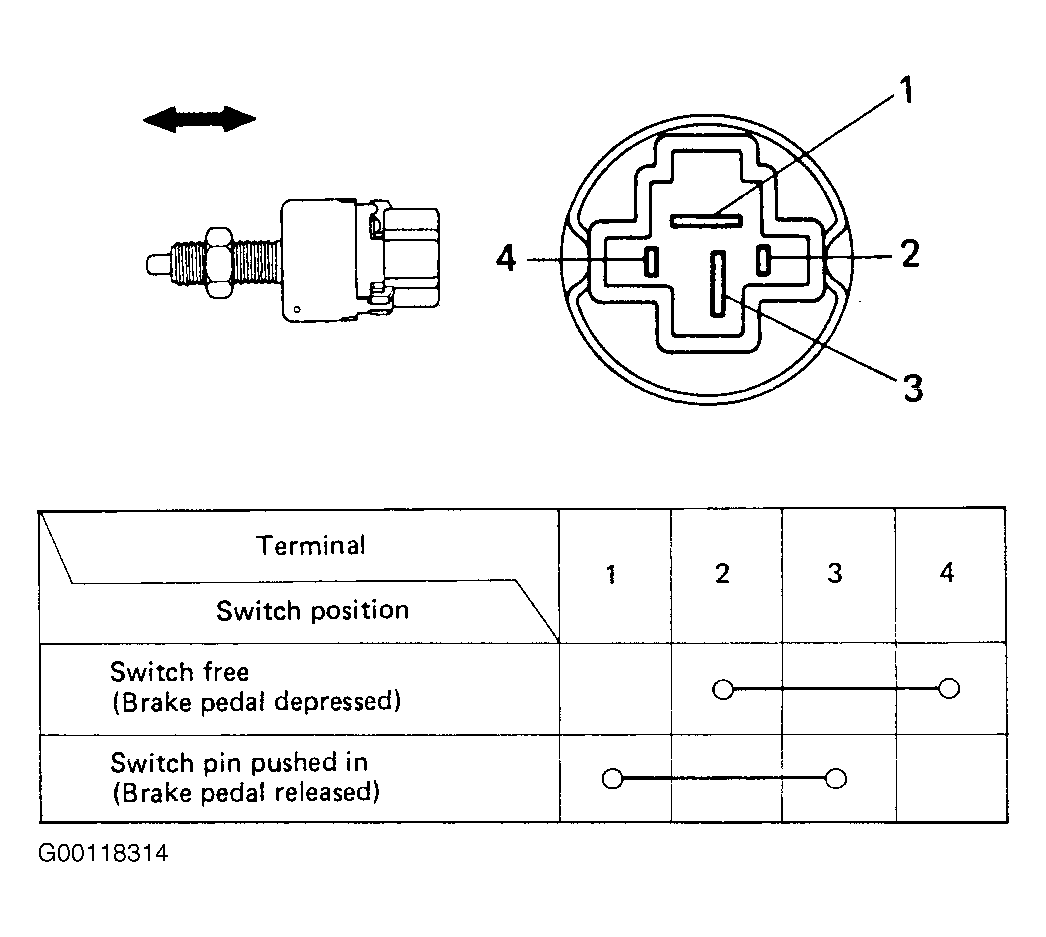

Fig 1: Testing Stop Light Switch Continuity
G00118314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
