Test 7 Or Code 31, 32 - Airflow Meter Signal

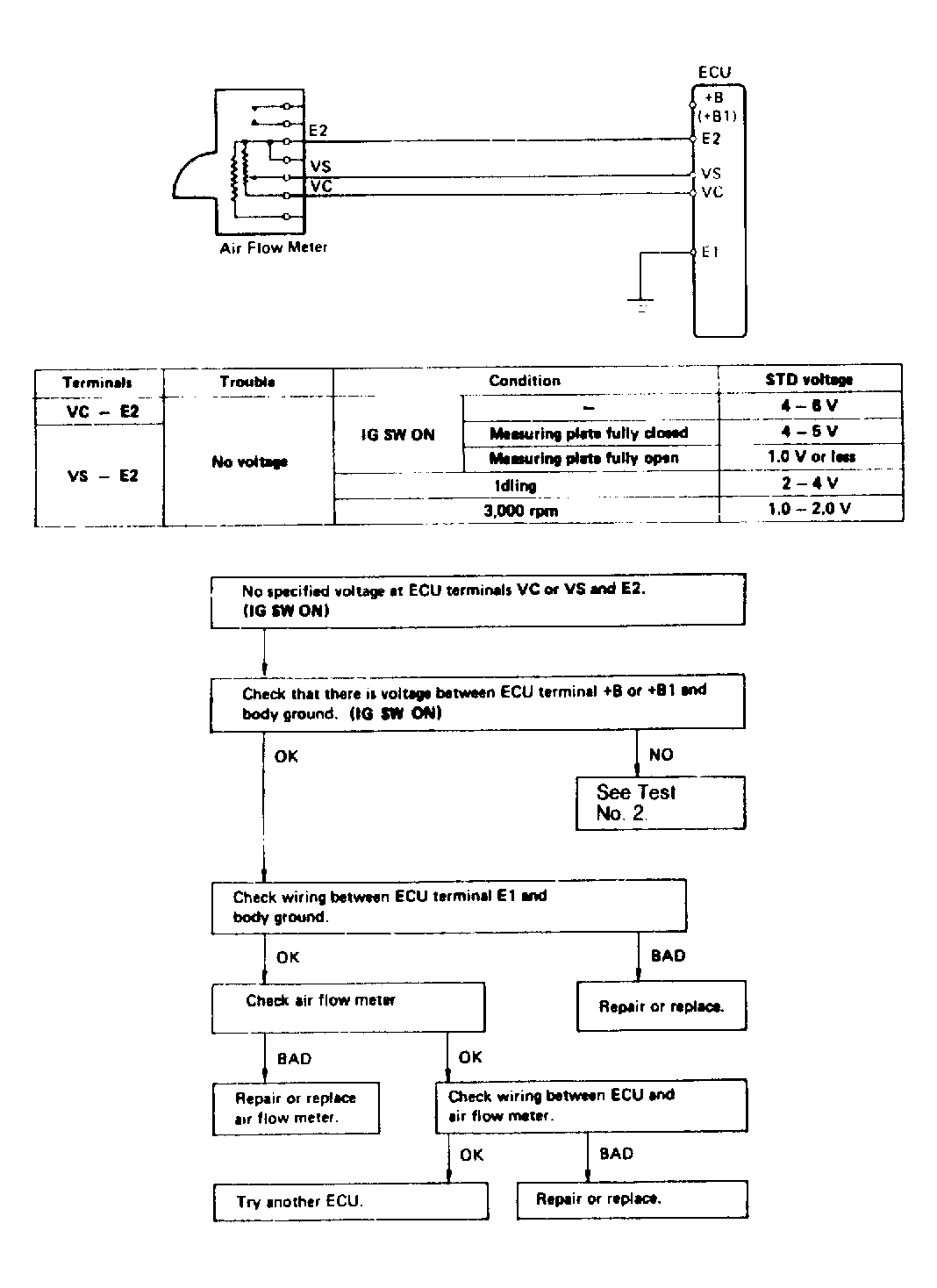

Fig 1: 3S-FE Test No. 7 or Code 31, 32 Diagram & Flow Cart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

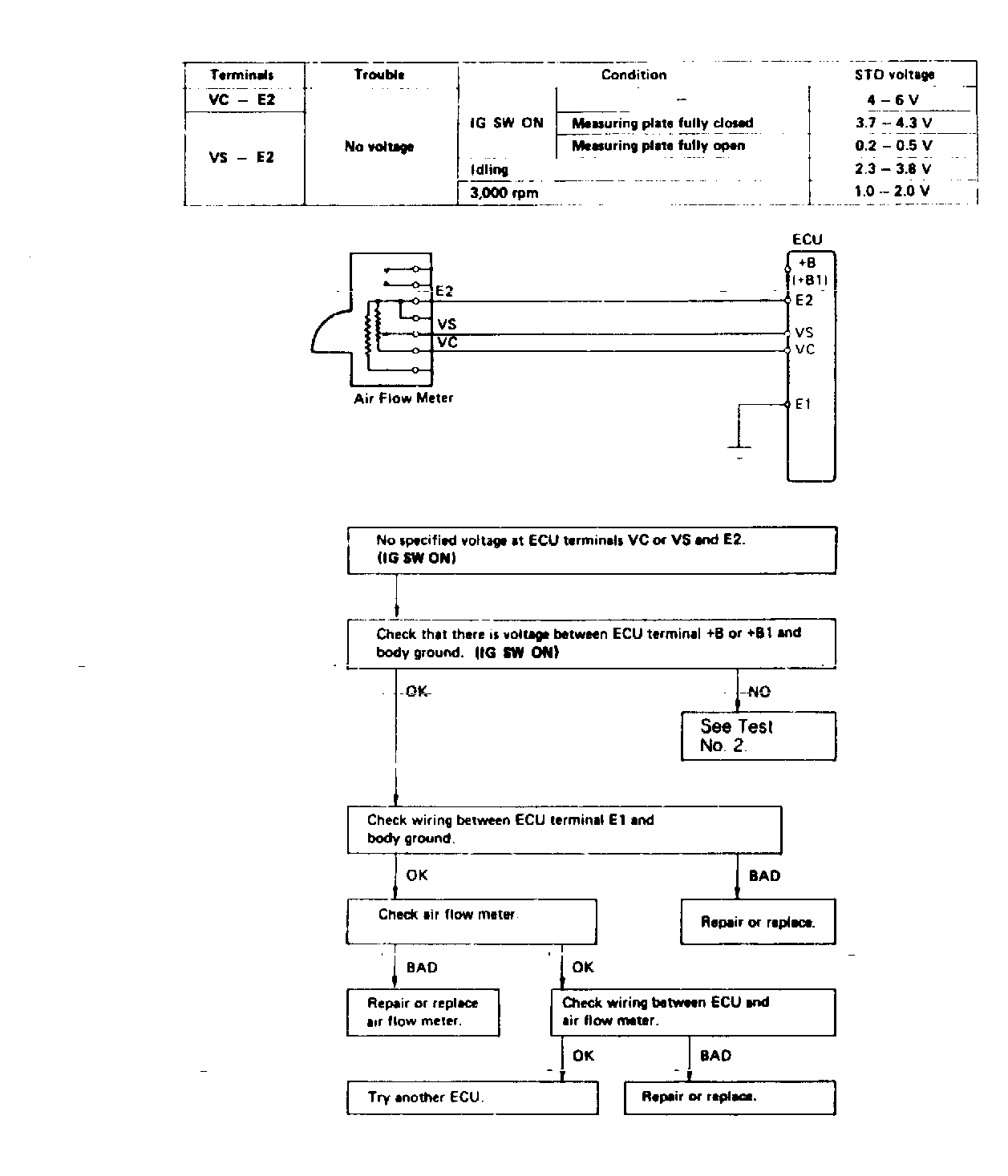

Fig 2: 3S-GE & 3S-GTE Test No. 7 or Code 31, 32 Diagram & Flow Chart
