Test 7 Or Code 71 - EGR System Malfunction

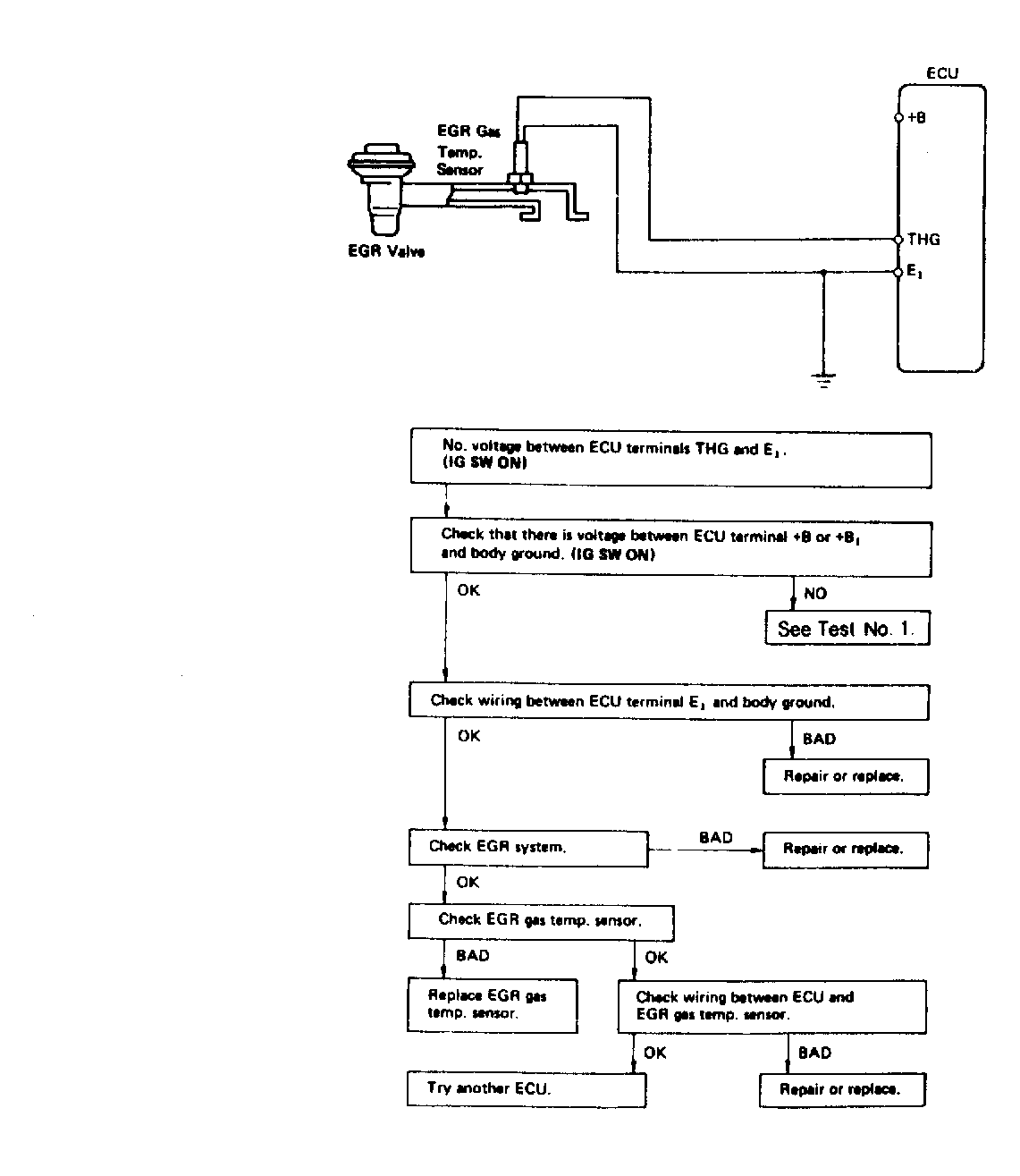

Fig 1: Test 7 or Code 71 Diagram & Flow Chart (22R)
G118765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
