Wiring Diagrams

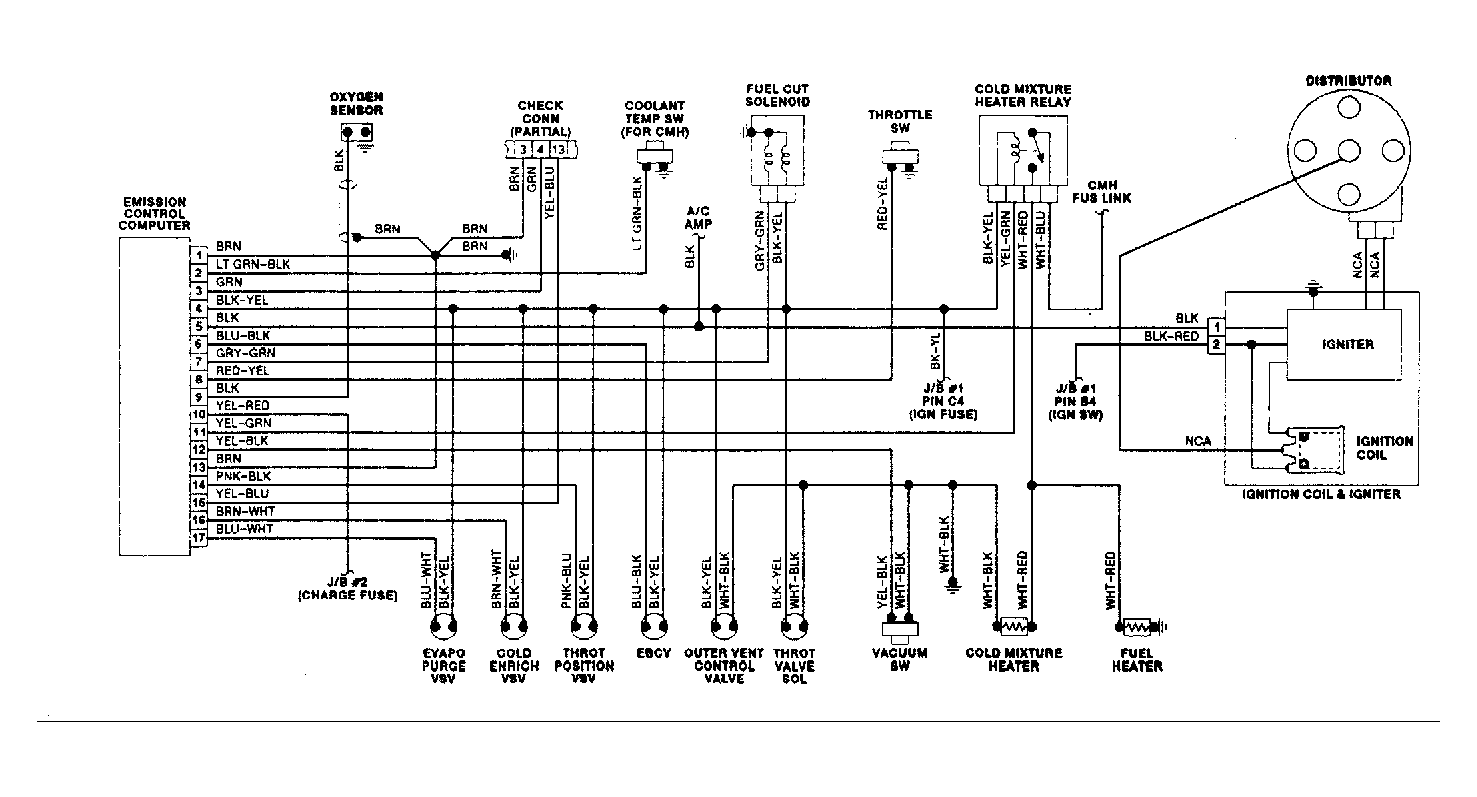

Fig 1: Tercel Sedan Wiring Diagram
G95479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

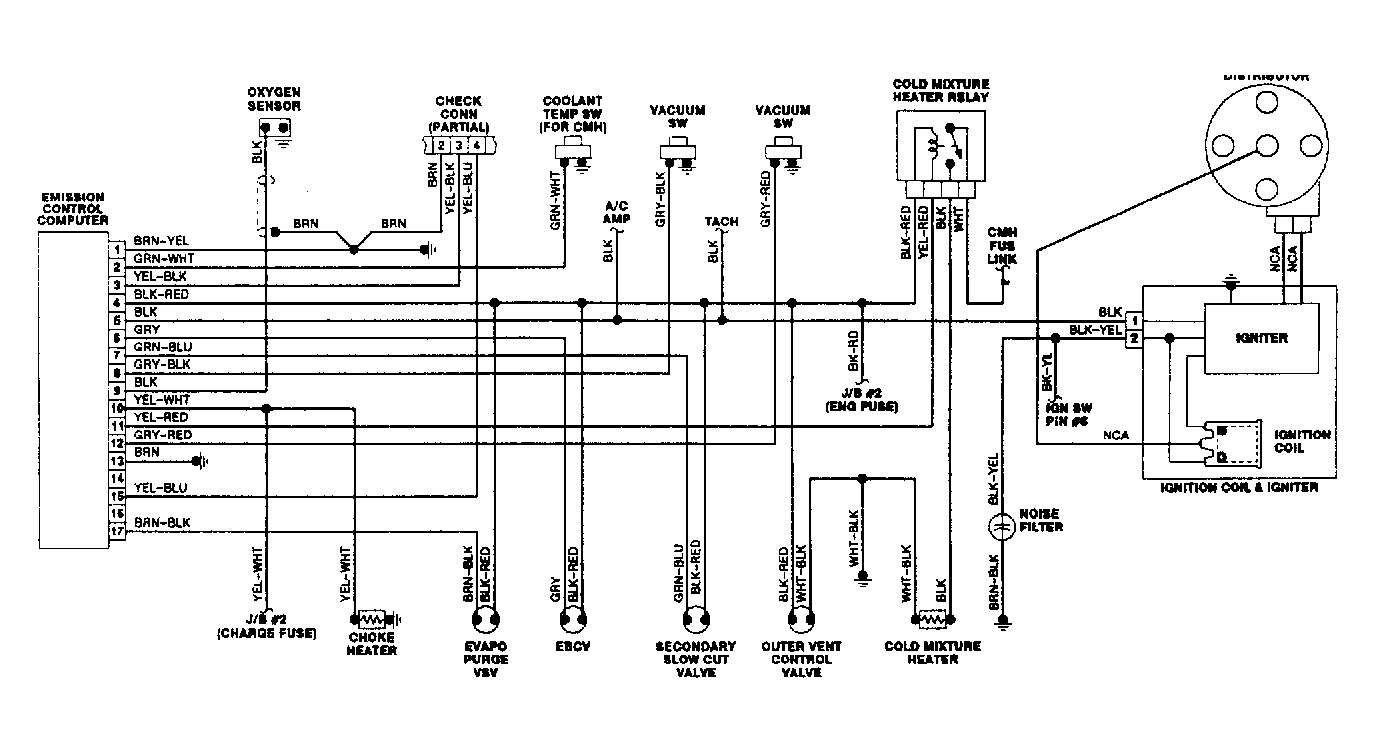

Fig 2: Tercel Wagon Wiring Diagram
G95480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
