Component Location

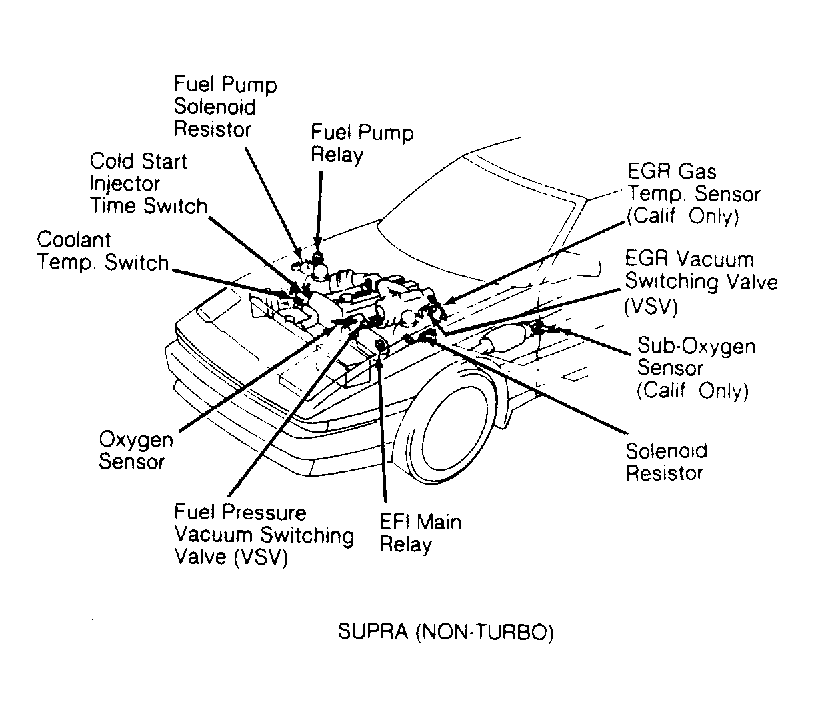

Fig 1: Non-Turbo TCCS Component Locations
G95203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

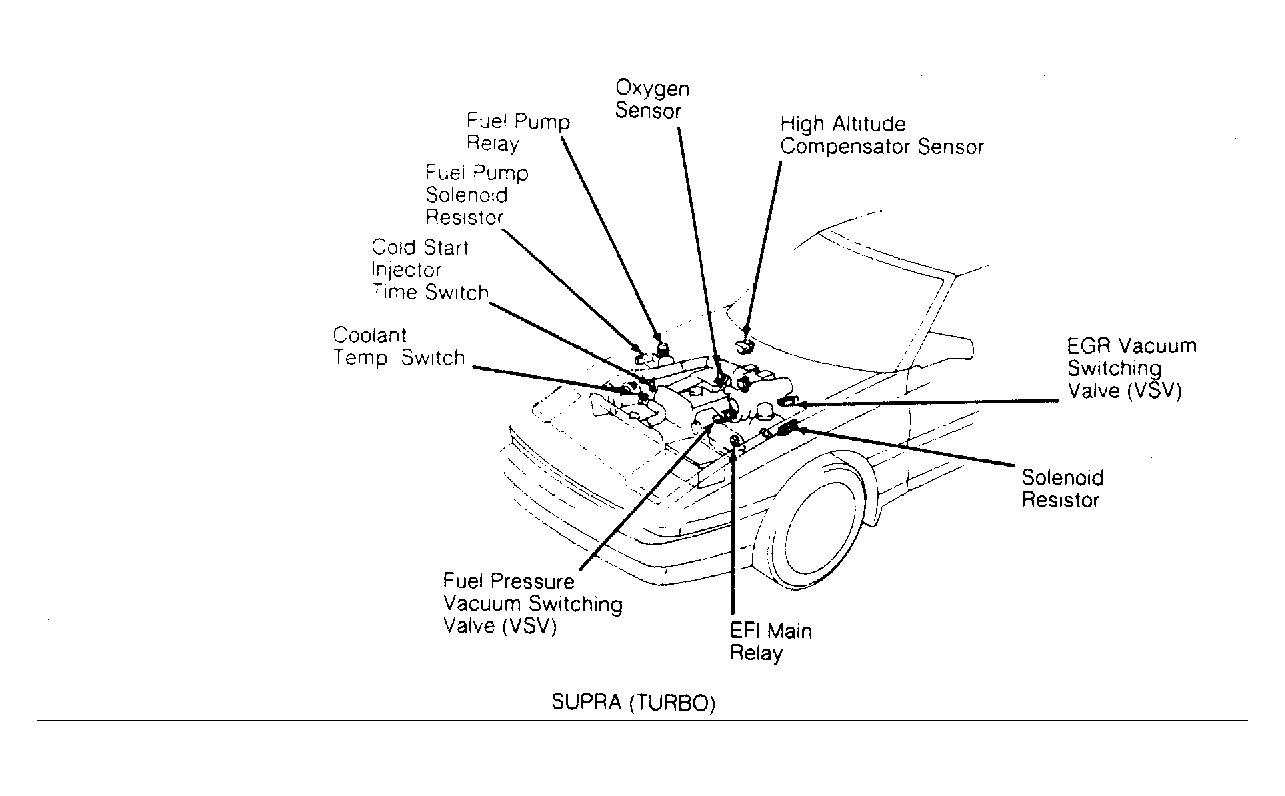

Fig 2: Turbo TCCS Component Locations
G95204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: TCCS Component Locations
G95205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Computer Control System
G95217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
