No. 15 Test, HAC Sensor

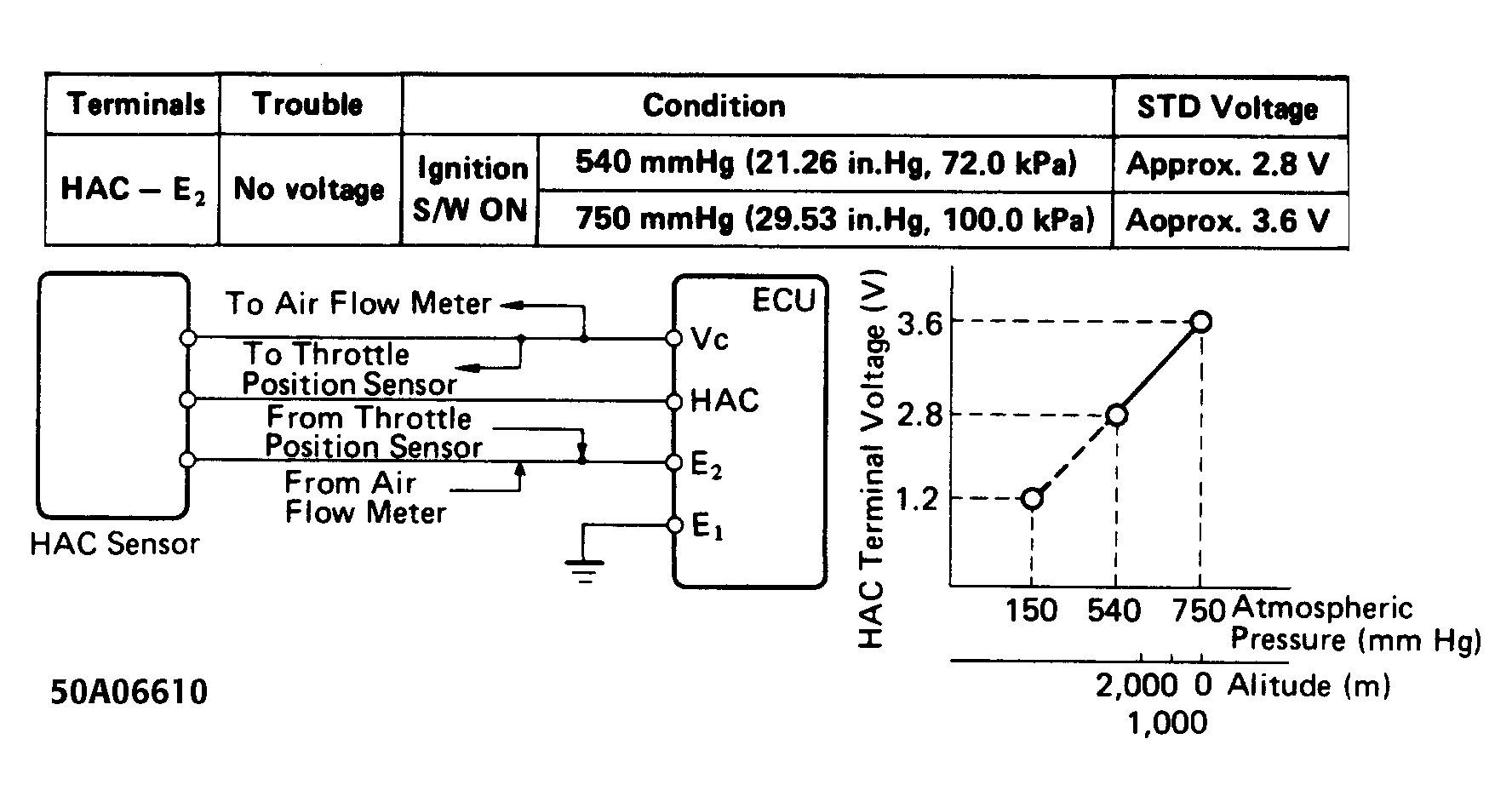

Fig 1: No. 15 Test Schematic, HAC Sensor (Turbo)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

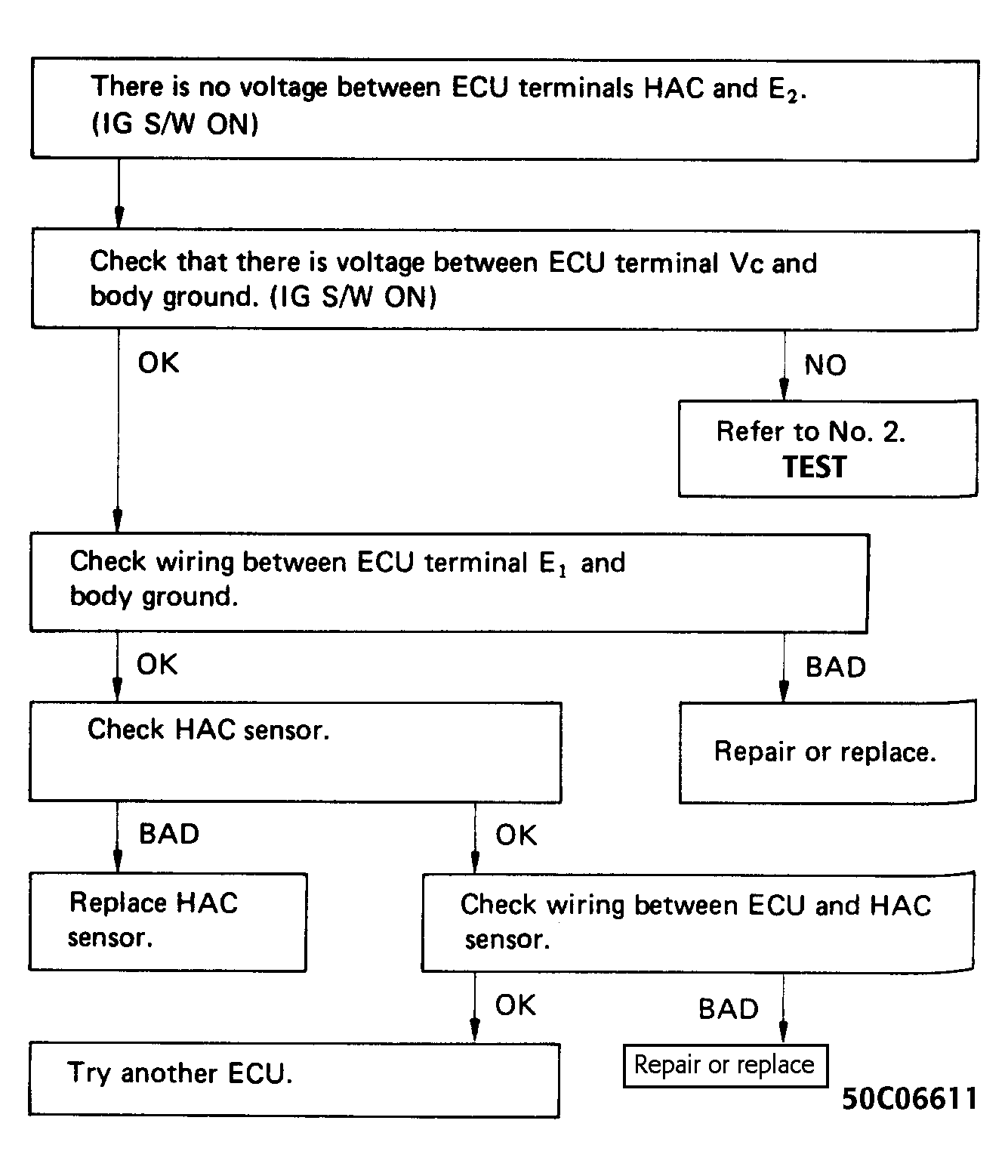

Fig 2: No. 15 Test Flow Chart, HAC Sensor (Turbo)

Fig 3: No. 15 Test, HAC Sensor Check (Turbo)
