No. 6 Test, Coolant Temp. Sensor Signal

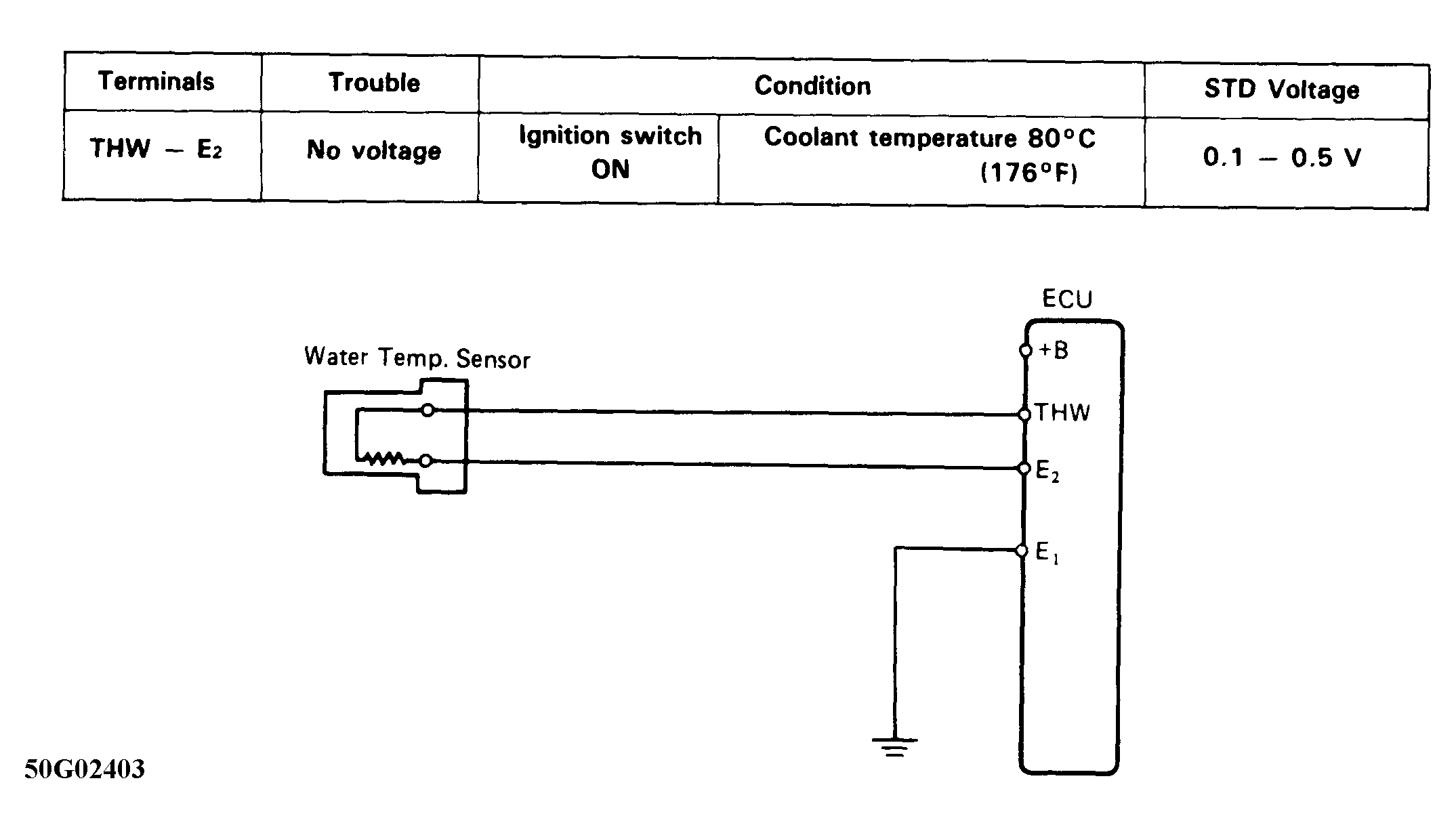

Fig 1: No. 6 Test, Coolant Temp. Sensor Signal, Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

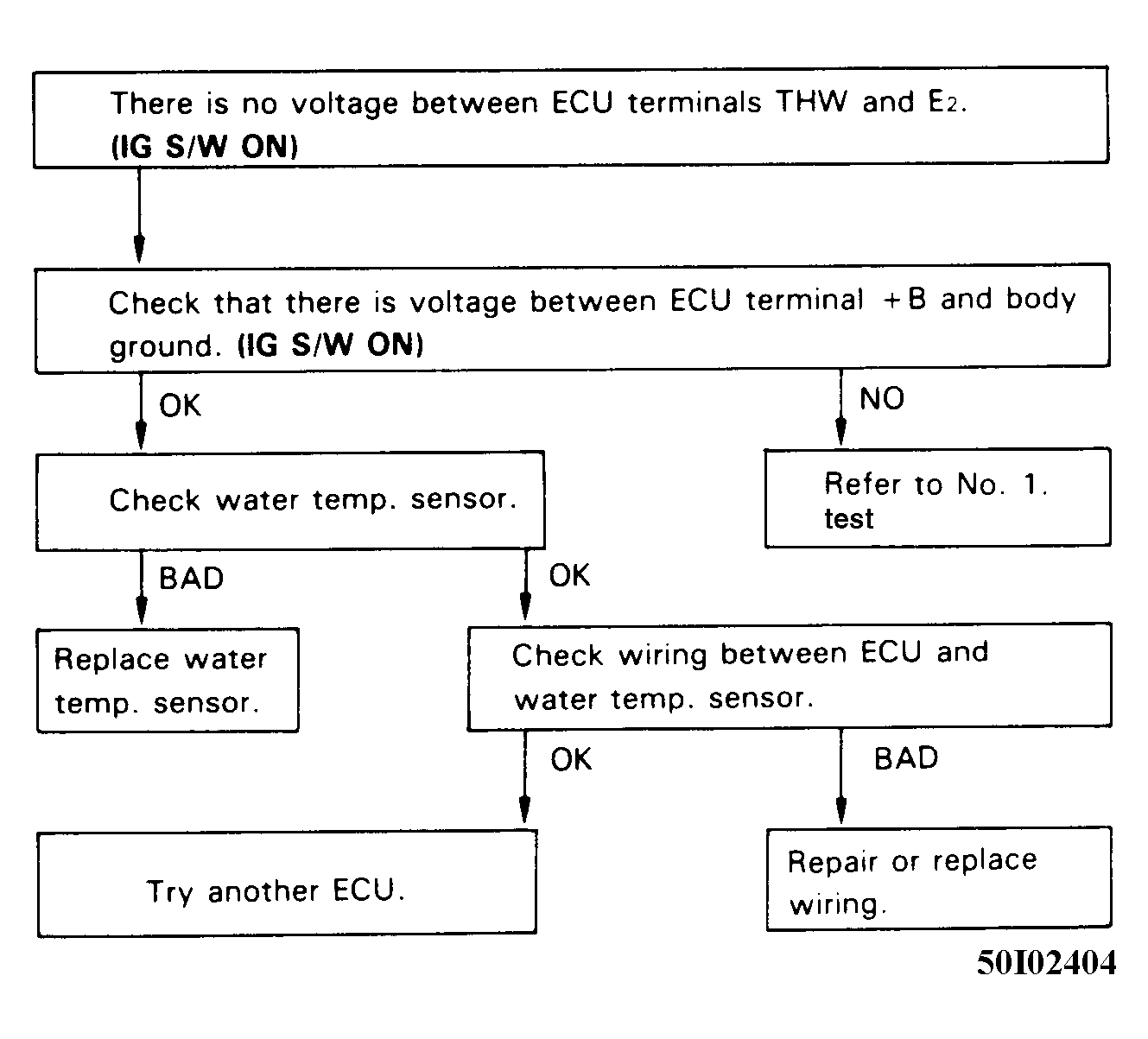

Fig 2: No. 6 Test, Coolant Temp. Sensor Signal, Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
