No. 14 Test, ISC Valve Circuit (V6)

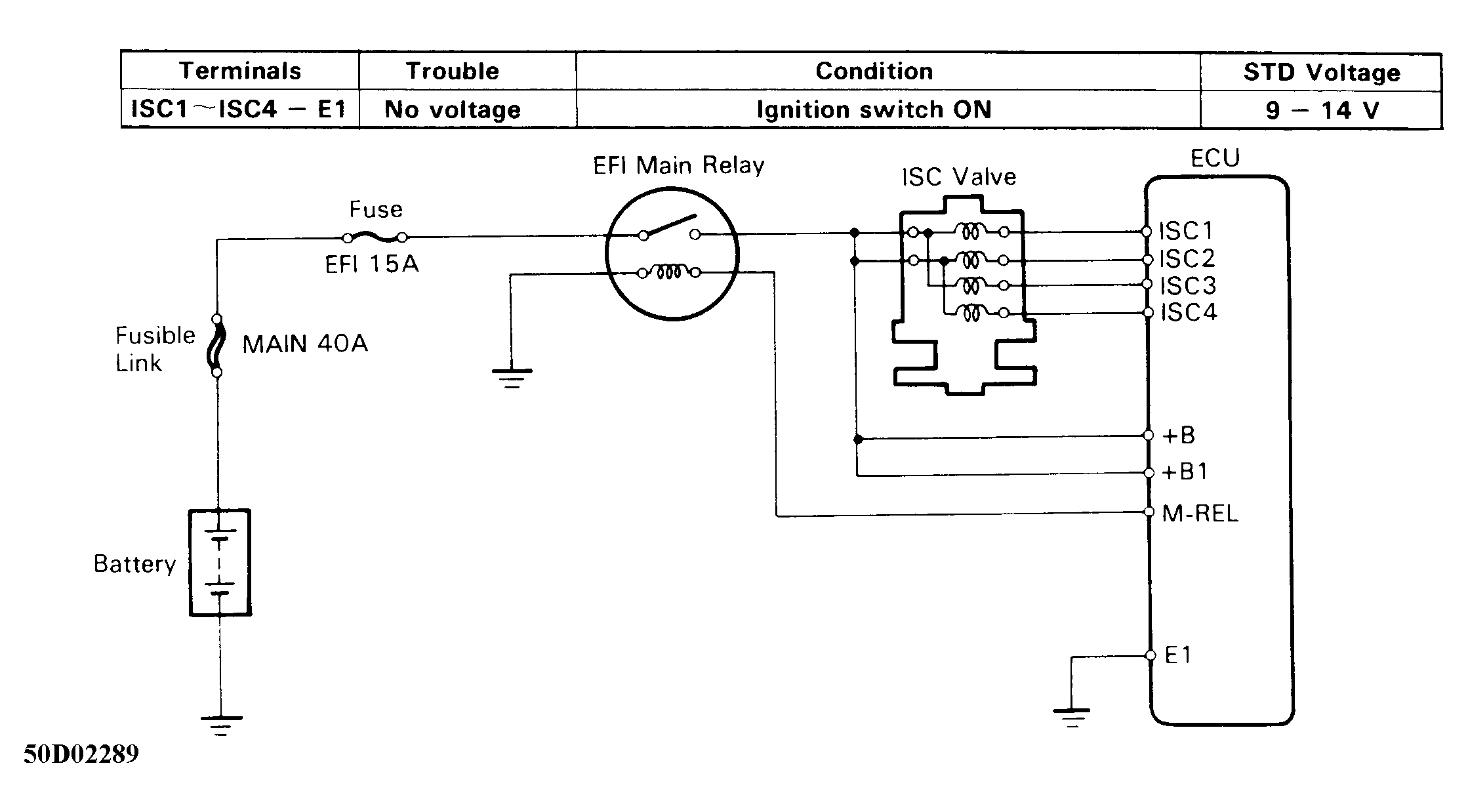

Fig 1: Test 14 Schematic, ISC Valve Circuit (V6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

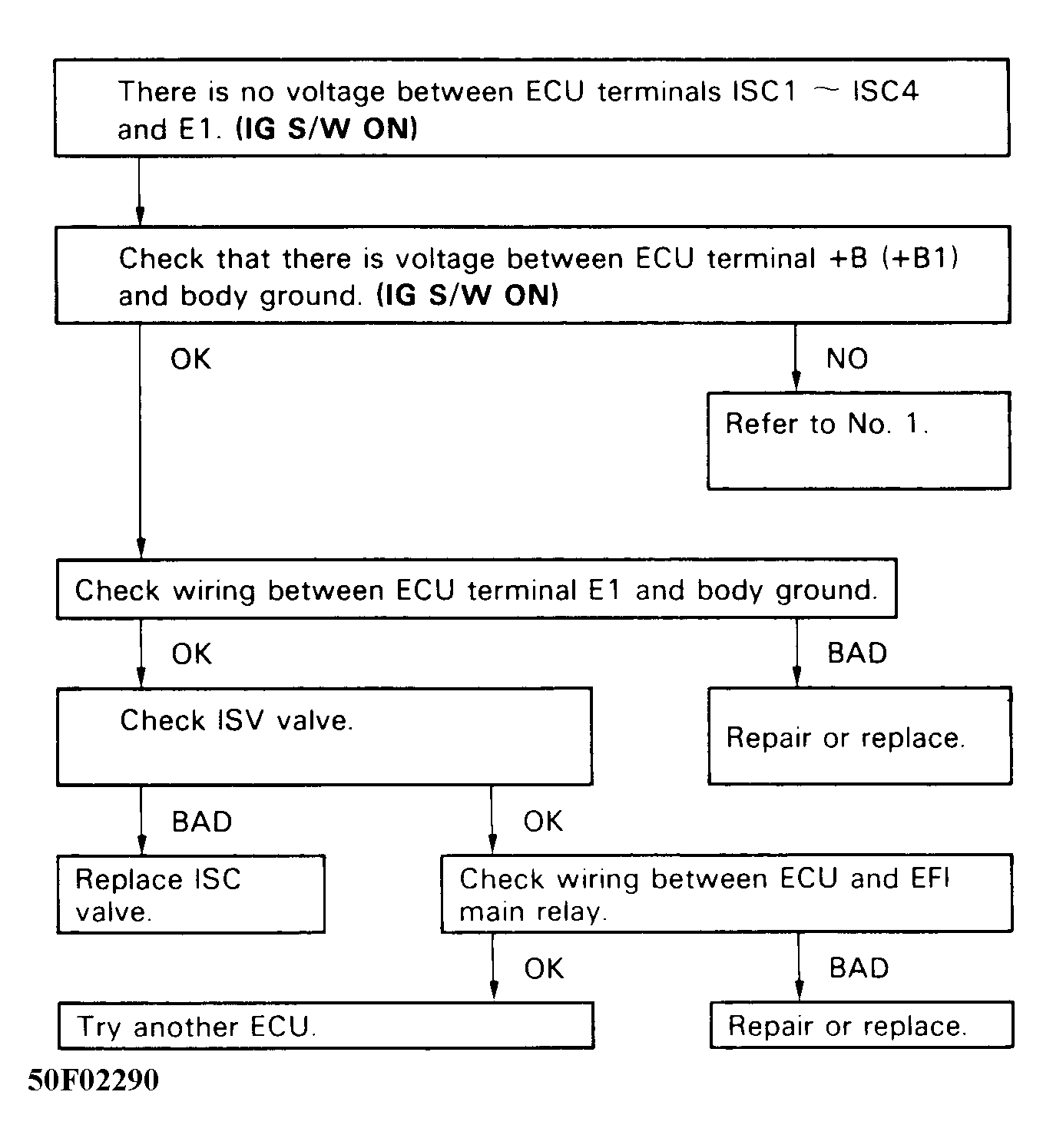

Fig 2: Test 14 Flow Chart, ISC Valve Circuit (V6)

Fig 3: Test 14, ISC Valve Check (V6)
