A/T Temperature Sensor

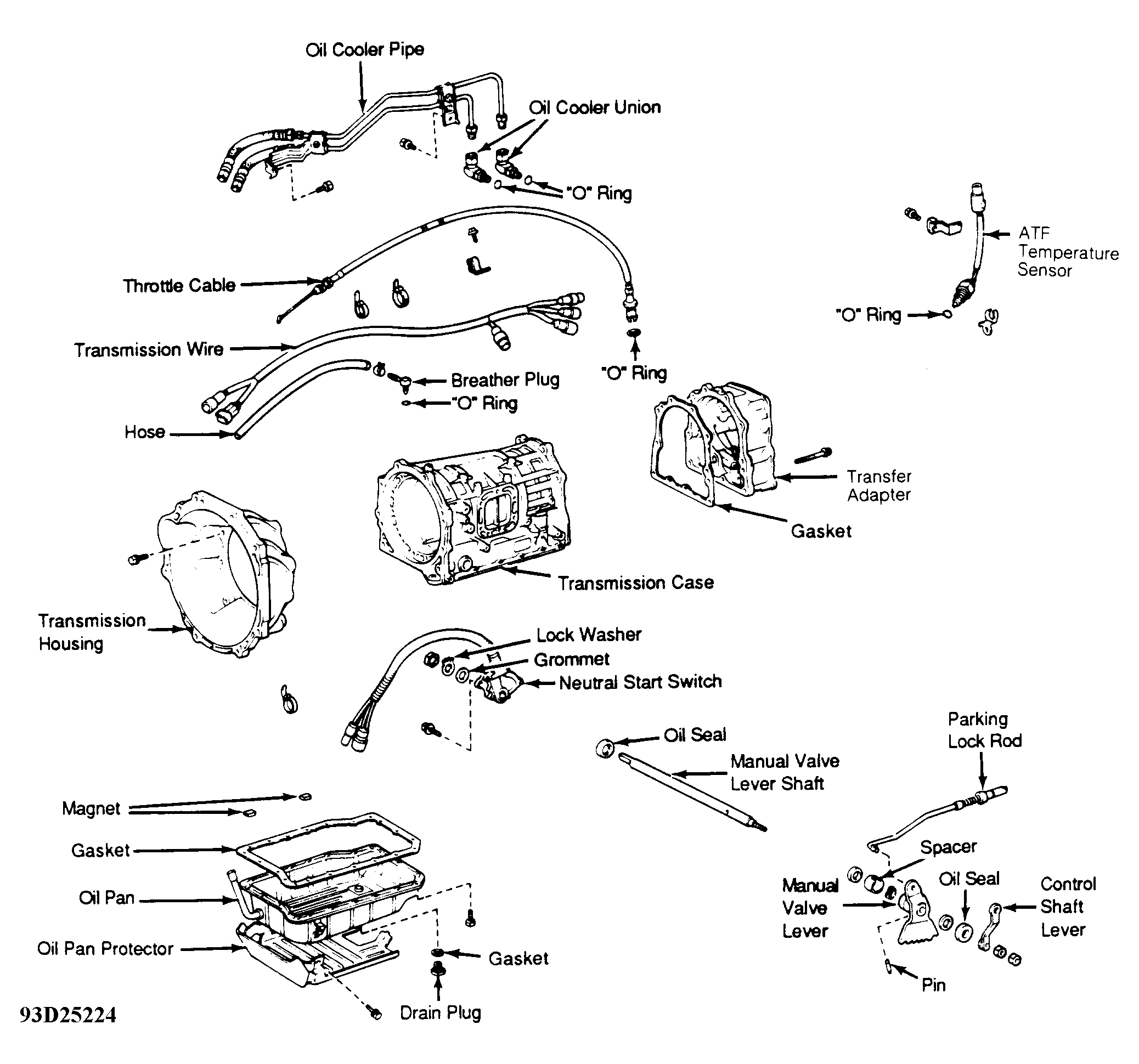

Remove A/T temperature sensor. See Figure. Place sensor in clean ATF. Heat ATF to 325-343°F (145-155°C). Using an ohmmeter, check for continuity between sensor terminal and sensor body. If continuity does not exist, replace sensor.
