Diagnostic Circuit Check

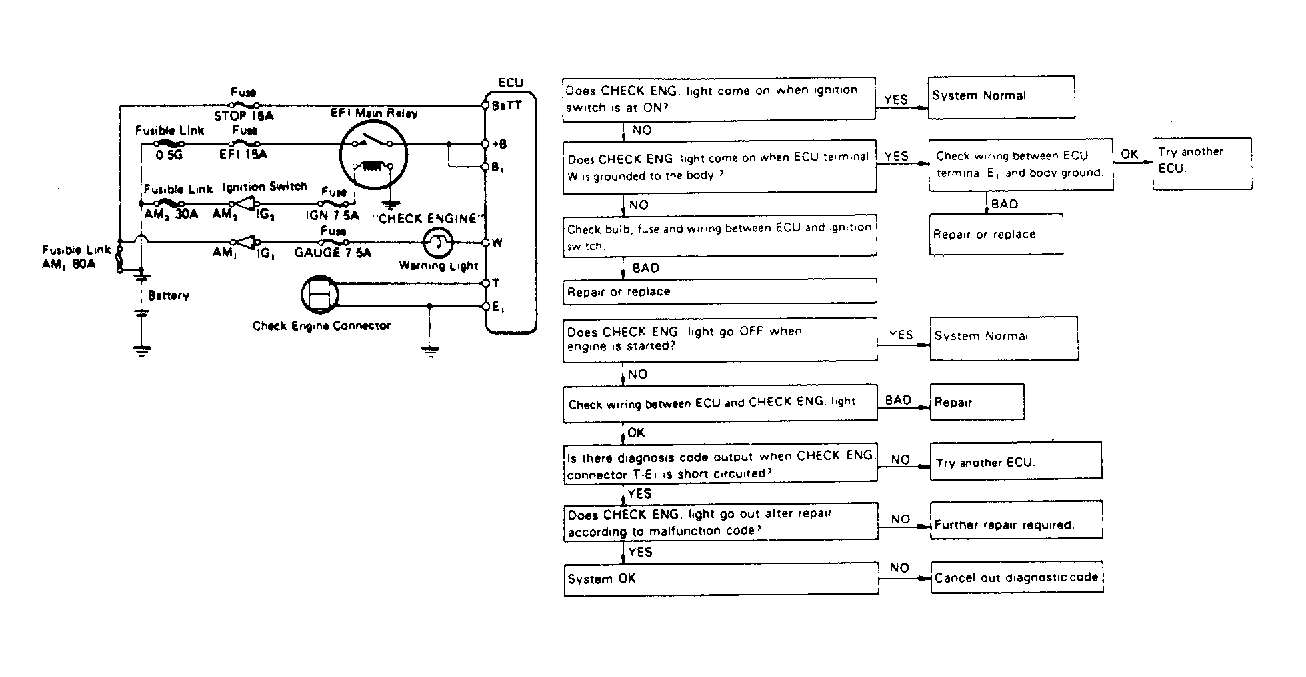

Fig 1: Diagnostic Circuit Check (RWD) (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

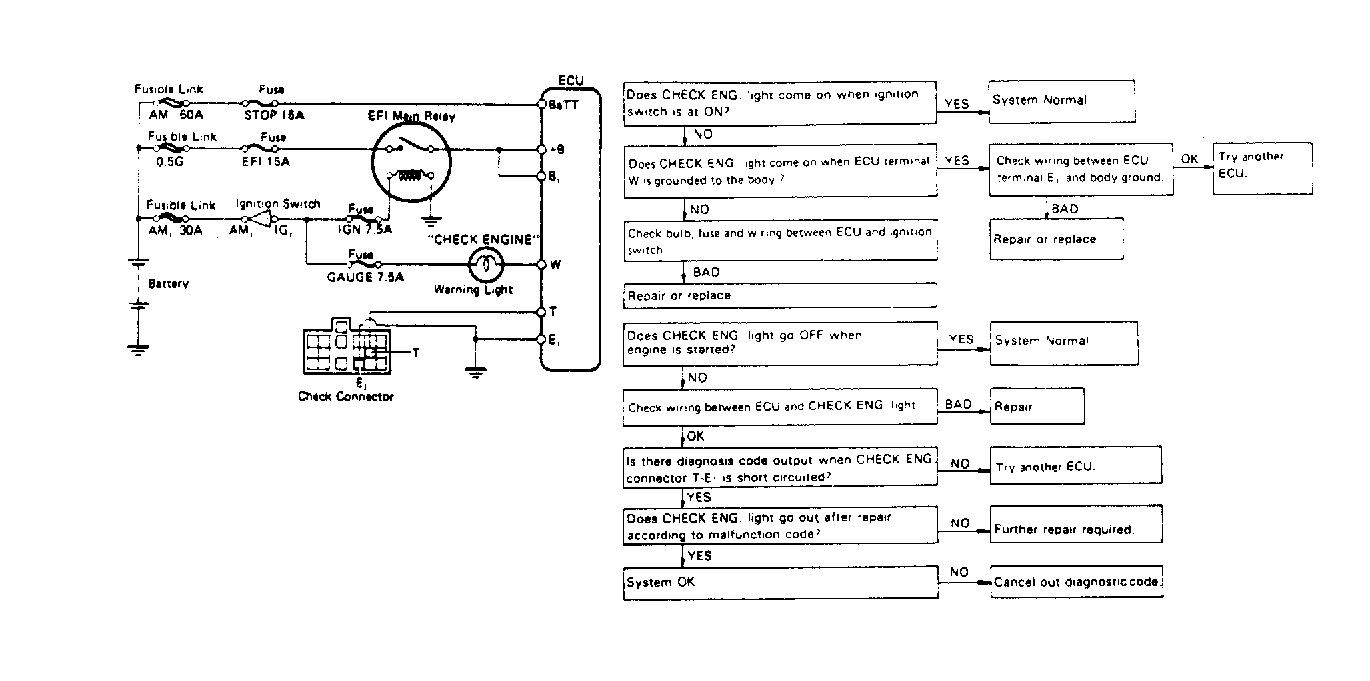

Fig 2: Diagnostic Circuit Check (FWD) (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
