Trouble Code 7 - TPS Sensor & Circuit

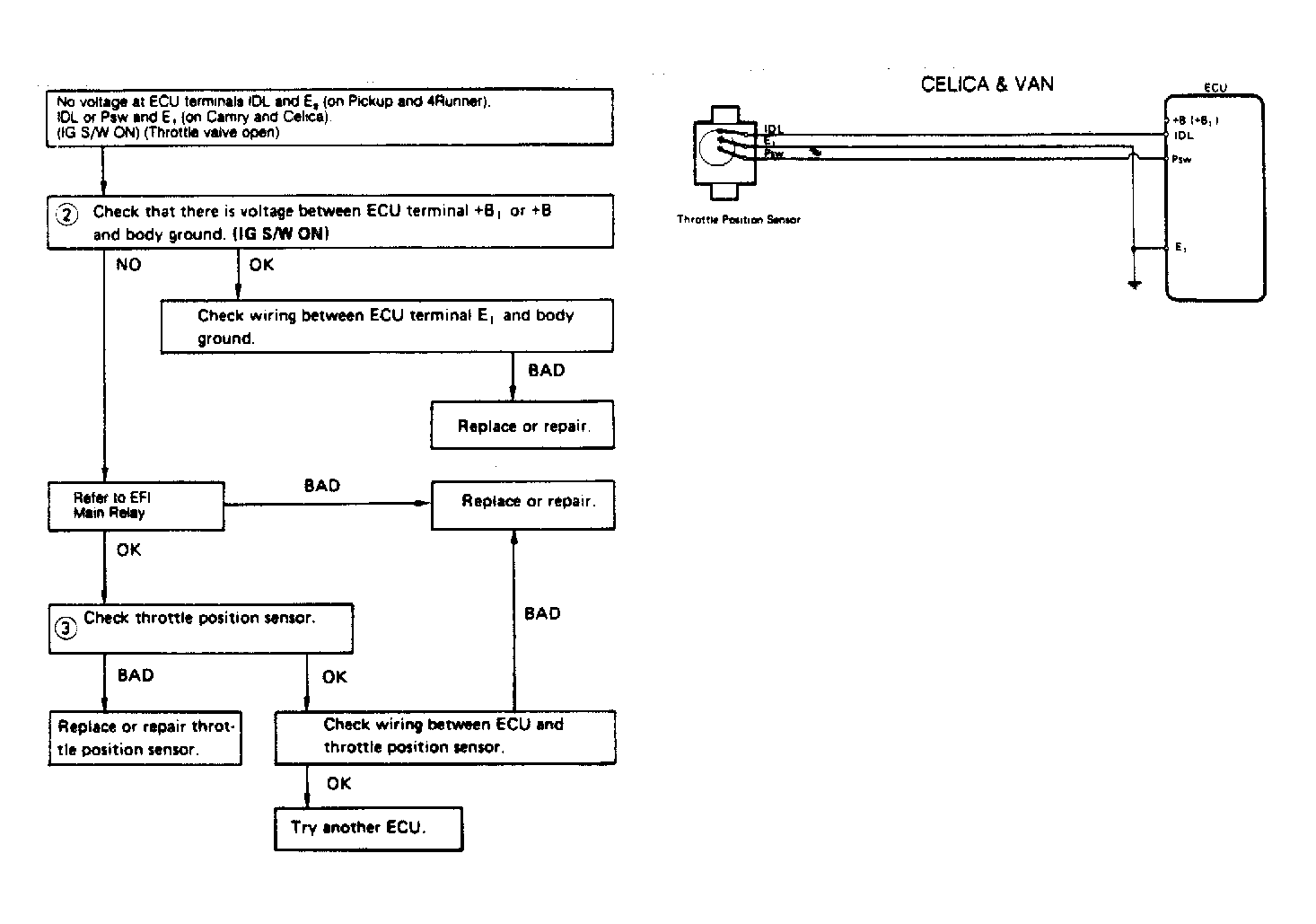

Fig 1: Terminals IDL - E1 & Psw - E1
G48505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
