Wiring Diagrams

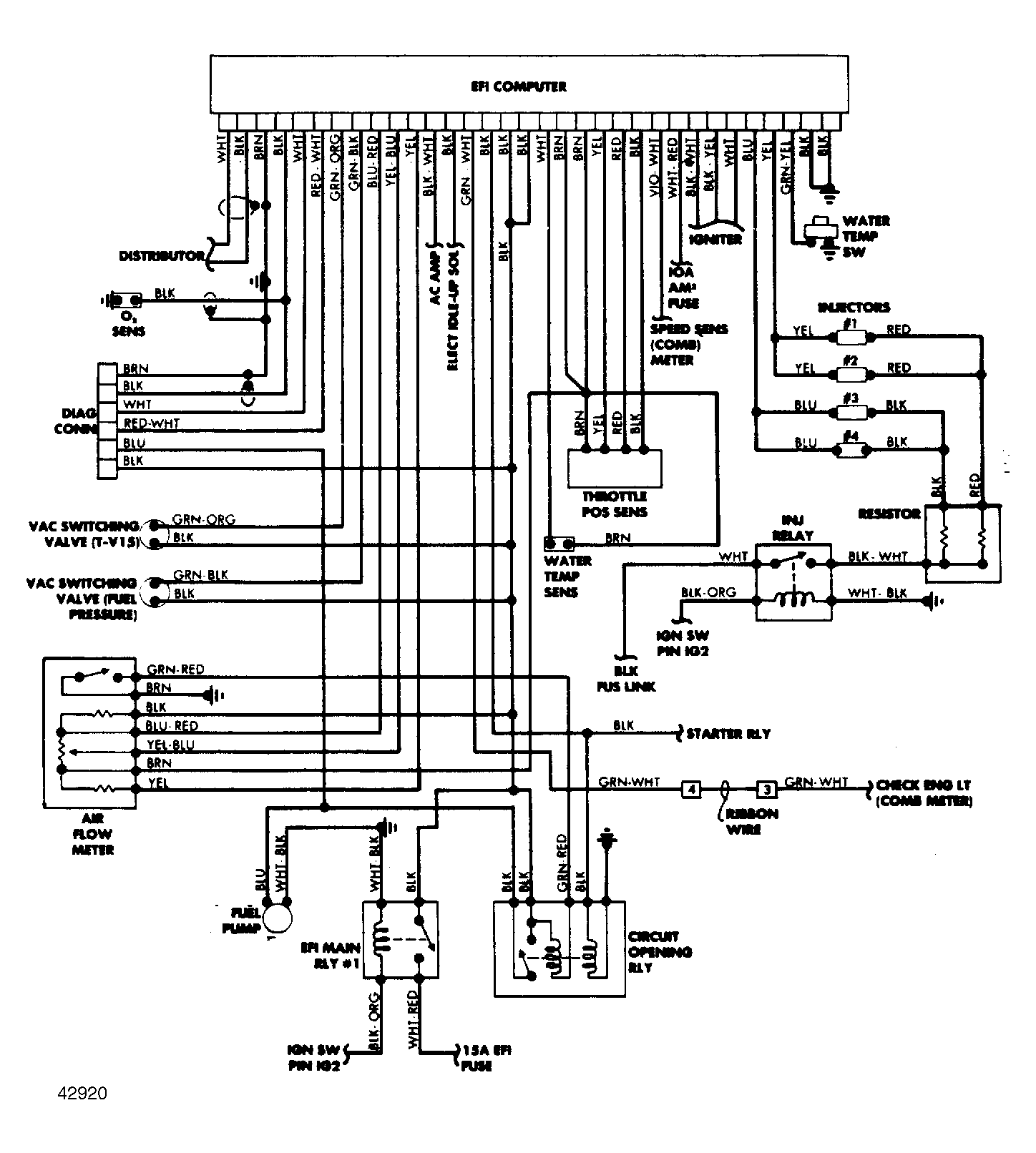

Fig 1: MR2 TCCS Wiring Diagram
G42920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
