Door Lock Control Relay

  1. Disconnect the relay connector. Inspect the connector on the wire harness side. See Fig 1 and Fig 2 .
  2. Apply battery voltage across terminals 2 and 3. Check that the two door lock solenoids operate.
  3. If circuit operation is correct, replace the relay.
Fig 1: Identifying Door Lock Control Relay Connector Terminals
G00112487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

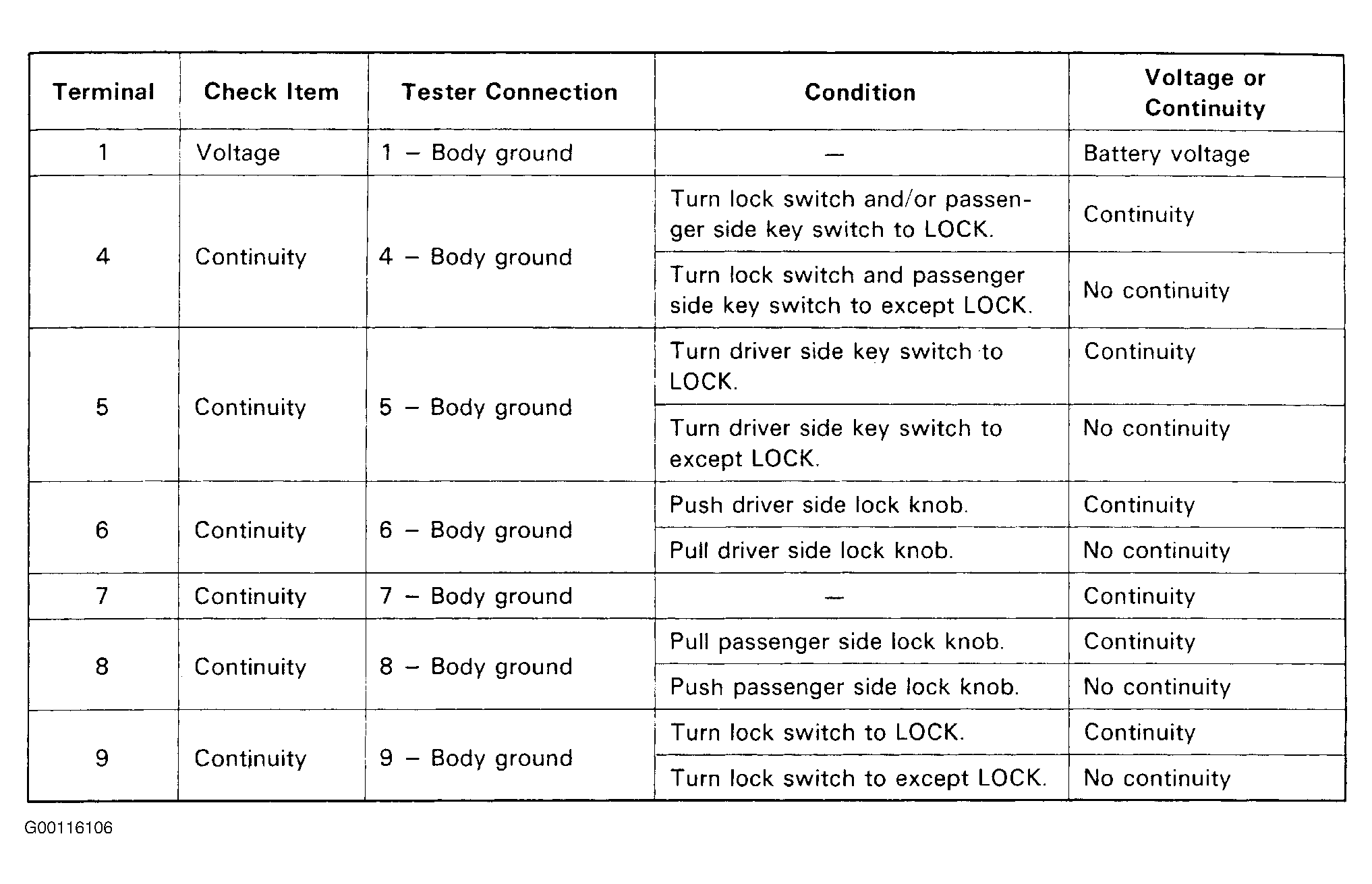

Fig 2: Testing Door Lock Control Relay Operation
G00116106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
