Trouble Code 41 TPS Sensor & Circuit

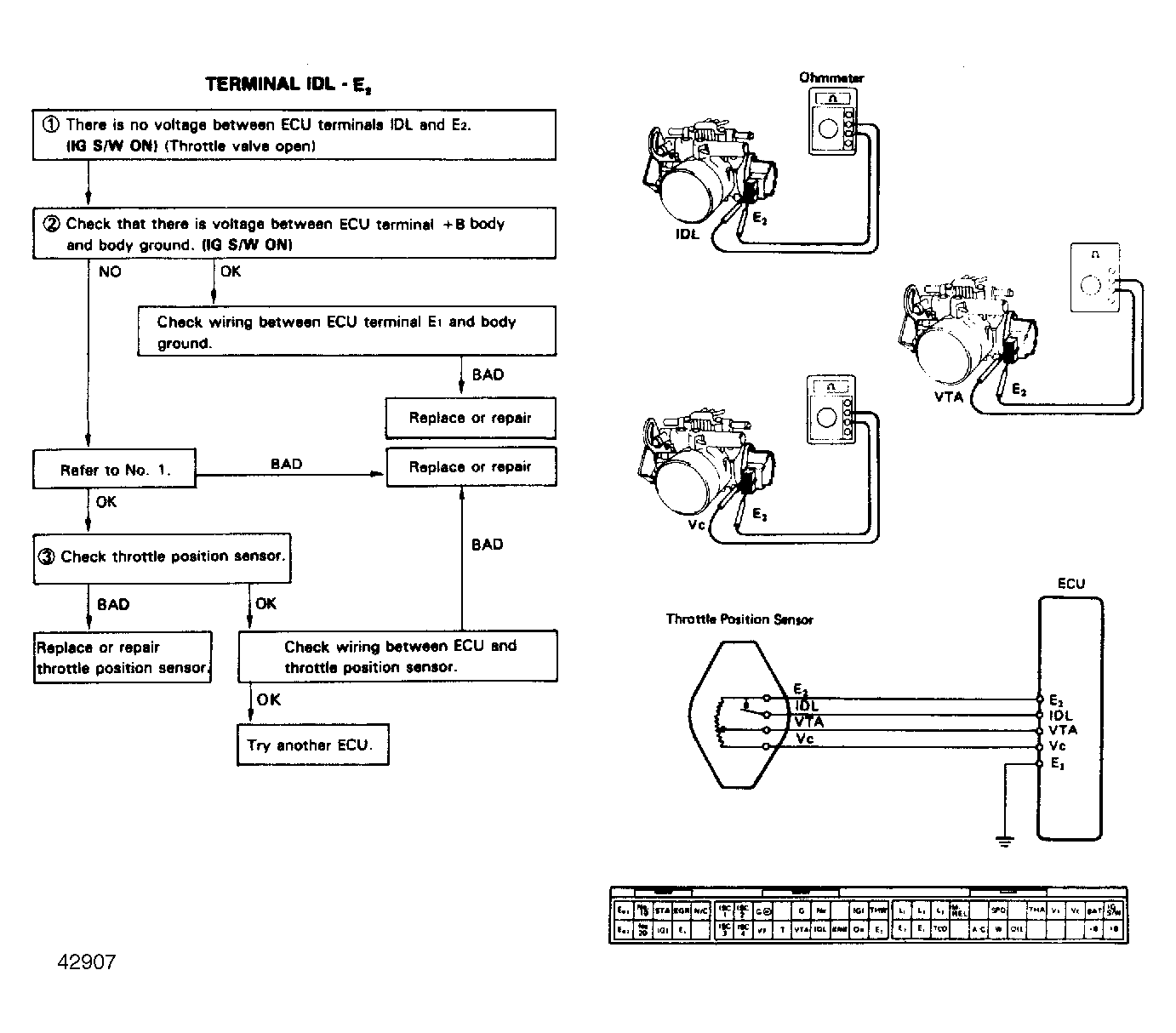

Fig 1: Terminal IDL - E1
G42907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

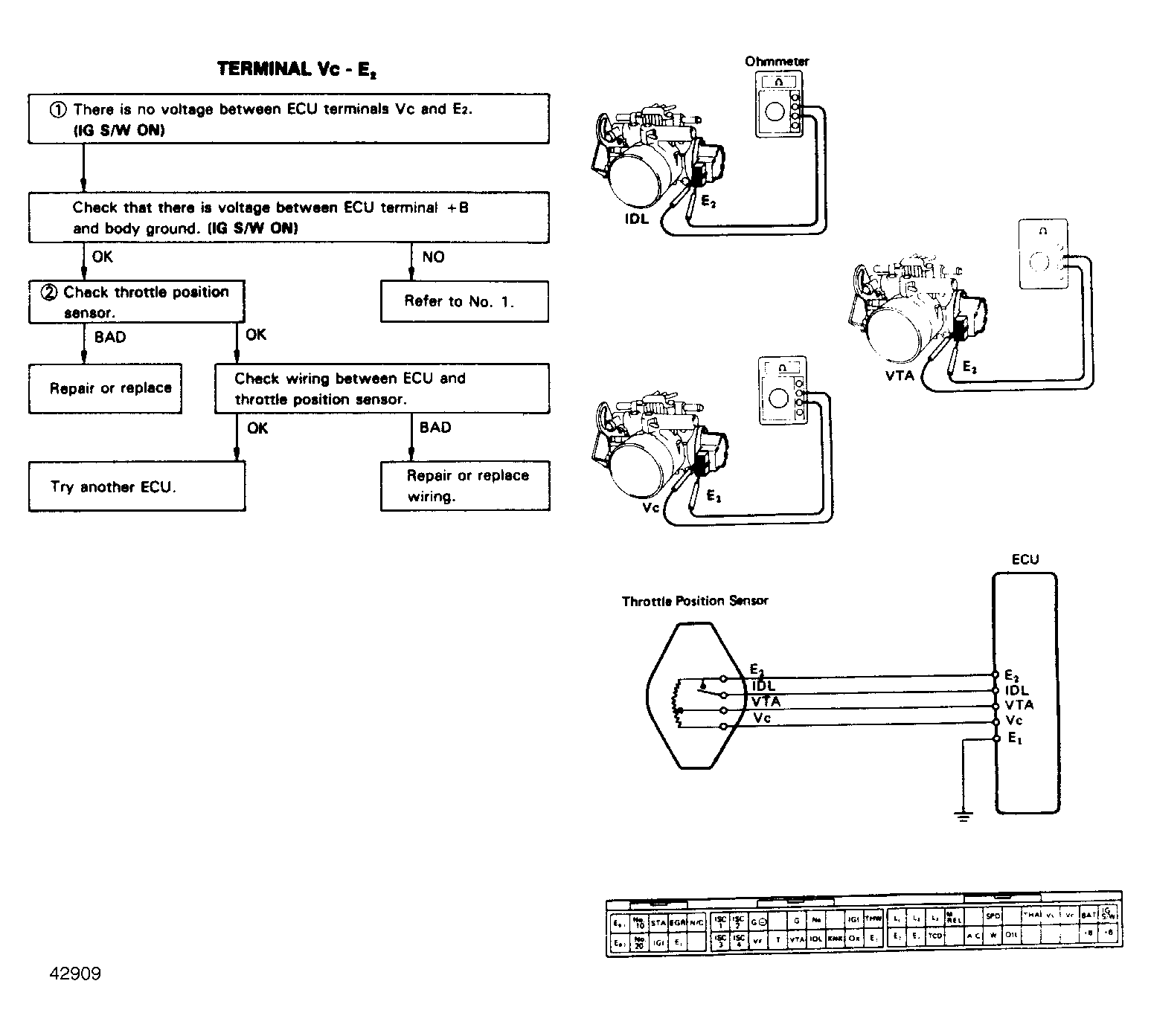

Fig 2: Terminal Vc - E2
G42909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

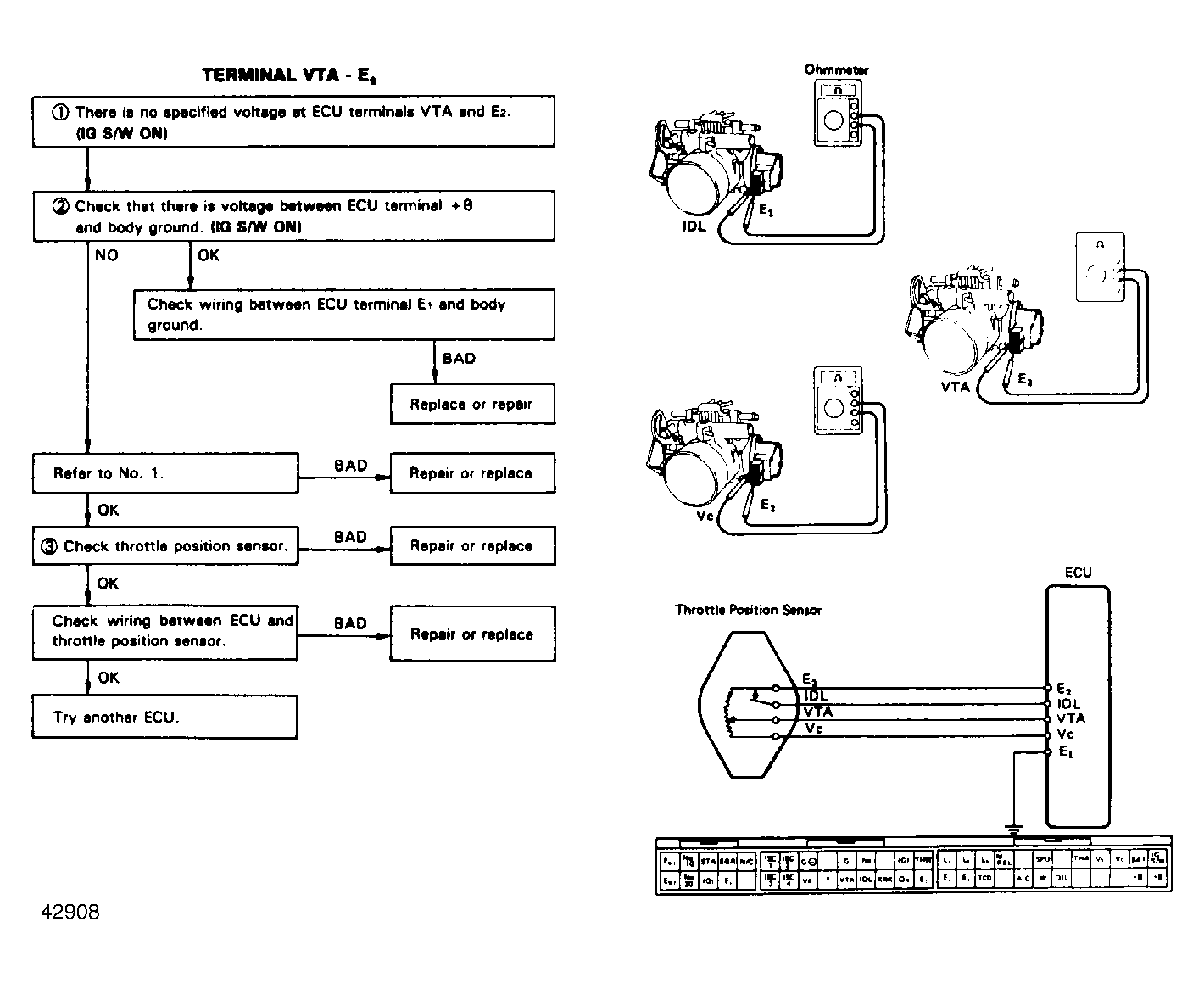

Fig 3: Terminal VTA - E2
G42908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
