Float System

Remove solenoid valve, pump plunger, boot, float pin and float. Remove air horn gasket, needle valve, spring and pin. Remove needle valve seat, power piston retainer, power piston and spring. See Fig 1.

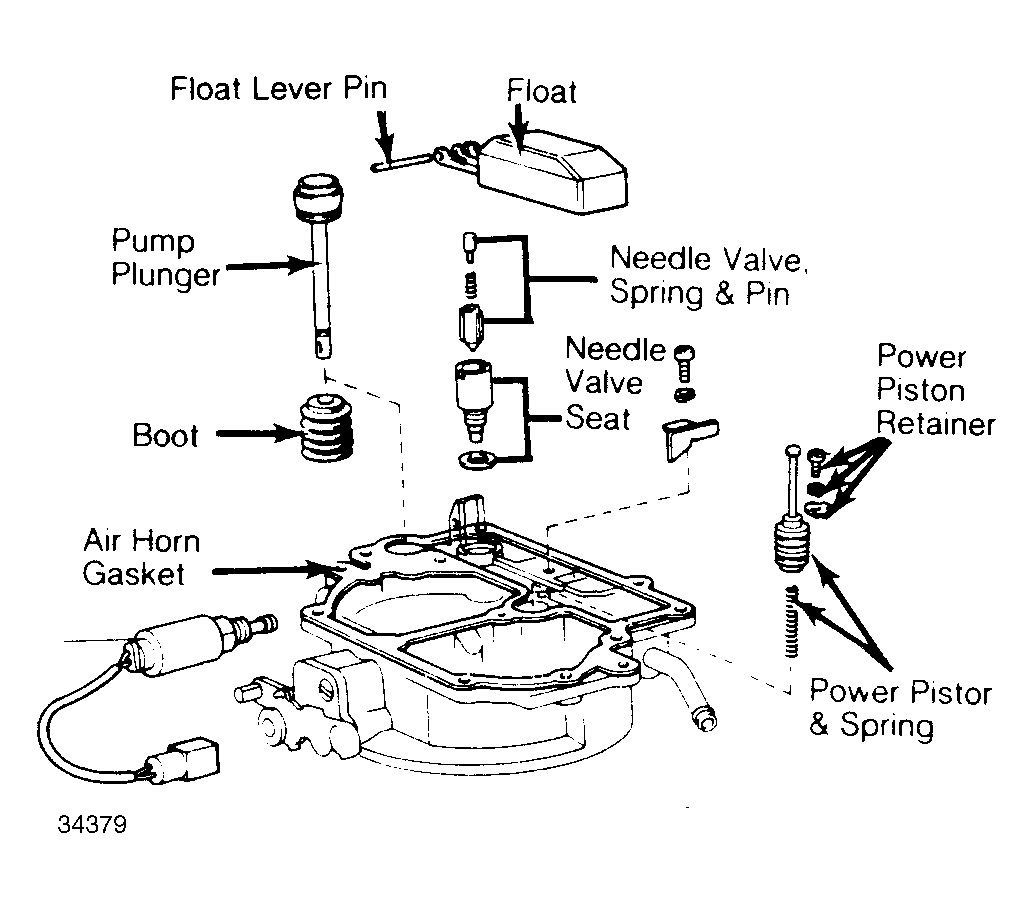

Fig 1: Exploded View of Carburetor Float System
