Glow Plug Control Module: Locations

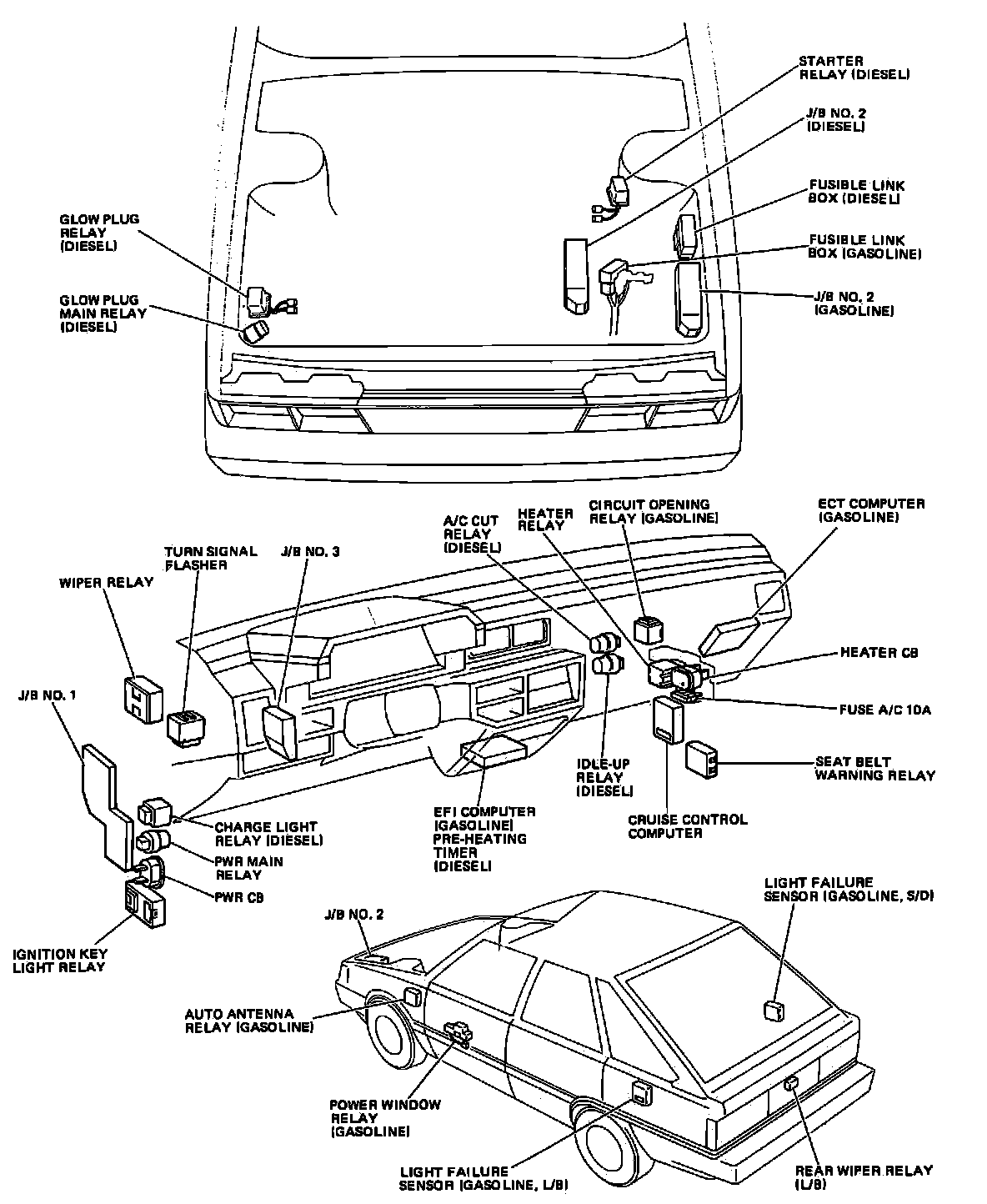

Relay Locations:

Behind Center Of I/P

Applicable to: 1984-86 Models
